8ch 20KM 1310/1550nm Fiber Optical BNC Video Optical Transceiver
1.good Price
2.high-quality
3.low power comsuption
4. CE,RoHs,FCC
8ch Fiber Optical Video Media Transceiver
8-channel functional digital optic video transceiver&receiver applies advanced digital video and optic fiber transmission technology to achieve real-time and synchronous transmission of high quality and non-compression signals on single-core optic fiber. It is a perfect solution for signal transmission over remote distance. With multi function available on one device, it makes fiber optic transmission much easier and less cost among kinds of signals transmission. Plug-and-play design, no spot adjustment, imported components, and international standards of optical and electrical interface offer great convenience and stability to customers.
1. 8/10 bits digitally encoded video transmission
2. NTSC, PAL, and SECAM auto compatible
3. Surface mount technology
4. WDM technology
5. LED indicators for monitoring of system operating status
6. Immune to EMI, RFI
7. Surge protection against transient surge and over voltage
8. Automatic re-settable fuses, short circuit protection
9. FC,ST,SC Optical Connectors
Alarm:

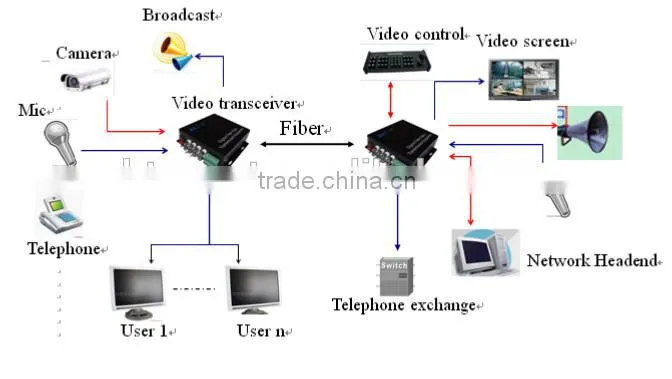

1.Applications:supporting multi-channel data, compatible with all kinds of Keyboard, Matrix agreements,DVR ,alarm data industrial application transmission
2.Interface:standard industrial connecting terminals
3.Controlling Equipments: PTZ decoder, Keyboard ,data interface of Matrix, High speed dome camera, industrial equipments
4.Interface Signals: RS-485(2 lines),RS232,RS422 and so on
5.Communication speed rate: 0~512Kbps ( speed autoadaptation, no need to adjust)
Data:
1.Interface: standard industrial connecting terminals ( Alarm, Switch, Remote control )
2.Alarm/switch input signals: any active or passive alarm/switch input, supporting TTL, RS-232/422/485 and passive switch
3.Alarm/switch output signals: any active or passive alarm/switch output, supporting TTL, RS-232/422/485 and passive switch
4.Current: Low current, High-current and high-voltage can use above 1A/12V
Ethernet:
1.Interface Speed Rate: 10/100Mbit/s Auto-adaptation, the default is 100MBPS working condition
2.Interface Type: RJ-45
3.Supporting Agreements: IEEE802.3U 100Base-TX, 10/100M
4.Communication Working format: Full-duplex or half-duplex
Telephone/Switch:
1.Audio Bandwidth:8KHz
2.Way of encoding and decoding:PCM
3.Signal and order controlling:Supporting any kind of signals and orders
4.Communication Terminals supported by the interface;normal telephone and group telephone,PBX,PSTN
5.Way of connecting:point to point (telephone to telephone or telephone to swith)
1.Item shipped in 3-15 working days after payment is received depends on the quantity of the order.
2.Item shipped by sea and air or UPS,FedEX,DHL and others, depending on size and weight of total order.
3.We accept T/T, L/C, Western Union, Money Gram and Paypal, just choose what you like.
If you have interest, Call me for the price! Or add online skype: Sophinesnow2005
