Digital Audio to Analog Video Converter
- shenzhen
- T/T Credit Card PayPal
You May Like
-
Transmitter Audio Video Media Convereter 4 Channel
-
4-ch Video Converter for Video Optical Transmission System
-
4ch Camera Optical Transmitter Receiver
-
4-ch Fiber Optic Audio Video Transmitter Receiver
-
Digital Audio to 5V1A Converter
-
CCTV 4Channel Fiber Optic Video Transmitter and Receiver 8-bit Digital Security System
Product Details
| Place of Origin | Guangdong, China | Brand Name | BTON/OEM | |
| Model Number | BT-4V1DF-T/RS |
Product Description

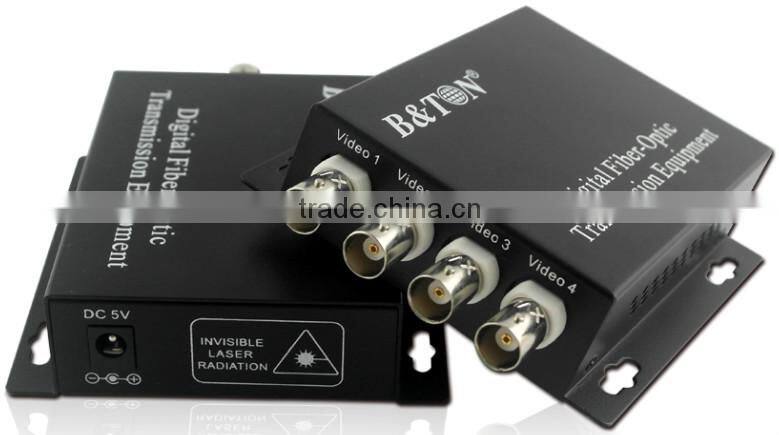

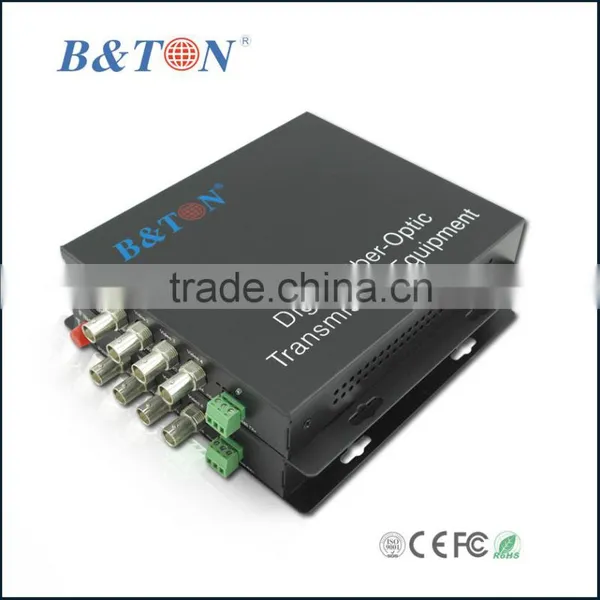

Digital Audio to Analog Video Converter
1. Best Solution with good chipset;
2. BrandNew module;
3. High-quality metal casing;
4. Good quality of power supply ( working more than 3-4 years);
5. Professional Package;
6. 3 years warranty.
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
4 Channel Video Optical Converter
Our fiber optical video transmitter and receiver can simultaneously transmit 1-72 channels of 8-bit digitally encoded broadcast quality video / reverse or bidirectional data / unidirectional or bidirectional audio / Ethernet / Telephone / Dry contact over one single mode or multimode optical fiber. These multiplexers are typically used in applications where the cameras have PTZ capabilities. Plug and Play design ensures the ease of installation and operation. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation ,which is suitable for different working environment.
Ø Features
- 8-bit digitally encoded and non-compression broadcast quality video transmission;
- Directly compatible with NTSC, PAL, and SECAM CCTV camera systems and support RS-232, RS-422, and RS-485 data protocols;
- Support any high-resolution video signal;
- Automatic compatible PAL, NTSC and SECAM video system;
- Power supply and other parameter state indication, which can monitor the operation condition of system;
- Support no-damage regenerative trunk of video;
- Constant input optical power, and large dynamic range ,no Electrical or Optical Adjustments Required;
- Special ASIC design;
- Hot-swap function;
- Stand-alone type or card-type installed in 19’’ 2U or 4U rack-mount chassis;
Ø Specification
Video Port | 4 | |
Video Interface | BNC | |
Video bandwidth | 8 MHz | |
Automatic compatible video system |
PAL,NTSC,SECAM |
|
Video in/output impedance | 75 Ω(unbalance) | |
Video in/output Voltage | 1.0Vp-p,max 1.5Vp-p | |
Video signal-to-noise ratio | ≥65dB | |
Differential gain | <1% | |
Differential phase | <0.7° | |
Fiber-optic Specification | Connector: FC/ST/SC Transmitter: Tx Power:-15 ~ -8dBm Sensitivity :≤-35dBm Receiver: Tx Power:-15 ~ -8dBm Sensitivity :≤-35dBm Transmission Distance: 2km(mm), 20/40/60/80/100km(sm) Operating Wavelength: Tx1310/Rx1550(Transmitter),Tx1550/Rx1310nm(Receiver) | |
Ø Application
- Intelligent Transportation System
- Connection of Sub-network for Surveillance Center
- Public Security Surveillance
- High Way & Toll Station Surveillance
- Industrial Closed Circuit Television Surveillance

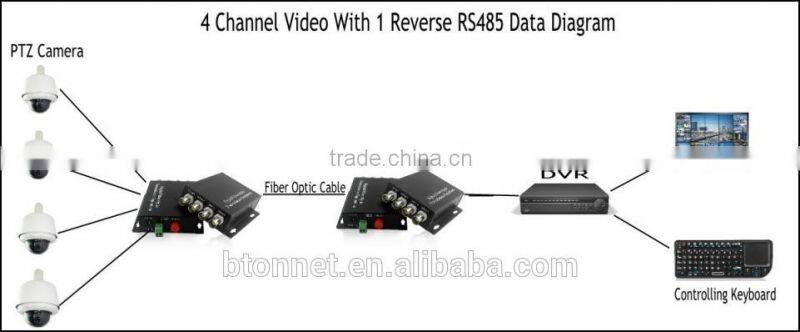

Ø System design
Ø Device Dimension

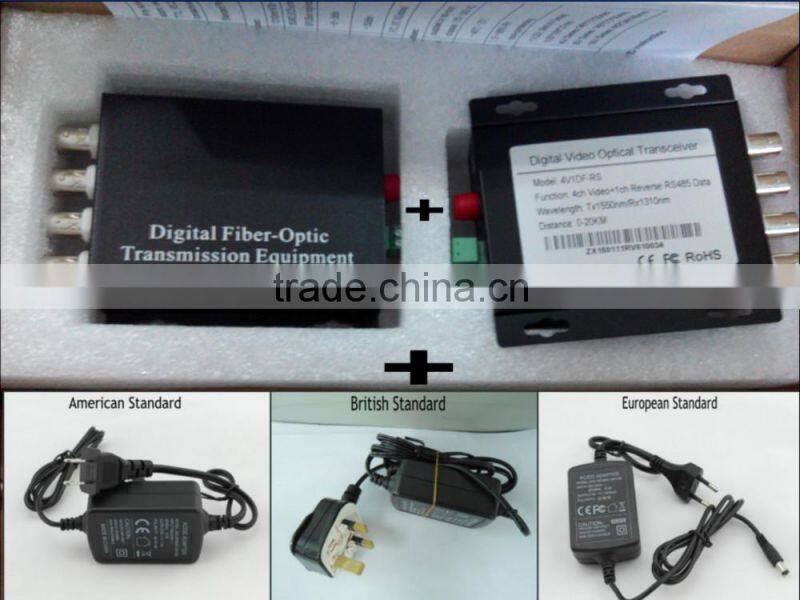

Ø Package (1 transmitter + 1 Receiver + 2pcs UK/EU/US 5V1A power supply)
Shenzhen B&TON Technology Co., Ltd is one of the powerful and high-tech companies specialized in researching, manufacturing and marketing of optical and fiber communication technologies. Our major products are media converter,Fiber Switch, digital video optical transmission systems and Optical Transceiver Modules, Patch cords,.
OEM and ODM
OEM/ODM order is available.
Warranty:
All the Fiber media converter have been through functional test and aging test. We provide 3 years warranty for all the media converter from the date of shipment.
Shipment:
Payment: TT, Western Union, Paypal, LC, Escrew
Ø Order Information
| Part Number | Description (Single Fiber,Single mode, FC/SC/ST, 20KM) 1-72 Channels Video(1ch, 2ch, 4ch, 8ch, 16ch, 32ch, 64ch, 72ch) Data(RS485/422/232),audio, Ethernet,telephone, contact closure. | Unit |
| BT-1VF-T/RS | 1ch forward video | pair |
| BT-1V1DF-T/RS | 1ch forward video,1ch forward/reverse RS485 data | pair |
| BT-2VF-T/RS | 2ch forward video | pair |
| BT-2V1DF-T/RS | 2 forward video, 1 forward/reverse RS485 data | pair |
| BT-4VF-T/RS | 4ch forward video, Mini type | pair |
| BT-4V1DF-T/RS | 4ch forward video, 1ch forward/reverse RS485 data, Mini type | pair |
| BT-4VF-T/R | 4ch forward video | pair |
| BT-4V1DF-T/R | 4ch forward video, 1ch forward/reverse RS485 data | pair |
| BT-8VF-T/R | 8ch forward video | pair |
| BT-8V1DF-T/R | 8ch forward video, 1ch forward/reverse RS485 data | pair |
| BT-16VF-T/R | 16ch forward video | pair |
| BT-16V1DF-T/R | 16ch forward video, 1ch forward/reverse RS485 data | pair |
| BT-16VF-T/RS | 16ch forward video, Mini type | pair |
| BT-16V1DF-T/RS | 16ch forward video, 1ch forward/reverse RS485 data, Mini type | pair |
