Home > Products > Analog Video Fiber Converter > 8 ch Video Over Fiber Optical Converter for Security System

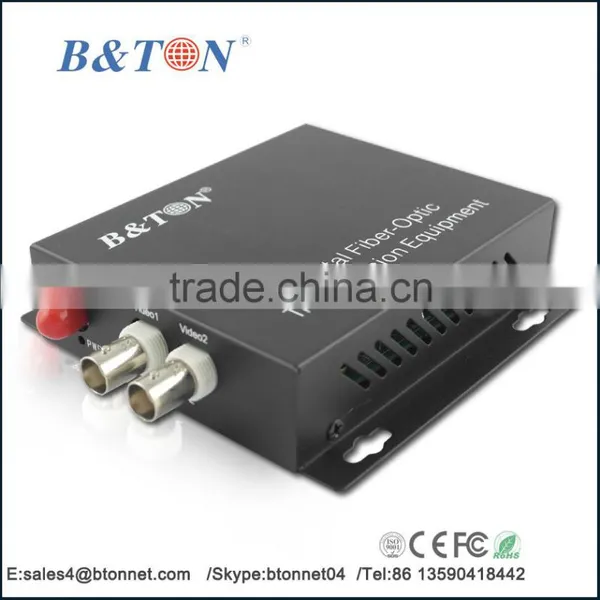

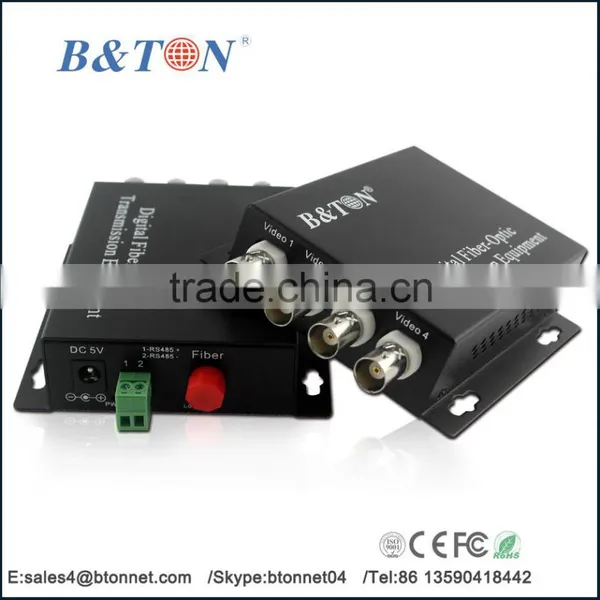

8 ch Video Over Fiber Optical Converter for Security System
US$ 1 - 30
/ Pair
1 Pair(Min. Order)
- Shenzhen
- T/T Money Gram Credit Card PayPal
You May Like
-
8 Positive Video+1 Return Data Fiber Optical Video Converter/8V 1D Digital Video Fiber Optical Converter/video Converter Digital
-
Fiber Optical Audio Video Converter, With Data ,telephone,ethernet,1/2/4/8/16/32 Channels
-
1-channel Video+audio+data+Ethernet+telephone+switch Value Fiber Optic Video Converter
-
1/2/5/8/16/32 Channels Fiber Optical Converter Audio Video ,Video/Audio/Data/Ethernet Optical Fiber Transceiver
-
1/2/4/8/16 Channels High Quality Audio Data Video Over Fiber Converter
-
1 / 2 / 4 / 8 / 16 Channel Video Optic Fiber Digital to Analog Converter Quality Choice
Product Details
| Place of Origin | Guangdong, China | Brand Name | BTON | |
| Model Number | BT-1V1DF-T/R |
Product Description
Digital Fiber Optical Video Converter ,1/2/4/8/16/32 Channels ,Audio Data Ethernet
| Specification |
| Video |
| Non-compression and no-distortion |
| Video standards: PAL/NTSC/SECAM |
| Frequency Response: 8MHz |
| Video connection: BNC |
| Signal to Noise Ratio: > 65dB |
| Optical |
| Optic wavelength: 1310/1550nm |
| Optic interface: FC/SC/ST(optical) |
| Supported |
| single mode: 9/125, multimode: 50,62.5/125 |
| Path Loss: 20dBm |
| Audio |
| Audio width: 20Hz~20KHz |
| Signal to Noise Ratio: > 85dB |
| Data |
| Data interface: RS-232, RS422 (full duplex), RS485 (half duplex) Manchester, Bi-phase |
| Data rate per channel: Up to 512kb/s |
| BER: <10-9 |
| General |
| power supply: DC5V/1A( optional) |
| operating temperature: -35°C~70°C |
| operating humidity:0~95% |
| Dimension |
| Stand alone: 105(L)×104(W)×28(H)mm |
| Color: Black |
| Material: Iron shell |
| Model | Description | Optical interface | Transmission distance(km) | Fiber Type |
| BT-1VF-T/RS | 1-channel video | FC ( optional SC/ST ) | 20 to 80 | Single or multimode |
| BT-1V1DF-T/RS | 1-channel video and 1-channel data | |||
| BT-2VF-T/RS | 2-channel video | FC ( optional SC/ST ) | 20 to 80 | Single or multimode |
| BT-2V1DF-T/RS | 2-channel video and 1 channel data | |||
| BT-4VF-T/RS | Mini 4-channel video | FC ( optional SC/ST ) | 20 to 80 | Single or multimode |
Products Display
BTON Company
Factory Display
Testing and Olding
Certificates
About us:
Shenzhen Factory-BTON is a manufacturer of Fiber Media Converter, Fiber Video Converter, SFP Module and Optic Fusion Splicer with good quality ,all products with CE/FCC/RoHS approved. Welcome to send inquiry to us.
Hope your business will be better and better,and all goes well with you !
Sherry
Shenzhen Bton Technology Co.,Ltd
Website: ww
Skype: btonnet04
Email. : sales4 (at)
Tel. : 86-755-23418351
Mobile: +86-13590418442
