API & ISO Standard Fishing Tools Downhole Tools for Oil Field

API & ISO Standard Fishing Tools Downhole Tools for Oil Field thumbnail-1
API & ISO Standard Fishing Tools Downhole Tools for Oil Field photo-1
US$ 1 - 10,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Hongsheng
Type:
Other, downhole tools
Contact Supplier Request Quote Chat Now
Lijin Hongsheng Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name Hongsheng
Type Other, downhole tools
Material Other, Your choice
Application Other, borehole operation

Specifications

1.high quality
2.strong technical force
3.low price
4.best service

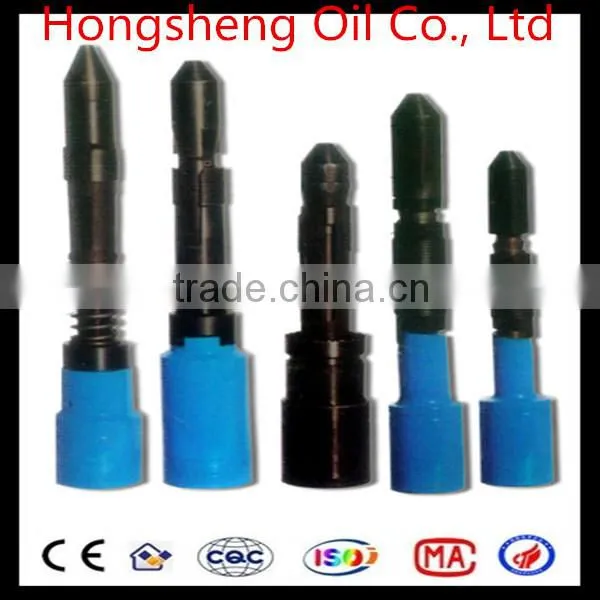

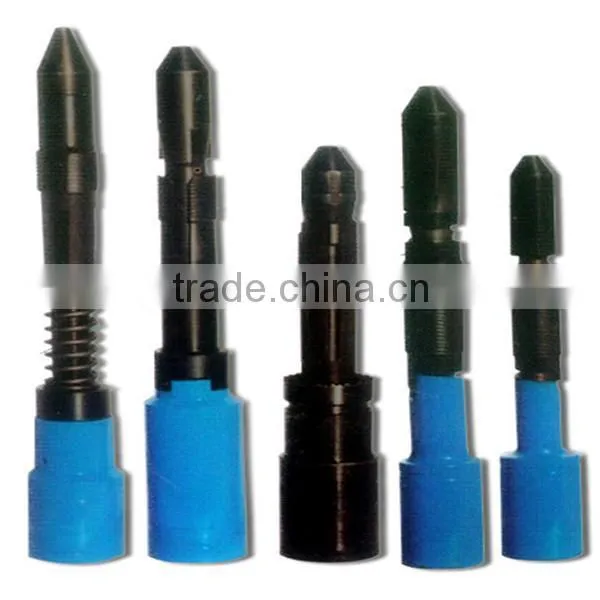

API & ISO Standard Fishing Tools Downhole Tools for Oil Field

Releasing through improved fishing spear upside down, Releasing Spear fishing is carried out from the cavity of the fish hole tools.
It can grab a free state fishing column can also be caught fishing sticking column, also upside down and release off the fish, according to the different operational requirements in combination with other tools, we lengthened Releasing Spear the length of the mandrel so that the impact of the fish is not falling.

Workover by Releasing Spear
Model Salvage range(mm) Connector thread Allowable loadKN
TLM73 54.6-62 NC31 430
TLM89 66.1-77.9 NC31 800

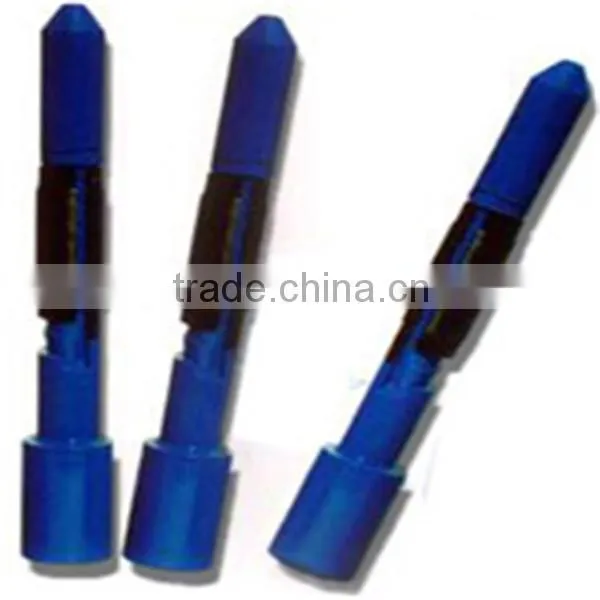

API & ISO Standard Fishing Tools Downhole Tools for Oil Field

Anti-stabbing spear top
Salvage Size Connector thread
m70x3 2 7/8”TBG

API & ISO Standard Fishing Tools Downhole Tools for Oil Field



Window milling drum sets
Model Connector thread Borehole size
KLT114 NC31 5 1/2”

API & ISO Standard Fishing Tools Downhole Tools for Oil Field

Workover by Releasing Spear
Model Salvage range(mm) Connector thread Allowable loadKN
TLT73A 70.62-73.79 NC31
2 7/8”TBG		 400
TLT89A 88.5-89.5 NC31
3 ½”TBG		 450



API & ISO Standard Fishing Tools Downhole Tools for Oil FieldZDM-type drill buckle down Spear



Type
Outside diametermm
Inside diametermm
Connector threadAPI
Salvage threadAPI
Applicable upside down drill
The maximum pulling loadkN
ZDM40
152
28
NC46LH
NC46
4-41/2" DrillDrillpipe
61/4-63/4" Drill collar
350
ZDM46
121
12
NC38LH
NC38
31/2" DrillDrillpipe
5" Drill CollarDrill collar
350
ZDM46S
121
12
NC38
NC38
1/2" DrillDrillpipe
350
ZDM62
159
28
NC50LH
NC50
41/2-5" DrillDrillpipe
7" Drill CollarDrill collar
500
ZDM62S
159
28
NC50
NC50
41/2-5" DrillDrillpipe
7" Drill CollarDrill collar
500
ZDM64
165
28
NC50LH
NC50
41/2-5" DrillDrillpipe
7" Drill CollarDrill collar
500
ZDM70
178
32
51/2FHLH
51/2FH
51/2" DrillDrillpipe
700
ZDM70S
178
32
51/2FH
51/2FH
51/2" DrillDrillpipe
700
ZDM80
203
32
NC50LH
65/8REG
8" Drill CollarDrill collar
800
ZDM90
229
32
NC50LH
75/8REG
9" Drill CollarDrill collar
800

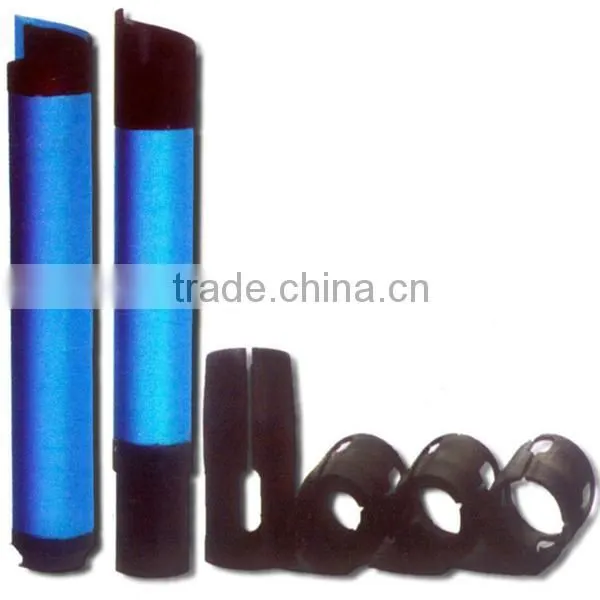

 Various sizes of slips fishing tube, tube upside down fishing, fishing pump cylinder, multi-purpose fishing can be used to salvage the casing tube
Outer diameter: 42,46,50,55,60,73,78,89

API & ISO Standard Fishing Tools Downhole Tools for Oil Field
