Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > Analog Video to Fiber

Analog Video to Fiber

Name: Analog Video to Fiber
Brand: B&TON/OEM
SKU: 112984351
Availability: InStock

US$ 30 - 500 MOQ: 1 Pair

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

B&TON/OEM

Model Number:

1V1DF-T/R

Contact Supplier Request Quote Chat Now

Shenzhen Bton Weiye Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name B&TON/OEM

Model Number 1V1DF-T/R

Product Description

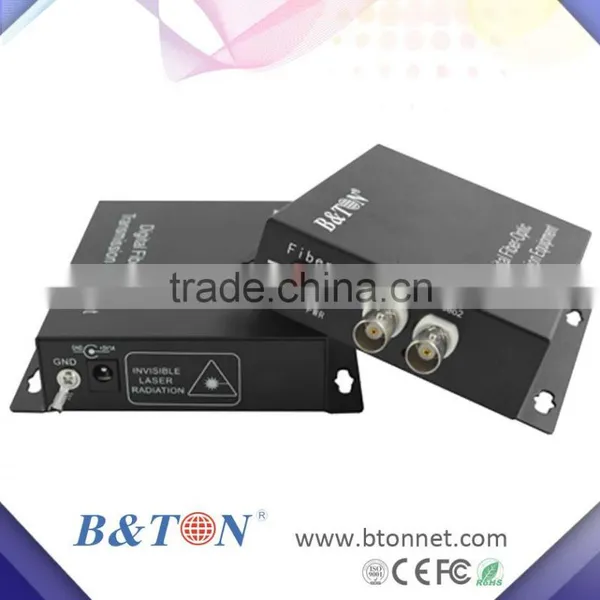

Analog Video to Fiber Converter

Video Port: BNC

Resolution: 500TVL~1000TVL

Analog Video Optical Transmitter and Receiver
For CCTV Security Surveillance

B&TON video optical converter can simultaneously transmit 1-72 channels of 8-bit digitally encoded broadcast quality video/data/audio/Ethernet/telephone/dry contact over one single mode or multi-mode optical fiber. The converter is typically used in applications where the cameras have PTZ capabilities. Plug and Play design ensures the ease of installation and operation. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation,which is suitable for different working environment.

Features
* 8-bit digitally encoded and non-compression broadcast quality video transmission
* Directly compatible with NTSC, PAL, and SECAM CCTV camera systems and support RS-232, RS-422, and RS-485 data protocols;* Support any high-resolution video signal
* Automatic compatible PAL, NTSC and SECAM video system
* Power supply and other parameter state indication, which can monitor the operation condition of system
* Support no-damage regenerative trunk of video
* Constant input optical power, and large dynamic range ,no Electrical or Optical Adjustments Required
* Special ASIC design
* Hot-swap function

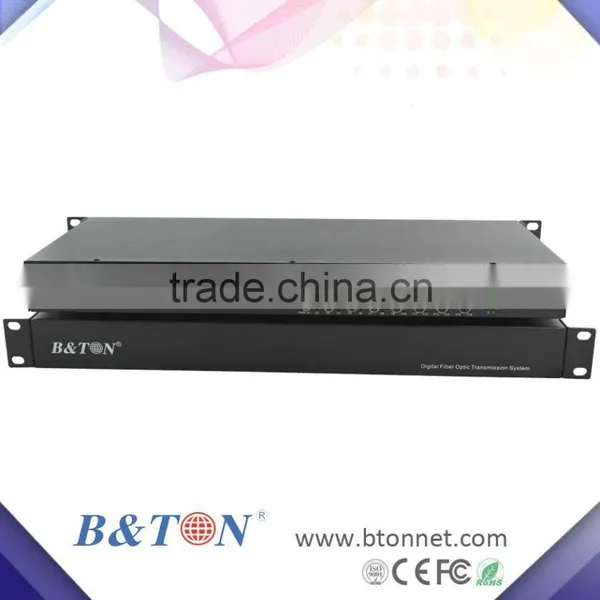

* Stand-alone type or card-type installed in 19’’ 2U or 4U rack-mount chassis

Application
* Intelligent Transportation System
* Connection of Sub-network for Surveillance Center
* Public Security Surveillance
* High Way & Toll Station Surveillance
* Industrial Closed Circuit Television Surveillance

Data	Connector: Terminal Blocks Encoded type: RS485 / RS422 / RS232 / Manchester Data rate: DC ~ 300Kbps BER: ≤10-9
Audio	Connector: Terminal Blocks Audio input / output impedance: 600Ω(Balance/ unbalance) Audio input / output voltage: 2Vp-p ( typical value) Audio input / output level: 0dBm ( typical value) Video bandwidth: 20HZ~20KHZ Audio digital encoded bandwidth: 24bit Audio signal-to-noise ratio: S/N≥85dB
Telephone	Connector: RJ11 Bandwidth: 8KHZ Features: Support call-showing function ;support H-F Operating mode: Point to point hot-line mode / FXS-FXO
Ethernet	Connector: RJ45 Support mode: Half duplex or Full duplex Standards: IEEE802.3 Data rate: 10M / 100Mbps Bandwidth: 25M
Contact Closure	Physical connector: Industrial standard connector port Alarm output: Support any type of active or passive alarm output Data Interface: Support TTL, RS232/485/422 or relay output
Optical Budget	Multi-mode / 20dBm / 2KM Single mode / 20dBm / 20KM Single mode / 22dBm / 40KM Single mode / 25dBm / 60KM

Ordering Information
Model	Description(FC,SM,20KM)
BT-1VF-T/RS	1ch video
BT-1V1DF-T/RS	1ch video+1ch reverse rs485 data
BT-1V1AF-T/RS	1ch video+1ch unidirectional(forward/reverse) audio
BT-1V1EF-T/R	1ch video+1ch 100M Ethernet
BT-1V1PF-T/R	1ch video+1ch Telephone
BT-1V1CF-T/R	1ch video+1ch Contact Closure(Dry Contact)
BT-1V↑↓1A↑↓1D41CF-T/R	1ch bidi video+1ch bidi audio+1ch rs422 data+1ch contact closure
BT-1V↑↓2A↑↓1D41CF-T/R	1ch bidi video+2ch bidi audio+1ch rs422 data+1ch contact closure
BT-2VF-T/RS	2ch video
BT-2V1DF-T/RS	2ch video+1ch reverse rs485 data

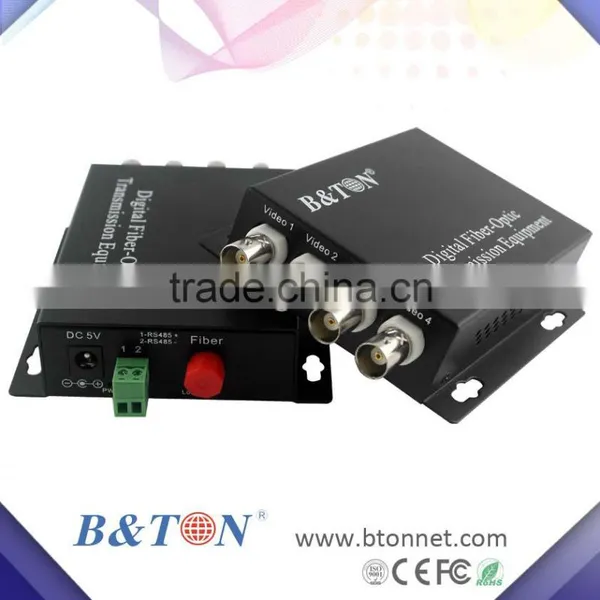

BT-4VF-T/RS	4ch video
BT-4V1DF-T/RS	4ch video+1ch reverse rs485 data

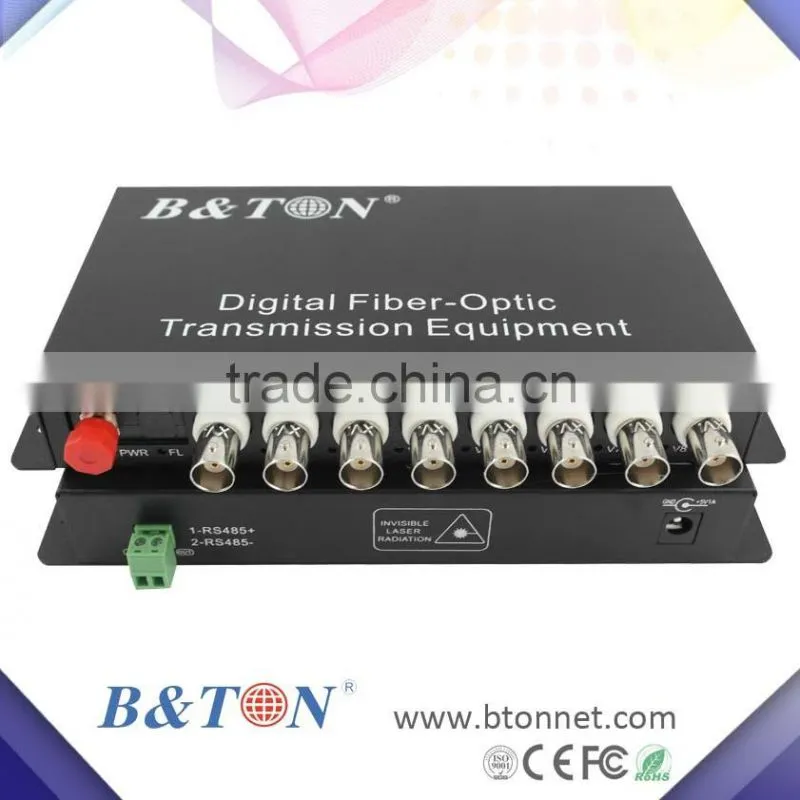

BT-8VF-T/RS	8ch video
BT-8V1DF-T/RS	8ch video+1ch reverse rs485 data

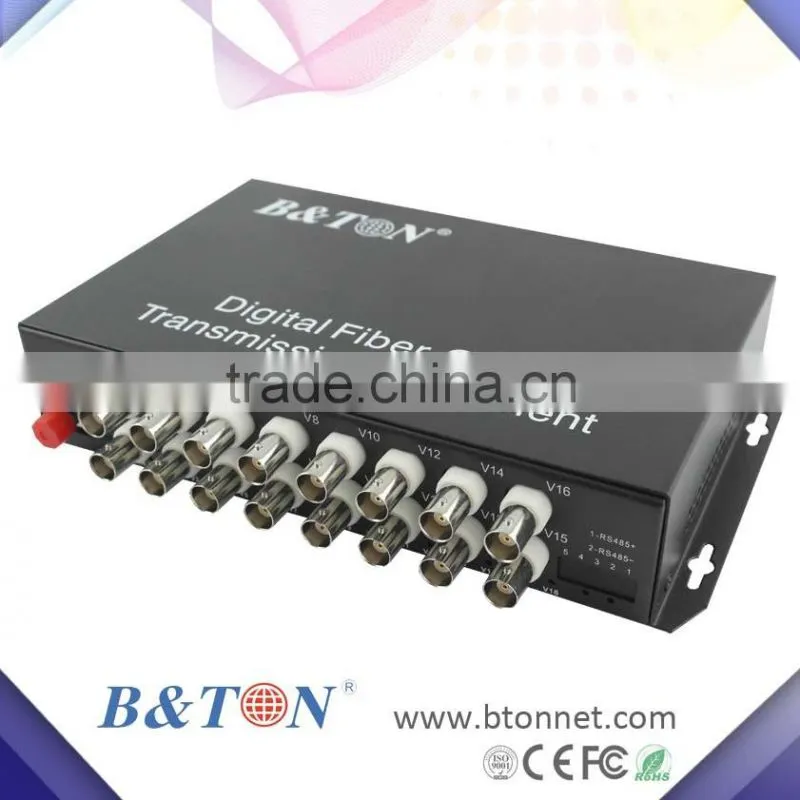

BT-16VF-T/RS	16ch video
BT-16V1DF-T/RS	16ch video+1ch reverse rs485 data

Detailed Images

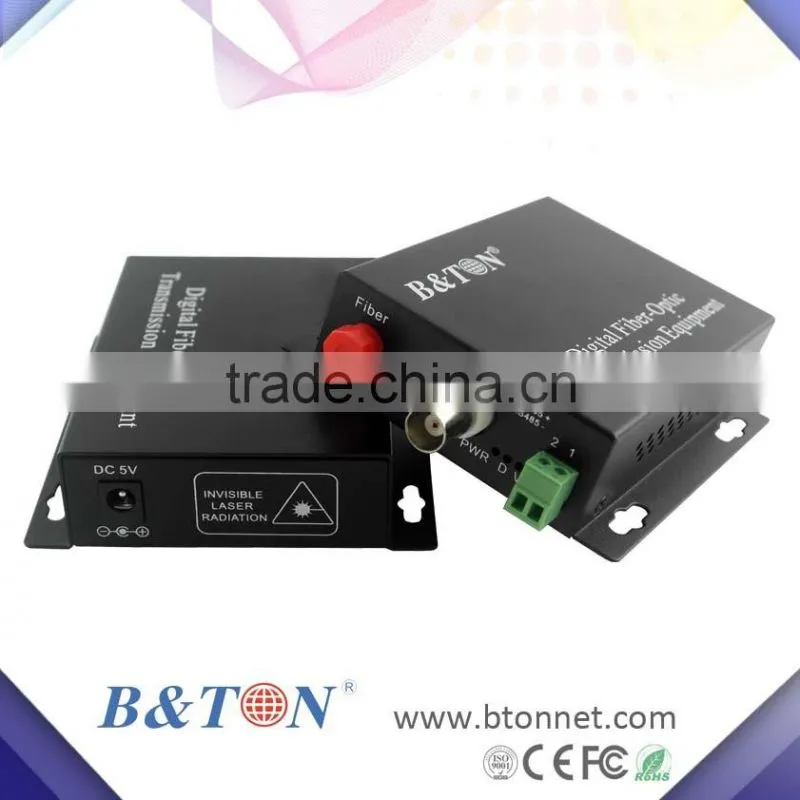

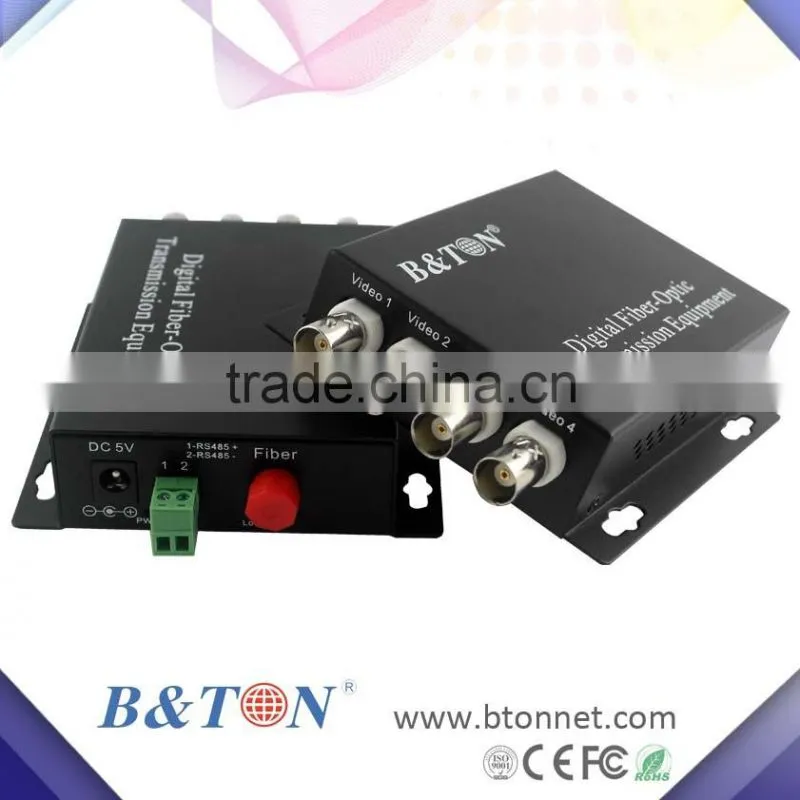

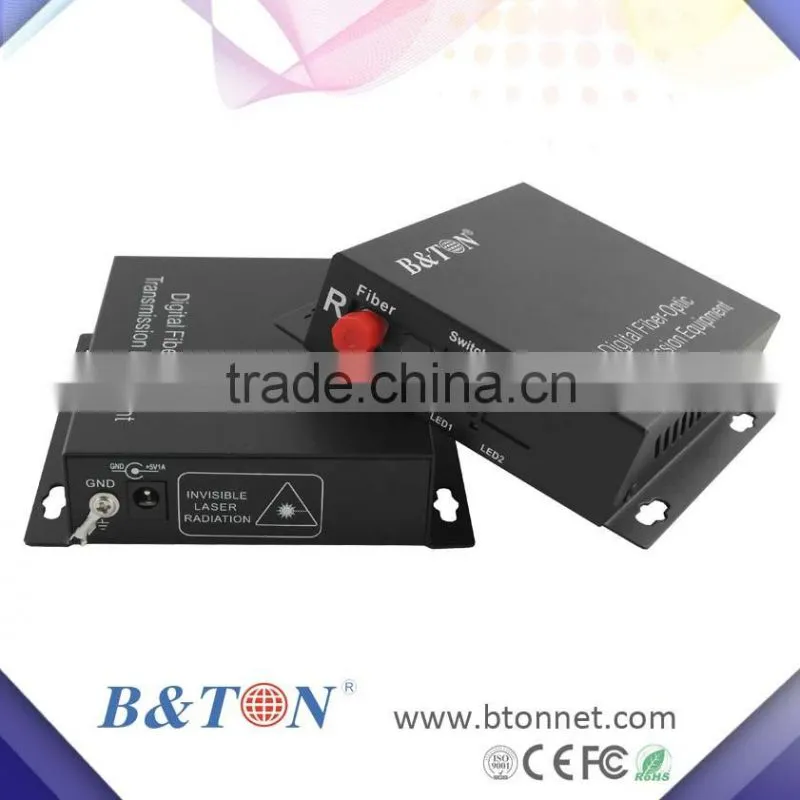

Video to Fiber with RS485 Data

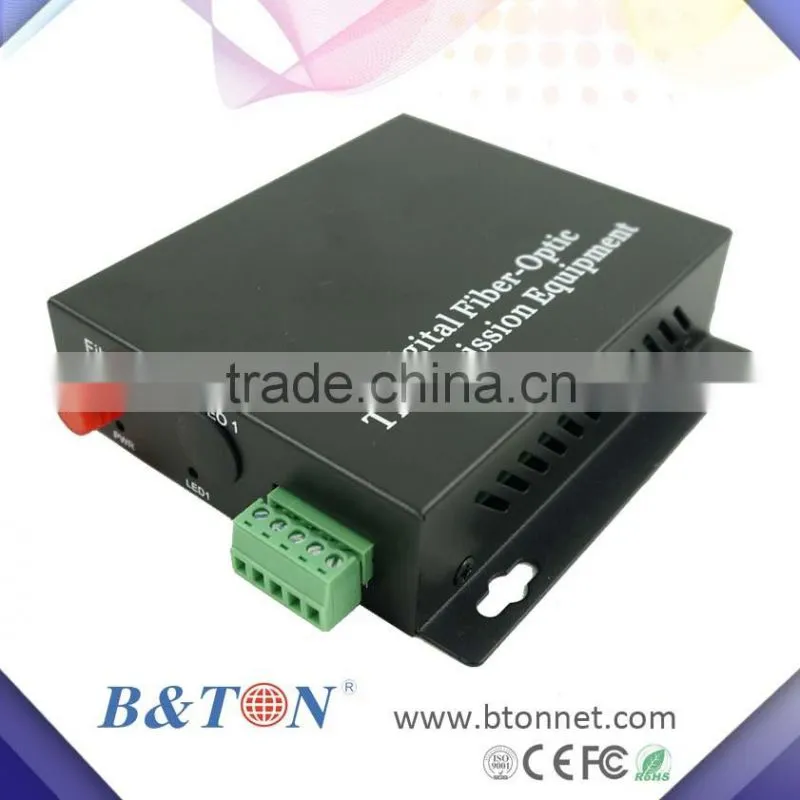

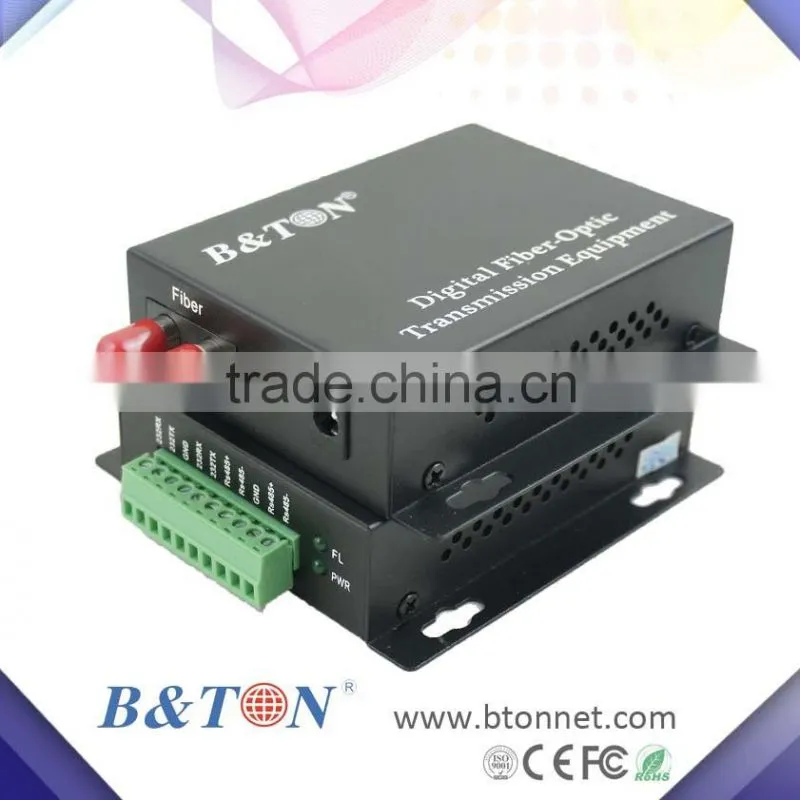

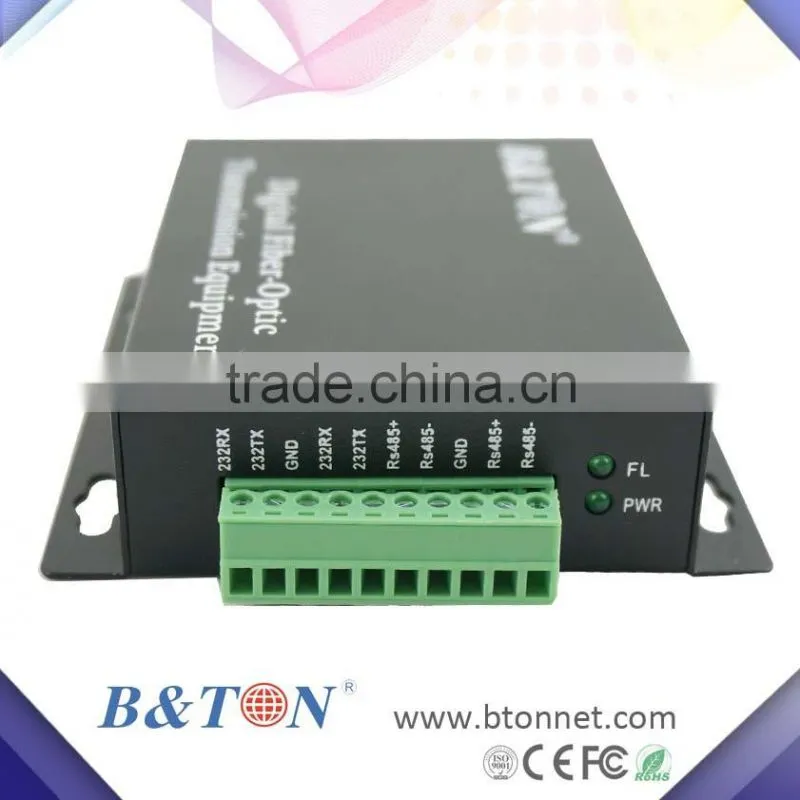

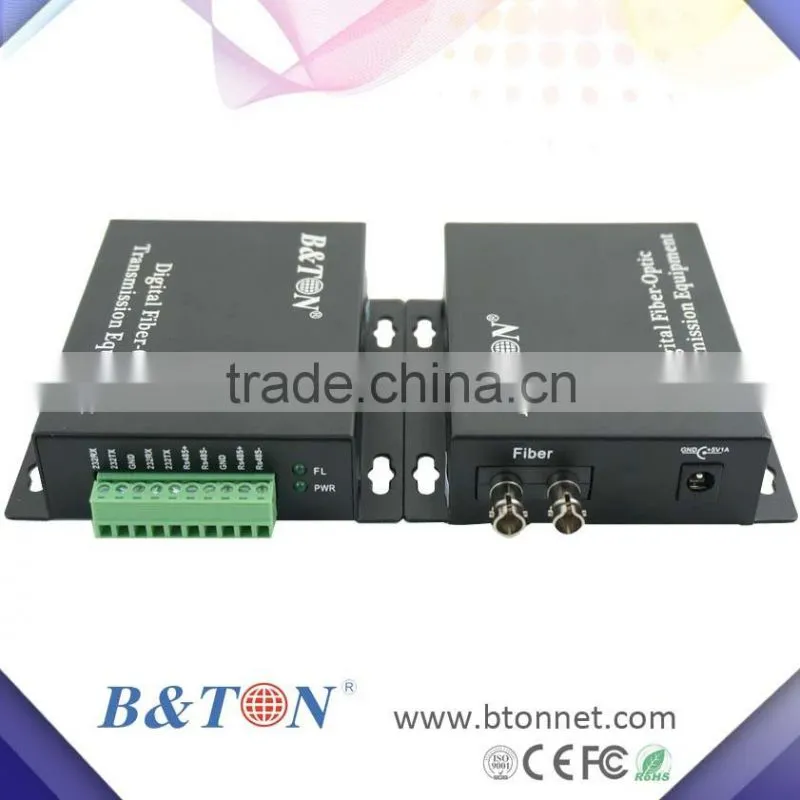

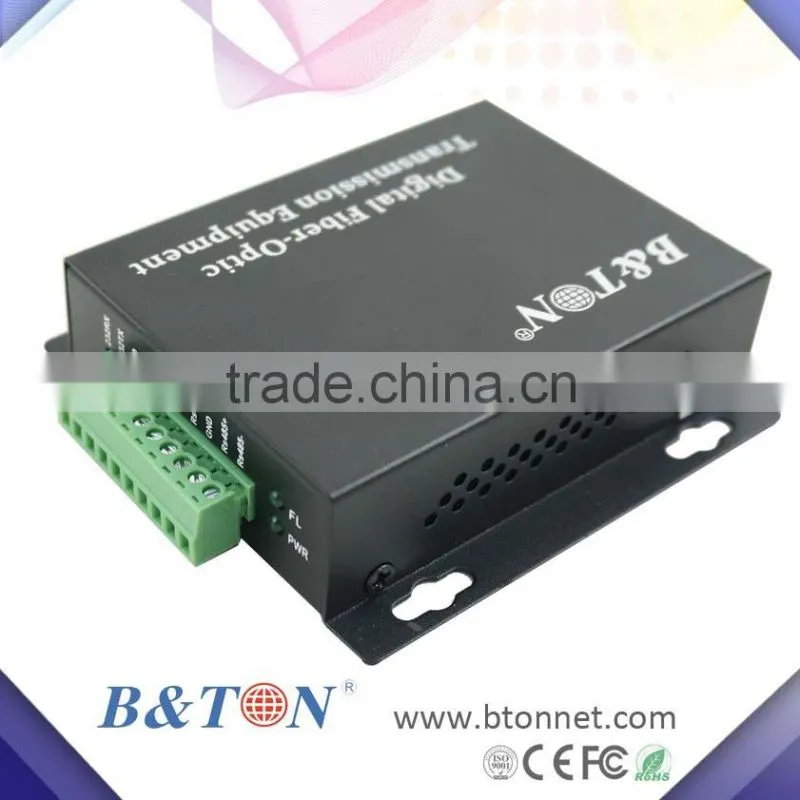

Data RS485/RS422/RS232 to Fiber

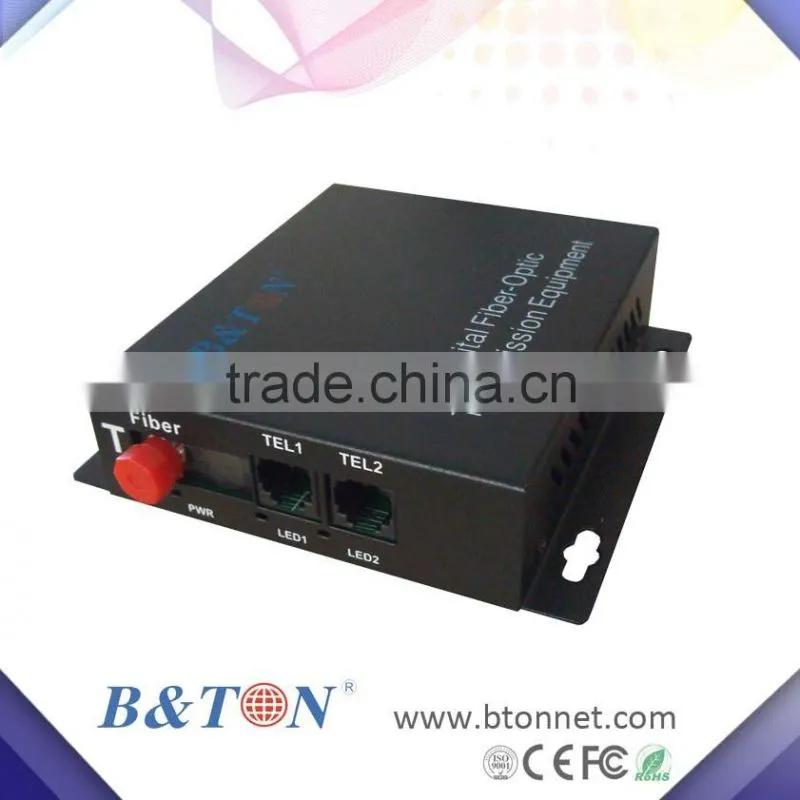

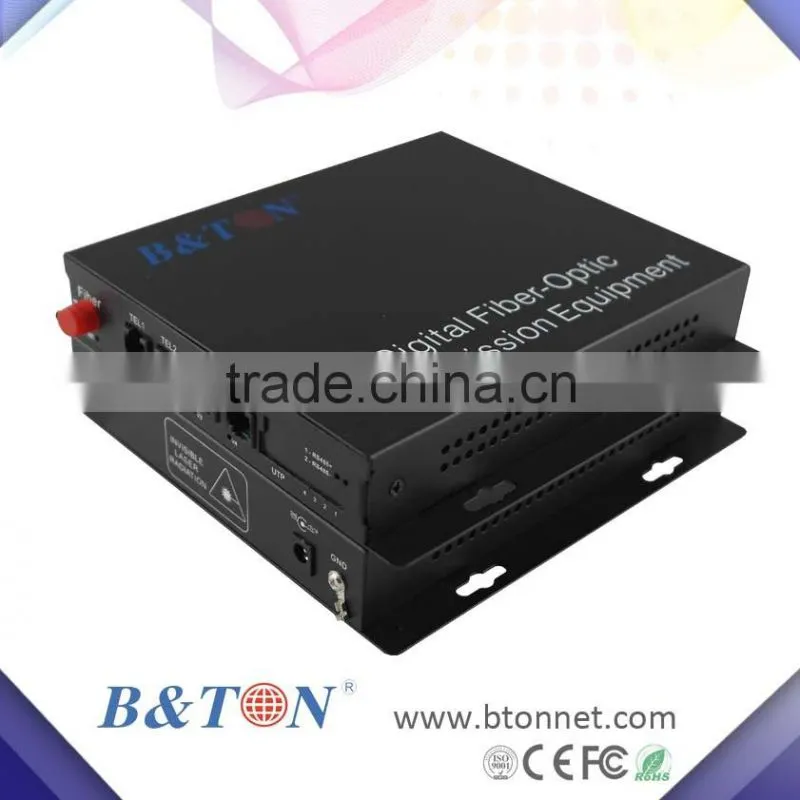

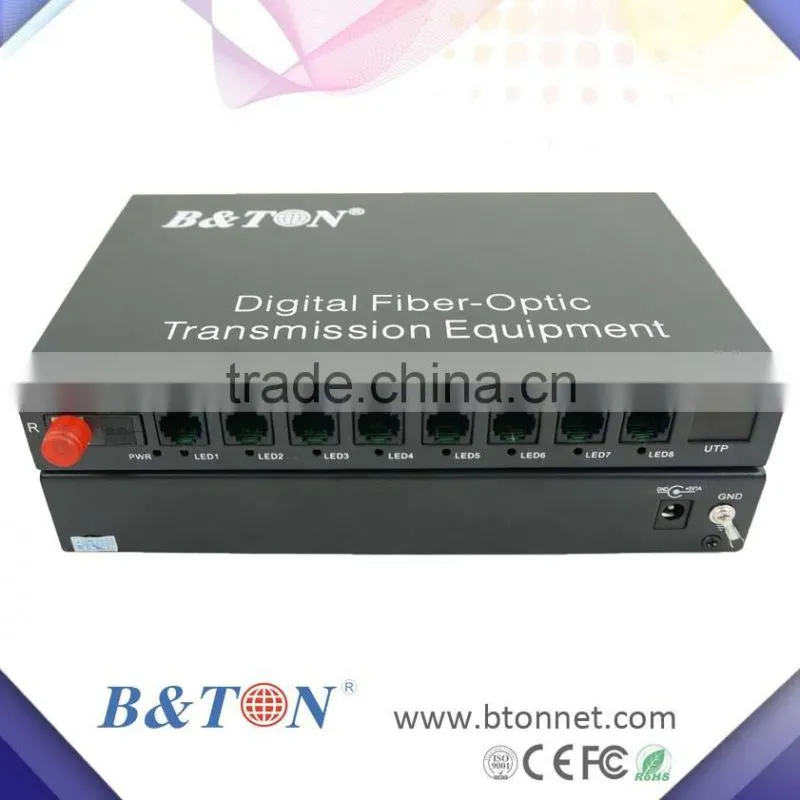

Telephone over Fiber RJ11

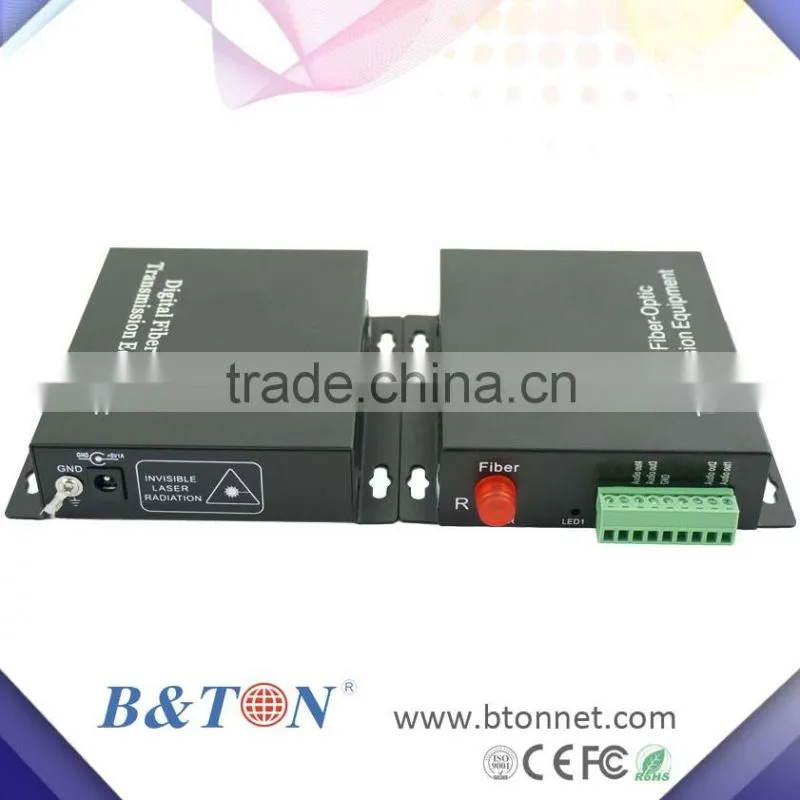

Audio over Fiber Contact over Fiber

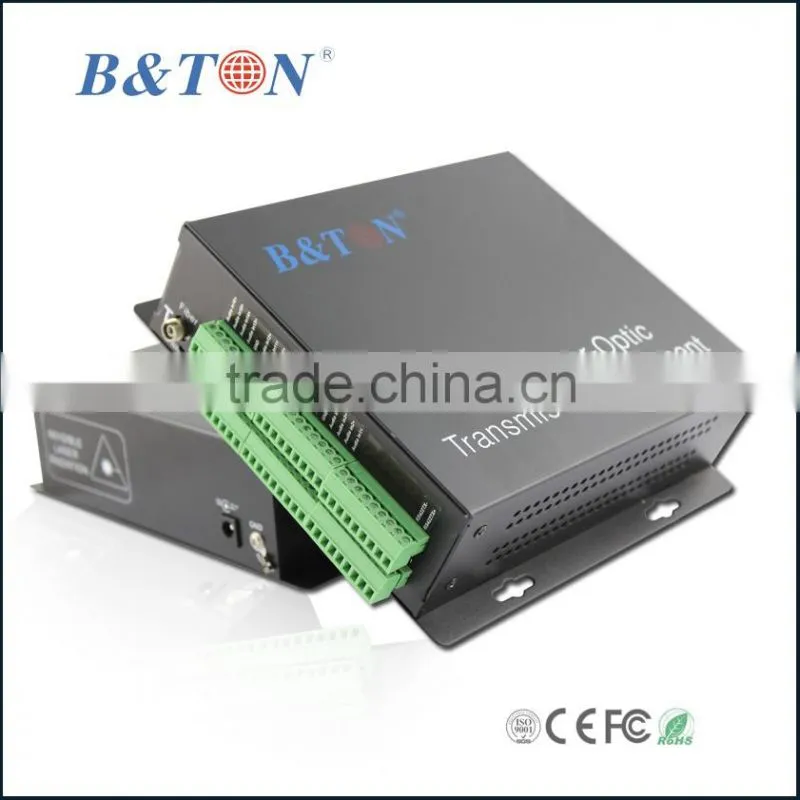

BT-8A1D2PF-T/R

8CH Audio, 1CH RS485 Data, 2CH Telephone

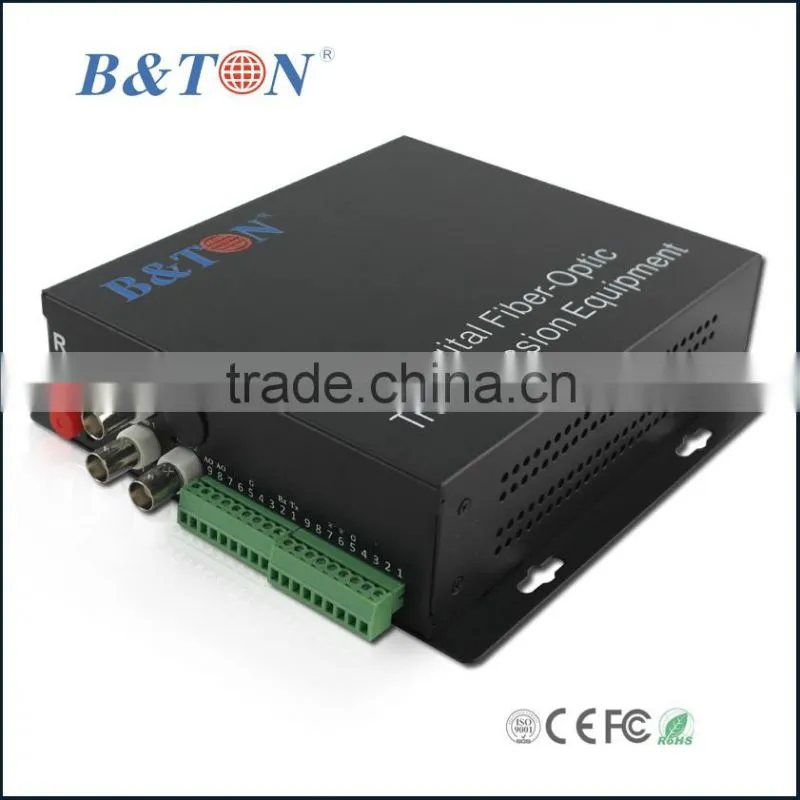

BT-3V1D1A4CF-T/R

3CH Video,1CH Data,1CH Audio,4CH Contact Closure

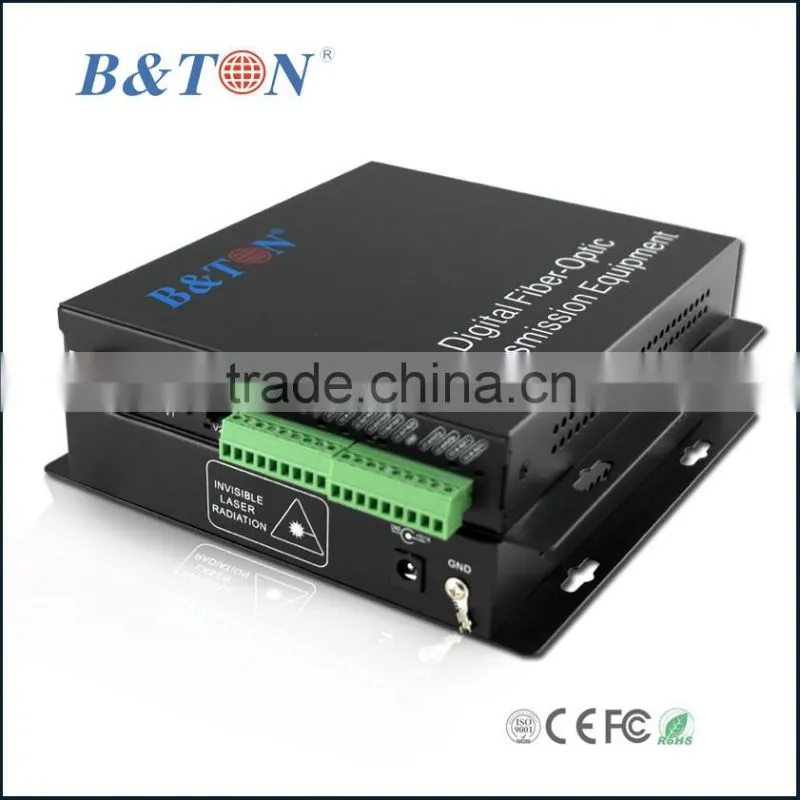

BT-16A1DF-T/R

16CH Audio,1CH Data

Connection

Certificates

Packing & Delivery

BTON Company

B&TON Factory

Specialized in making Fiber Media Converter, Video Optic Converter Analog/HD-CVI/TVI/AHD/HD-SDI/HDMI/VGA/DVI, POE Switch, SFP Transceiver. All are 3year warranty with good quality.
