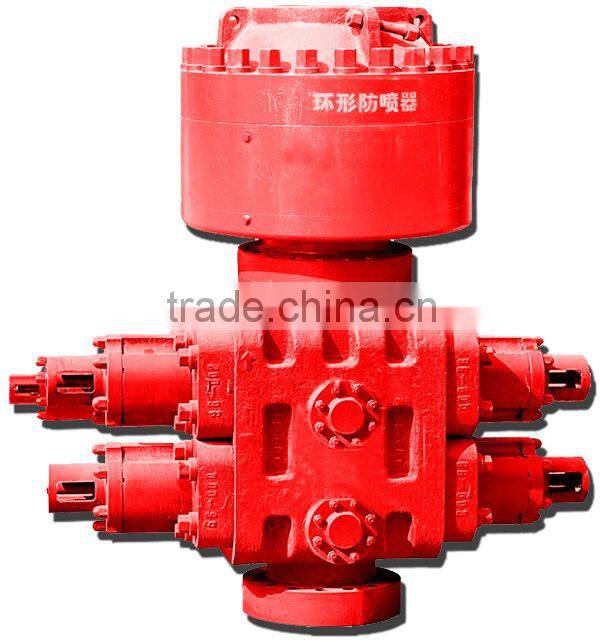

Help CenterWell Control Equipment BOP Blowout Preventer
Related Products
-
MCC Room for Drilling RigUS$ 260 - 12,000MOQ: 1 Set -
API & ISO Standard Fishing Tools Downhole Tools for Oil FieldUS$ 1 - 10,000MOQ: 1 Piece
-
Hot Sale API & ISO Standard H2S Resistant Liner Hanger for Drilling RigUS$ 20 - 2,000MOQ: 1 Piece
-
Petroleum Equipment API & ISO Standard Double Ram Type Preventer for OilfieldUS$ 1,000 - 50,000MOQ: 1 Set
-
Hot Sale Petroleum Equipment API & ISO Standard Christmas Tree for Oil and Gas Well UsageUS$ 10,000 - 60,000MOQ: 1 Piece
Specifications
Specifications1.Working pressure:2000~10000PSI
2. End connection:flanged and bolted
3. Certificate: API 16A & ISO
Characteristics:
1. The side door and shell are connected by triple hinges.
2. Open and close the valve in sequence by using pressure bar(C type ram BOP)
3. The guide frame is set at the end of the side door, when the side door is opened, the ram can be pulled out along the guide rail and the ram can be replaced(D type ram BOP)
4. The cavity of ram is ellipse.
5. Hydraulic Pressure: 1200~1500PSI(8.4~10.5MPa)
6. Hydraulic connection: NPT1
7. Working temperature: -29°C~121°C
8. Media: Oil gas & drilling fluid containing H2S
9. Ram size and type : series size pipe ram, reducing ram and cutter ram.
Specifications:
Model |
Bore (in) |
Working Pressure (Psi) |
Hydraulic Control Pressure (Psi) |
Piston Size (in) |
Piston Stroke (in) |
Working Temperature (F) |
2FZ18-21 |
7-1/16" |
3000 |
1200-1500 |
5.9 |
4.1 |
-4F--186"F |
2PZ18-35 |
7-1/16" |
5000 |
5.9 |
4.1 |
||
2FZ23-21 |
9" |
3000 |
5.9 |
5.9 |
||
2FZ23-35 |
9" |
5000 |
8.6 |
5.9 |
||
2FZ23-70 |
9" |
10000 |
9.8 |
5.9 |
||
2FZ28-35 |
11" |
5000 |
9.8 |
6.3 |
||
2FZ28-70 |
11" |
10000 |
9.8 |
6.3 |
||
2FZ28-105 |
11" |
15000 |
13.7 |
7.1 |
||
2FZ35-14 |
13-5/8" |
2000 |
6.3 |
7.1 |
||
2F235-21 |
13-5/8" |
3000 |
8.7 |
7.1 |
||
2F235-35 |
13-5/8" |
5000 |
13.7 |
7.1 |
||
2FZ35-70 |
13-5/8" |
10000 |
13.7 |
8.2 |
||
2FZ35-105 |
13-5/8" |
15000 |
13.7 |
8.2 |
