Specifications
1.10mm round led diode2.Low power consumption
3.Solid-state,
4.high shock low light decay
5.envioronmental protection

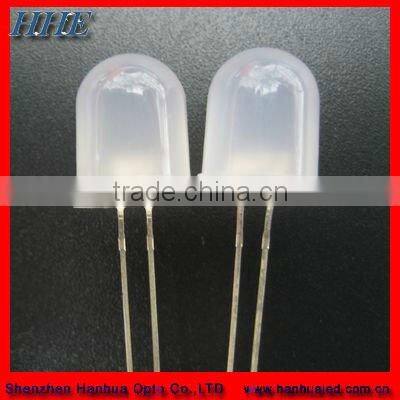

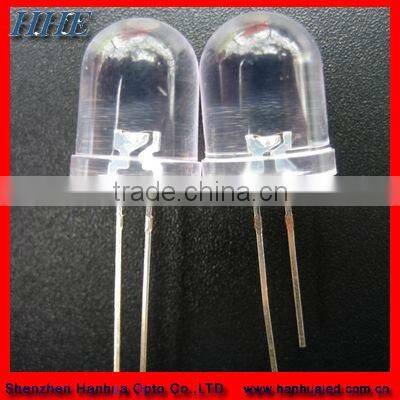

10mm round diffused led diode for channel letter
Feature;
1. Chip Material; InGaN/GaAsp
2.Shape; round led, oval led, straw hat led , helmet led , square led flat top led , bullet led, concave led, rectangle led
3.Available Size; 2mm,3mm,5mm,8mm,10mm,20mm
4. Lens type;water clear, color transparent, colored diffuse
5. Emitted color; Red, White, Yellow, Orange, yellow-green, Green, Blue
6. Different angle available
7. Low power consumption, high intensity, uniform illumination
8. Solid-state, high shock and vibration resistant
9. Major reduction in power cost
10. No RF interference
11. Maintenance free, easy installation
12. Long life 100,000+hours
13. Superior ESD protection
Application; Advertising signs, circuit board, computer, monitor, portable equipment, project building, status indicator, telephone, traffic signal lights and automotive, tv set ,car decoration, channel letter lighting.
1)our product coved range; led emitting diode, dip led, led light diode ,led diode rgb,double color, full color led, tri color led ,led lamp diode, super bright led, high power led, SMD, led strip, led module, led component, piranha. if you need any types of product, please feel free to contact with us, we are give you best service.
2) Our manufacture is in Shenzhen, if you are visit China, welcome to our factory
Typical Optical/Electrical Characteristics
Item |
Symbol |
Condition |
Min |
Typ |
Max |
Unit |
Forward Voltage |
VF |
IF=20mA |
3.0 |
3.1 |
3.2 |
V |
Reverse Current |
IR |
VR=5V |
0 |
0 |
5 |
uA |
Light intensity |
IV |
IF=20mA |
10000 |
12000 |
15000 |
mcd |
Viewing Angle |
2θ1/2 |
IF=20mA |
|
|
25 |
deg |
Luminous Flux |
Φ |
IF=20mA |
2.8 |
3.0 |
3.2 |
lm |
Wavelength |
WLD |
IF=20mA |
517 |
520 |
522.5 |
nm |
Recommend Forward Current |
IF(rec) |
IF=20mA |
|
|
20 |
mA |
chip material |
InGaN/GaAsp |
shape |
round led,oval led,straw hat led,helmet led,square led,flat top led,bullet led,concave led,rectange led |
other colors |
red,green,yellow,blue,white,warm white,cool white,Bi-color,rgb ect |
available angle |
60,90,120,140,160,175 degree |
available size |
3mm,5mm,8mm,10mm |
application |
adervitising signs, circuit board, computer,monitor, portable equipment, project building, status indicator, telephone, traffic signal lights and automotive, channel letter lighting |
advantage of our company |
experience technical staff, professional led manufacture, prompt delivery, international approval, superior SED protection ect |
advantage of our product |
top quality raw material, low power consumption, excellence performance ,good service, small order avaliable, big order offer for free shipping by express |
