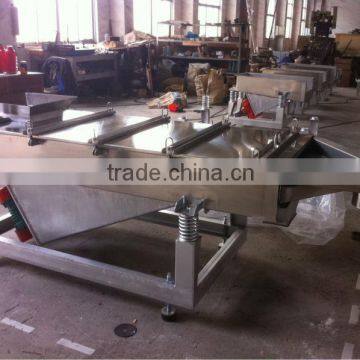

Help CenterPlastics Products Vibrating Sifting Machine With Good Performance
Related Products
-
Food Product Vibrating Sifting Machine With CEUS$ 2,200 - 12,000MOQ: 1 Set -
Metallurgial Products Vibrating Sifting MachineUS$ 2,200 - 12,000MOQ: 1 Set
-
Jiangyin Steel Rotary Screener for Medicine IndustryUS$ 5,100 - 7,400MOQ: 1 Set
-
Foodstuff Rotary Screener With Easy OperatingUS$ 5,100 - 7,400MOQ: 1 Set
-
Vibrating Sifting Machine for Food IndustriesUS$ 2,200 - 12,000MOQ: 1 Set
Specifications
Main Usage:
The machine consists of screen box at material inlet and outlet, vibrator and shock absorber. There are 4-6 sets of flexible rubber absorber connected between base and screen box in up-down order. Centrifugal force is generated upon starting the machine. Control shock absorber reacts against amplitude eccentric device correspondingly for best performance and material screening process in throwing vibration and loose. It is the ideal choice for pharmaceutical,food, chemical, metallurgy and electronic.
Technical Data:
Model | ZS-0.3M2-X | ZS-0.5M2-X | ZS-0.7M2-X | ZS-0.8M2-X |
Capacity(kg/h) | 300 | 450 | 650 | 750 |
Sieve aperture (mesh) | 2-20 | 2-20 | 2-20 | 2-20 |
Power(kw/h) | 0.2 | 0.2*2 | 0.2*2 | 0.2*2 |
Vibrating frequency (time/min) | 1400 | 1400 | 1400 | 1400 |
Vibration power (KN) | 0-2.5 | 0-2.5*2 | 0-2.5*2 | 0-2.5*2 |
Upper output height | 465 | 740 | 740 | 740 |
Middle output height | 380 | 650 | 650 | 650 |
Under output height | 280 | 450 | 450 | 500 |
Overall size(l*w*h) | 1290*510*660 | 1380*710*960 | 1780*710*960 | 1780*790*960 |
Weight(kg) | 140 | 220 | 280 | 320 |
Material | SUS304 | SUS304 | SUS304 | SUS304 |
Model | ZS-1.2M2-X | ZS-1.8M2-X | ZS-2.2M2-X |
Capacity(kg/h) | 1100 | 1600 | 2000 |
Sieve aperture (mesh) | 2-20 | 2-20 | 2-20 |
Power(kw/h) | 0.4*2 | 0..75*2 | 0.8*2 |
Vibrating frequency (time/min) | 960 | 960 | 960 |
Vibration power (KN) | 0-5*2 | 0-10*2 | 0-13*2 |
Upper output height | 795 | 850 | 850 |
Middle output height | 680 | 750 | 750 |
Under output height | 530 | 520 | 580 |
Overall size(l*w*h) | 2060*1020*1080 | 2800*1150*1200 | 3250*1200*1200 |
Weight(kg) | 420 | 620 | 850 |
Material | SUS304 | SUS304 | SUS304 |
Our Vibrating Sifting Machine is the best!
If you want to send inquriy to me, could you please tell me?
1 What material you want to screen?
2 What capacity you expect ? (kg/h)
3 What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V...
(We only provide 3P, because our machines are all for industrial use,not for family.)
Then our communication will be more efficient.
