HLSG-250 Rapid mixer granulator
Characters:
Applied in trades such as 3-in-1 coffee, spice Flavor, powder, solid beverage
Products Characteristics :
1,With consistent programmed technology ( man-machine interface if option selected ) , the machine can get assured of stability in quality, as well as easy manual operation for convenience of technological parameter and flow progress.
2,Adopt frequency speed adjustment to control the stirring blade and cutter, easy to control the size of particle.
3,With the rotating shaft hermetically filled with air, it can prevent all dust from compact.
4,With a structure of conical hopper tank, all material can be in uniform rotation.The tank is laid with an interlayer on the bottom, in which water cooling circulation system featuring higher thermostatic performance than air cooling system is furnished, which leads to improve the quality of particles.
5,With automatic lifting of the pan cover, the tank outlet matching with drying device, self-equipped arm-ladder, it is easy to operate.
6,7,Mouth of material outlet has changed Into arc-shaped, avoiding up dead spaces.
Main technical Parameters:
Model | HLSG-50 | HLSG-100 | HLSG-250 | HLSG-300 | |||||
Service Capacity (L) | 12-35 | 25-70 | 80-120 | 130-180 | |||||
Time of Granulating /Batch | Mixing : 2mins granulating:7-14mins/batch | ||||||||
Rationan Speed of Stirring Paddle (RPM) | 25-500 | 30-250 | 30-250 | 30-220 | |||||
Power of Stirring Paddle Motor ( KW) | 5.5 | 7.5 | 15 | 18.5 | |||||
Rationan Speed of Cutter | 50-3000 (rmp/min) | ||||||||
Power of Cutter Motor (KW) | 1.5 | 3 | 4 | 7.5 | |||||
Overall Size (L×W×H)(MM) | 1530×620×1620mm | 1820×1010×1720mm | 1820×1020×1820mm | 2150×1090×1980mm | |||||
Height of Discharge Outle(MM) | 920 | 796 | 920 | 985 | |||||
Weight of Machine(KG) | 400 | 800 | 1200 | 1500 | |||||
Model | HLSG-400 | HLSG-600 |
Service Capacity (L) | 150-280 | 200-400 |
Time of Granulating /Batch | Mixing : 2mins granulating:7-14mins/batch | |
Rationan Speed of Stirring Paddle (RPM) | 25-500 | 30-250 |
Power of Stirring Paddle Motor ( KW) | 22 | 30 |
Rationan Speed of Cutter | 50-3000 (rmp/min) | |
Power of Cutter Motor (KW) | 7.5 | 11 |
Overall Size (L×W×H)(MM) | 2200×140×2100mm | 2650×1550×2550mm |
Height of Discharge Outle(MM) | 1050 | 1100 |
Weight of Machine(KG) | 2000 | 3600 |
Related products:
1) our engineers are able to go abroad to install the machines
2) one year quality assurance
Guarantee against defects in materials and workmanship of equipment and parts for one year. Any parts in need of replacement will be shipped free of charge but labor for installation will not be included. Warranty does not cover abuse or user error.
3) 24-hour on line service
Any questions will be replied within 24 hours
4) Our company has our own exporting right and forwarder.

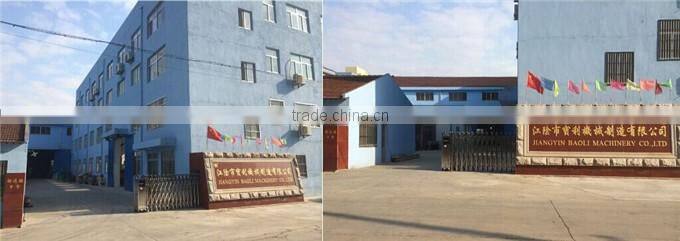

1) Our company locates at Wuxi city, very near Shanghai City and it only
takes 30 minutes to get to our city by train from Shanghai.
2) We are golden supplier on alibaba with a history of more than 5 years.
And our factory’s history is more than 10 years.
3) We have CE certificate, ISO,BV...etc.
4) Each year,we takes part in a lot of Expos. For example, FIC, CPHI, API...etc
1) Is there dust enter into bearing?
No, there is gas seals to prevent dust enter into bearing.
2) What is the material of the machine?
Usually our machine is made of Stainless steel 304, which meets GMP standard, if you want better, Stainless steel 316 is also okay.
3) What does it used widely?
3-in-1 coffee, spice flavor, powder, solid beverage
4) What is the payment way?
We prefer T/T, 30% advance payment, 70% against shipping documents.
