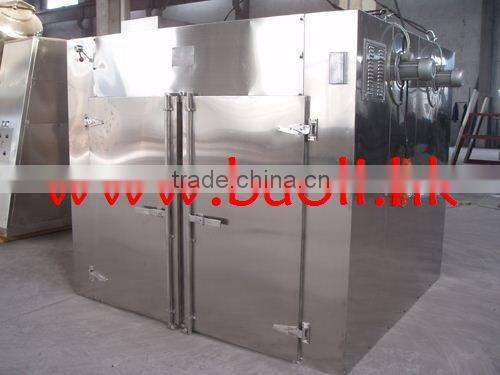

Hot Air Circulating Oven

FOB Price

US$ 3,000 - 50,000 / Set

1 Set(Min. Order)

Port Shanghai
Payment TermsT/T Money Gram

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Tray Dryer		Place of Origin	Jiangsu, China
Brand Name	Jinbao		Model Number	JB-

Product Description

Specifications

This machine is widely applied for the heating and dehumidifying of raw materials and products in the lines of pharmacy, chemica

Illustration

1. The temperatures to be used: steam heating 50-140°C, Max.150°C

2. Electric infrared heating: 50-350

3. Commonly used steam pressure 0.2-08Mpa(2-8kg/cm2)

4. If the electrical heating and type one, the calculation is 15kw,and the practical use is 5-8kw/h

5. The special requirements should be indicated at the time of order.

6. The use temperatures more than 140°Cand less than 60°C, should be inducted at the time of order.

7. The ovens and baking plates made by our factory are uniform in the dimensions, and can be exchangeable.The baking plate dimensions: 460*640*45mm , heating method: steam, electricity, infrared.

Features

1. controlling cabinet equipped with button(touch screen optional), easily operation and prolongs service life.

2. most hot air is circulated in the chamber which ensures high heating efficiency and saves energy.

3. Forced ventilation used, adjustable air distributing board in the chamber makes evenly drying of materials.

4. the machine is low noisy, smooth operated, temperature auto controlled and easy for maintenance.

5. widely applied. Suitable for versatile materials and is universal drying machine.

6. Initial and medium effective filter can be added in the air inlet and outlet as requested by custermer.

Main Usage:

This machine is widely applied for the heating and dehumidifying of raw materials and products in the lines of pharmacy, chemical, foodstuff, light industry, heavy industry, etc.

Specialty:

Great part of hot wind is circulated in the oven with high thermal efficiency, less energy consumption. The oven is equipped by the adjustable air-distributing plates to utilize the forced ventilating to dry the target materials evenly. The whole machine runs in stable condition, low noise, self-control temperature, easy installing and maintaining, and wide application.

Technical Data:

Model	JB-B-I
Dry amount each (kg)	120
Motor power (kw) Induced draft fan power (kw)	15 1.5
Steam expend (kg/h)	20
Heat dispelling area (m3) Wind (m3/h) Diff.in up&down temp (°C)	2 3450 ±2
Collo-cate tray	48
Overall size (LWH)(mm)	20012002200
Weight (kg)	15

Attention:

1, One tray could bear about 3 KG food material.

2, This machine has 48ray

3, All material is SUS304.

Model	JB-B-II
Dry amount each (kg)	240
Motor power (kw) Induced draft fan power (kw)	30 1.5
Steam expend (kg/h)	45
Heat dispelling area (m3) Wind (m3/h) Diff.in up&down temp (°C)	40 6900 ±2
Collo-cate tray	96
Overall size (LWH)(mm)	230022102200
Weight (kg)	1800

Attention:

1, One tray could bear about 3 KG food material.

2, This machine has 96 tray

3, All material is SUS304.

Model	JB-B-III
Dry amount each (kg)	360
Motor power (kw) Induced draft fan power (kw)	45 1.5
Steam expend (kg/h)	70
Heat dispelling area (m3) Wind (m3/h) Diff.in up&down temp (°C)	80 10350 ±2
Collo-cate tray	144
Overall size (LWH)(mm)	330022102200
Weight (kg)	2200

Attention:

1, One tray could bear about 3 KG food material.

2, This machine has 144 tray

3, All material is SUS304.
