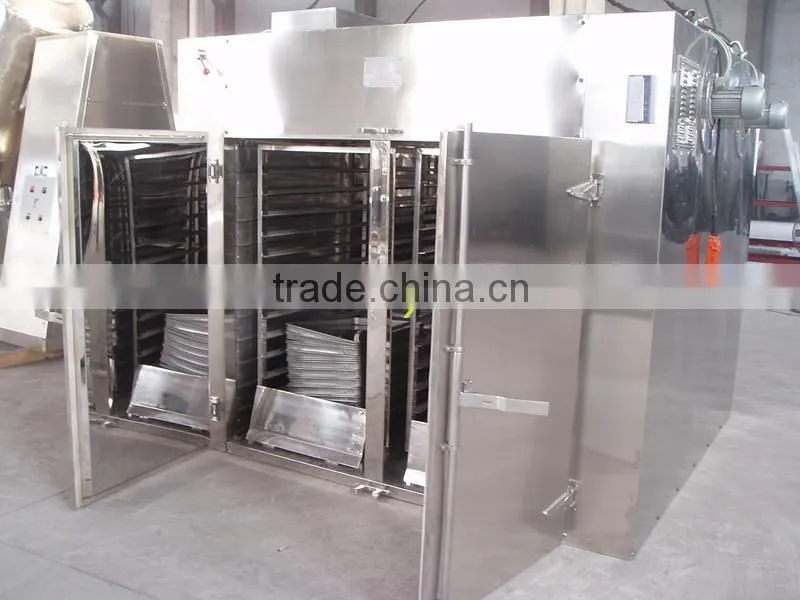

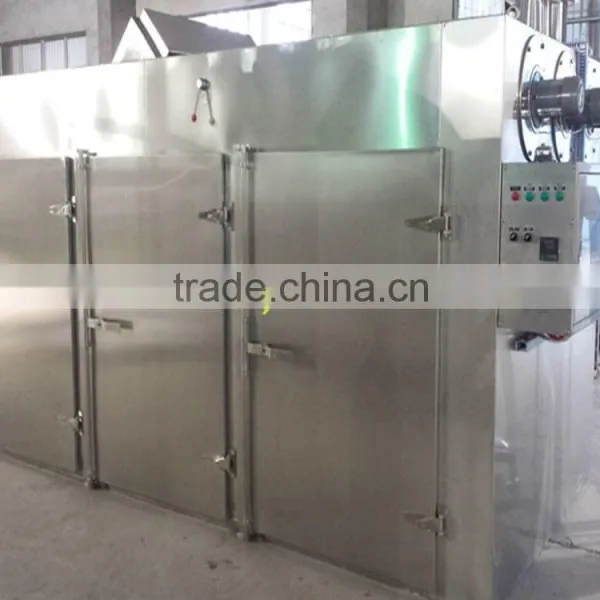

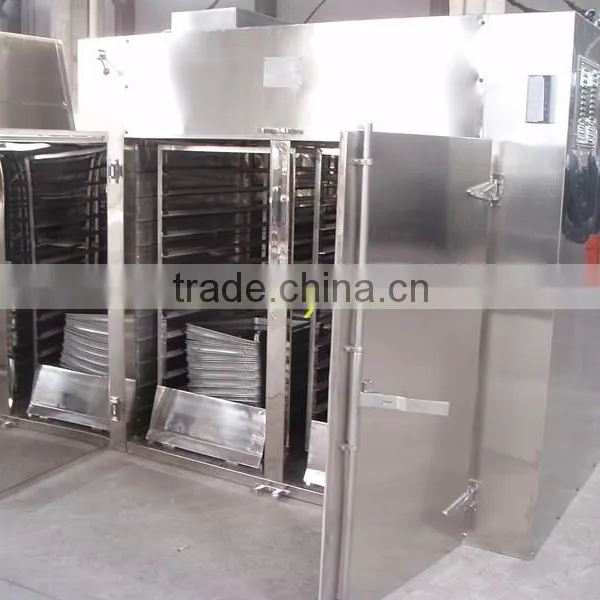

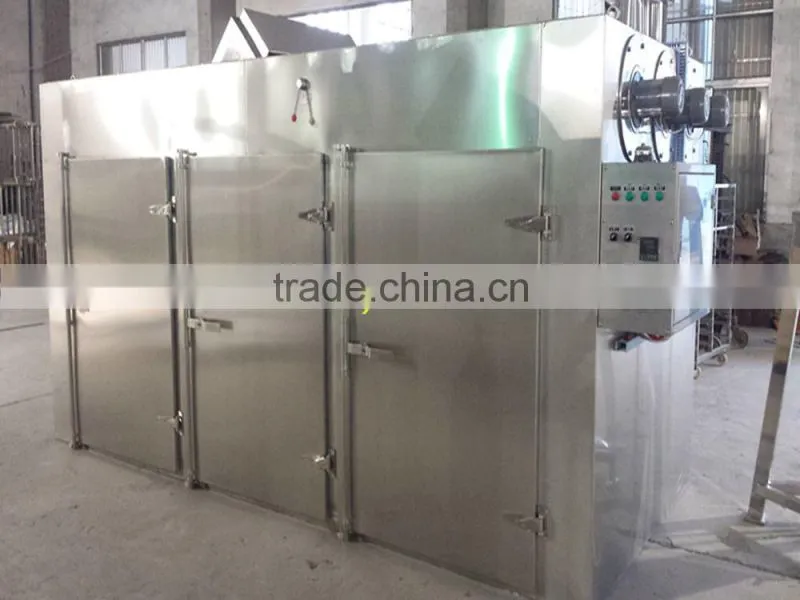

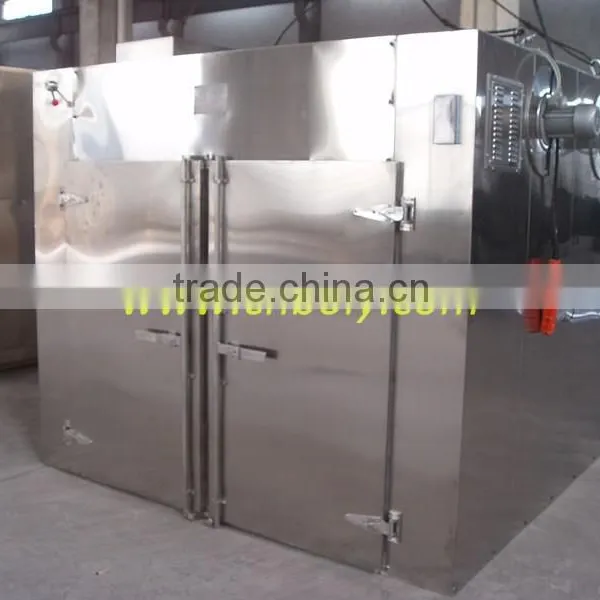

Garlic drying machine
Usage
This machine is widely applied for the heating and dehumidifying of raw materials and products in the lines of pharmacy ,chemical , foodstuff , light industry , heavy industry etc .
Specialty
Great part of hot wind is circulated in the oven with high thermal efficiency ,less energy consumption , The oven is equipped by the adjustable air-distributing plates to utilize the forced ventilating to dry the target materials evenly , The whole machine runs in stable condition ,low noise , self-control temperature , easy installing and maintaining ,and wide application.
Technical Data
Model&Specif. Tech. |
dry amount eachkg |
matched powerkw) |
steam expend (kg/h) |
heat dispelling area |
wind |
diff.in up & down temp. |
collo-cate tray |
Overall sizeL×W×Hmm |
Weight |
collo-cate pushcart |
|
||||||||||
|
|
|||||||||
|
||||||||||
|
|
|
||||||||
JB-B-O |
30 |
0.45 |
6 |
5 |
3450 |
±2 |
24 |
1400×1200×2000 |
800 | 1 |
JB-B-I |
120 |
0.45 |
20 |
20 |
3450 |
±2 |
48 |
2300×1200×2200 |
1500 |
2 |
JB-B-II |
240 |
0.9 |
45 |
40 |
6900 |
±2 |
96 |
2300×2210×2200 |
1800 |
4 |
JB-B-III |
360 |
1.35 |
70 |
80 |
10350 |
±2 |
144 |
3300×2210×2200 |
2200 |
6 |
JB-B-IV |
480 |
1.8 |
90 |
100 |
13800 |
±2 |
192 |
4460×2210×2200 |
2800 |
8 |
Garlic drying machine for dry garlic sample:
1) our engineers are able to go abroad to install the machines
2) one year quality assurance
Guarantee against defects in materials and workmanship of equipment and parts for one year. Any parts in need of replacement will be shipped free of charge but labor for installation will not be included. Warranty does not cover abuse or user error.
3) 24-hour on line service
Any questions will be replied within 24 hours.
1) Our company locates at Wuxi city, very near Shanghai City and it only takes 30 minutes to get to our city by train from Shanghai.
2) We are golden supplier on alibaba with a history of more than 5 years.
And our factory’s history is more than 10 years.
3) We have CE certificate, ISO,BV...etc.
4) Each year,we takes part in a lot of Expos :
for example, FIC, CPHI, API...etc
1) What is hot air oven dryer heating type?
It can dry by hot steam and electric heating.
2) What is the material of the machine?
Usually our machine is made of Stainless steel 304, which meets GMP standard, if you want better, Stainless steel 316L is also okay.
We use full welding and light polishing for the inside of dryer.
3) What is the payment way?
We prefer T/T, 30% advance payment, 70% against shipping documents.
If you want to send inquriy to me about our garlic drying machine, could you please tell me?
1) What material you want to dry, what is its moisture?
2) What capacity you expect ? (kg/h)
3 ) What voltage you want? For example, 380V 50hz 3p; 440V 60Hz,3p; 220V...
(We only provide 3P, because our machines are all for industrial use,not for family.)
5) Usually we use stainless steel 304, if you want stainless steel 316, it's OK and please tell us.
Then our communication will be more efficient.
