Specifications
1,The use of new materials production, has high reliability, long life.2, The product has passed UL.In line with the ROHS

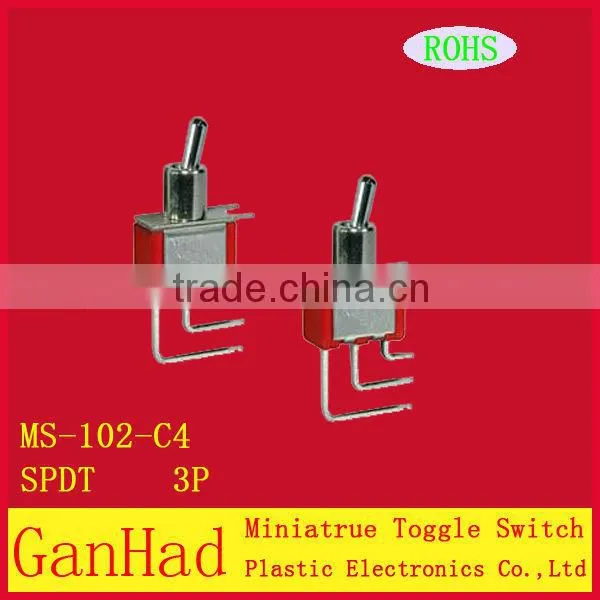

Mini 3-way Toggle Switch &Short handle toggle switch
Specification:
| Rating: | 2A 250V AC;5A 125V AC |
| Current Resistance: | 20MΩMax |
| Insulation Resistance : | 500V DC 1000MΩ Min |
| Dielectric Strength : | 1500V AC,1 Minute |
| Operating trmperature | -55°C--+85°C |
| Electrical life : | 20000 Cycles |
| Housing : | PBT UL94V-0 |
| Terminals: | Silver-plated Brass |
| Handle Options: | A:)H:10.4mm Φ2.9 C:) H:6.8mm Φ2.7 |
| B:)H;23.1mm Φ3.2 D:)H:17.5mm Φ5.9 |
MS-102-C3 ON-ON
MS-112- C3 ON-(ON)
MS-103- C3 ON-OFF-ON
MS-113- C3 ON-OFF-(ON)
MS-123- C3 (ON)-OFF -(ON)
SPDT 3P
Shenzhen Ganhad Plastic Electronics Co.,Ltd: Established in 2001, our factory has been focusing on switch over a decade,
our products are mainly to America, Europe, Asia and Middle East.
Application: Our switches are widely used in the fields of small household products, communication equipment,
energy generator, electric tools, table lamp, electric motor, electric motor car, electric toy, UPS, medical facilities, socket, etc

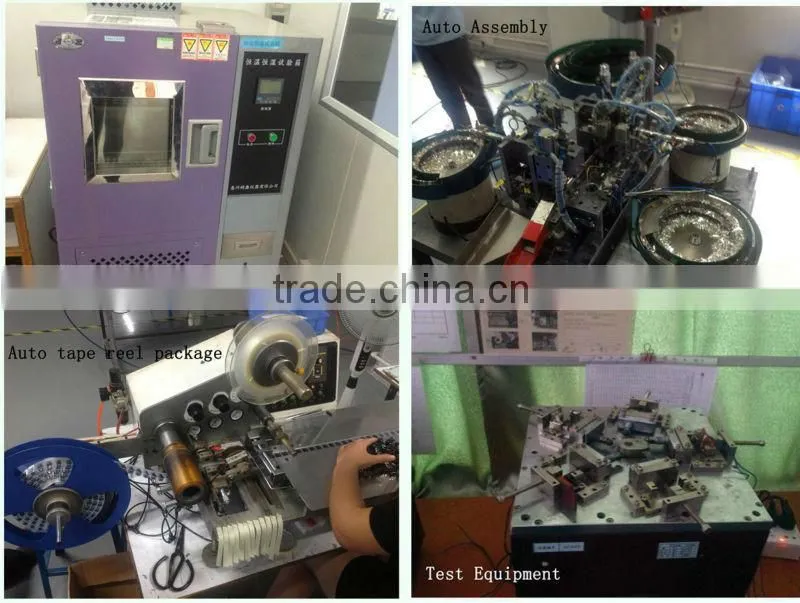

Engineering: We serve product design, mould development, plastic part injection, hardware part pressing and product automatic assembly
Quality: We will inspect supplied material, production process and final product, we completely make quality control for every pass
with inspections including withstand voltage, insulating resistance, conductor, dimension, external appearance, etc.
Meanwhile random sampling is taken for inspections such as products' exotherm, environmental protection and electrical life.
All related raw materials are inspected according to ROHS detective.
Brand: We strive to maintain PRO-SW as our brand and to make professional switch.
...
