Mini Toggle Switch

Specifications

1.Mini Toggle Switch
2. UL .cUL.VDE. ENEC approved
3. comply with ROHS/HF
4. Design as requirement

Specification:

Rating:                                2A 250V AC;5A 125V AC

Current Resistance:           20MΩMax

Insulation Resistance :       500V DC 1000MΩ Min

Dielectric Strength :            1500V AC,1 Minute

Operating trmperature        -55°C--+85°C

Electrical life :                     20000 Cycles

 Housing  :                          PBT UL94V-0

 Terminals:                          Silver-plated   Brass

 Handle Options:                 A:)H:10.4mm  Φ2.9   C:) H:6.8mm  Φ2.7

                                           B:)H;23.1mm Φ3.2   D:)H:17.5mm Φ5.9

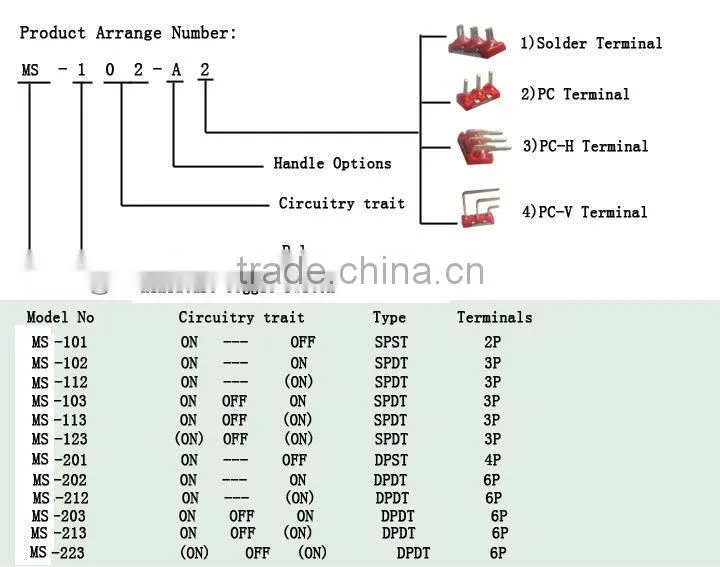

MS-202-F1         ON-ON

MS-212-F1         ON-(ON)

MS-203-F1         ON-OFF-ON

MS-213-F1          ON-OFF-(ON)

MS-223-F1          (ON)-OFF -(ON)

MS-203-3-F1       ON-ON-ON

DPDT                      6P





...
