slide switch
- 50000 Piece / Pieces per Month
- shenzhen or HK
- T/T
- ALPS toggle switch SSSSSS811101 side 7 pin 2nd gear power supply device audio sliding switch
- Egg beater 4-speed jog slide switch
- 12.7*6.6mm SS-12D28 handle height 4mm high current side plug slide switch
- Portable ABS material Whistle / sonic key finder keychain With bright LED flashing torch
- 1000pc/lot ALPS Slide Switch 1.4(H)mm SSSS811101
- 1000pc/lot ALPS mini Automatic Reset Slide Switch SSSS711403
Product Details

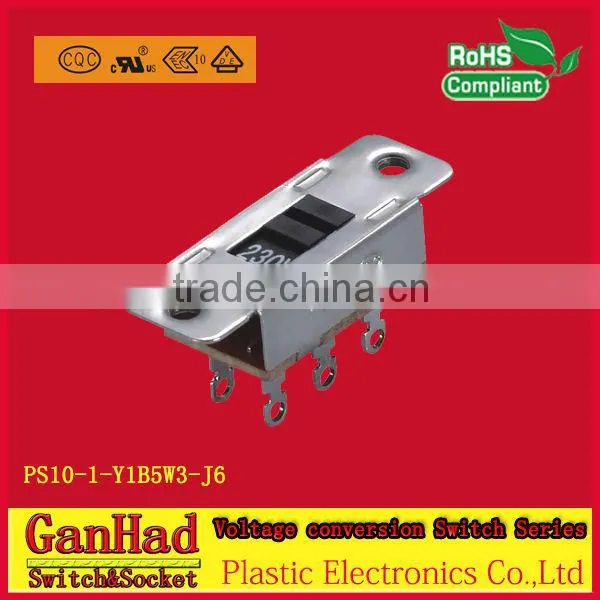

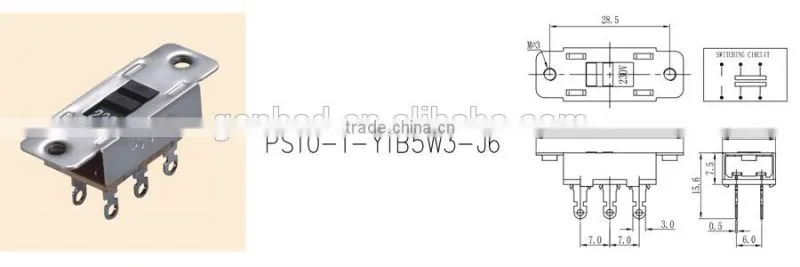

Place of Origin: | Guangdong, China | Brand Name: | ganhad | Model Number: | PS10-1-Y1B5W3-J6 |
Max. Current: | 6A | Max. Voltage: | 250VAC | Mechanical Life: | 6000 cycles |
Product Description
Specifications
1.18 years manufacturing experience2. UL .cUL.VDE. ENEC approved
3. comply with ROHS/HF
4. Design as requirement
Rated load: 3A 250VAC
6A 125VAC
Initial contact resistance: 50mΩ MAX
Insulation resistance: 100MΩ
Withstand voltage: 1500VAC for terminal to terminal
3000VAC for terminal to frame
Mechanical life: 6000 cycles
Switch for the environmental protection
Terminals type: quick contact and soldering
Working force
Single pole:500±300gf , double pole:1200±400gf
Main material: actuator : PBT
terminal contact: brass
- 1.25 Years' experience of Manufacture.
- 2.Variety of Designs, Provide Professional & Original Fashionable Designs, with more than thousand designs.
- 3.Original manufacturer with direct factory price, Competitive & Fashionable.
- 4.High Standard management for quality control.
- 5.Small order acceptable: 1000pcs are welcome.
- 6.Safe payment terms: T/T, Western Union, Paypal are available.
- 7.Prompt Delivery & Lowest shipping cost : We can get low discount for the freight .
- 8.OEM available, Customers' designs are warmly welcome.
- 9.Excellent Service.
Shenzhen Ganhad Plastic Electronics Co.,Ltd: Established in 2001, our factory has been focusing on switch over a decade, our products are mainly to America, Europe, Asia and Middle East.
Application: Our switches are widely used in the fields of small household products, communication equipment, energy generator, electric tools, table lamp, electric motor, electric motor car, electric toy, UPS, medical facilities, socket, etc
Engineering: We serve product design, mould development, plastic part injection, hardware part pressing and product automatic assembly
Quality: We will inspect supplied material, production process and final product, we completely make quality control for every pass with inspections including withstand voltage, insulating resistance, conductor, dimension, external appearance, etc. Meanwhile random sampling is taken for inspections such as products' exotherm, environmental protection and electrical life. All related raw materials are inspected according to ROHS detective.
Brand: We strive to maintain PRO-SW as our brand and to make professional switch.
Application :They are widely used in household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc.
Others :
Please kindly inform us which items you are interested in, the best price will be provided upon receipt of your inquiry. Any questions about more items, please feel free to contact us.
We are sincerely looking forward to establish cooperative relationship with you.
Our Advantage :
1. Rocker Switch are widely used in home appliance and electronic equipments.
2. We can design and produce according to your samples/ drawings (OEM).
3. Professional team, standard processes, standard production, quality products.
4. Safety, on-time delivery, credit suppliers.
5.Our products has been exported to Europe, USA, South east Asia and so on.In addition, has close cooperations with control4,Panasonic,JVS and Dimplex.
