Home > Products > Slide Switch Series > High quality 1P2T 0.3A 50V AC slide switch

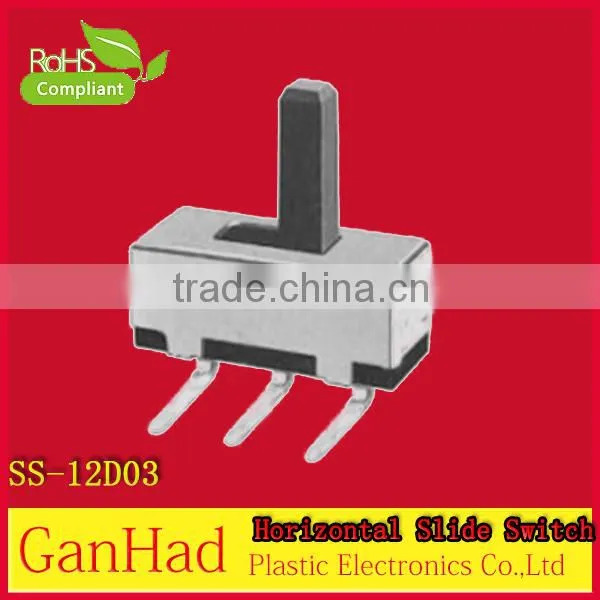

High quality 1P2T 0.3A 50V AC slide switch
- 10000 Piece / Pieces per Month
- shenzhen or HK
- T/T
- ALPS toggle switch SSSSSS811101 side 7 pin 2nd gear power supply device audio sliding switch
- Egg beater 4-speed jog slide switch
- 12.7*6.6mm SS-12D28 handle height 4mm high current side plug slide switch
- Portable ABS material Whistle / sonic key finder keychain With bright LED flashing torch
- 1000pc/lot ALPS Slide Switch 1.4(H)mm SSSS811101
- 1000pc/lot ALPS mini Automatic Reset Slide Switch SSSS711403
Product Details

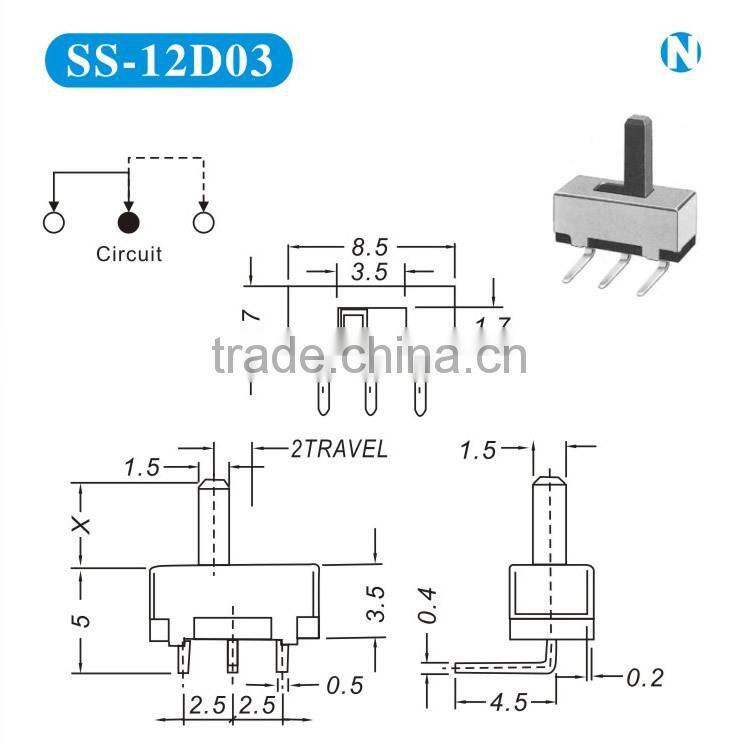

Place of Origin: | Guangdong, China | Brand Name: | ganhad | Model Number: | SS-12D03 |
Max. Current: | 0.3A | Max. Voltage: | 50V AC | Mechanical Life: | 10000cycles |
Product Description
Specifications
1.18 years manufacturing experience2. UL .cUL.VDE. ENEC approved
3. comply with ROHS/HF
4. Design as requirement
Product Description
The slide switch is to make the circuit switched on or off by sliding the switch handle, so as to achieve the purpose of switching circuit. Slide switch commonly used varieties of single pole double bit, three bit, bipolar uni polar and bipolar three bit, which is generally used in low voltage circuit, has the characteristics of flexible slider action, stable and reliable performance, slide switch are mainly used in: all kinds of equipment / instrumentation equipment, all kinds of electronics, fax machines, audio equipment, medical equipment,beauty equipment, and other electronic products .
Because the products are used directories, so a lot of people only know that the main directory. So you are not sure what type, can give us pictures,we will have professionals to help you identify.
Specification
Technical indicator
Temperature : -25~85℃
Rating : DC 0.1A 120V
Contact resistance : ≤0.03Ω
Withstand resistance : ≥100MΩ
Working force : 1.3±0.5N/
Withstand voltage : AC 500V(50Hz)/min
Life : 10000 cycles
Main component
1.ironclad(Material:iron ;Treatment process:through the plating-nickel or clay pot black process to prevent oxidation
2.Plastic handle(material:POM is usual,PA is used in fire retardant ,high-temperature resistance.;Treatment process:injection molding)
3.Terminal(material:phosphor copper; Treatment process: silvering plating)
4.Insulating base(Material:Bakelite plate; Treatment process:punch forming)
5.Contact code(Material:phosphor copper; Treatment process:silvering plating)
6.Circular bead(Material:stainless steel; Treatment process: nickel plating)
7.Catapult(Material:bronze; Treatment process:punch forming)
8.Decorative oil(Material:red oil or green oil. Applied to the contact area between terminal and bottom.
Non-toxic and environment protection)
Application
1.Audio-visual:MP3/MP4 audio
2.digital production:digital camera etc
munication products:mobile phone/car phone/telephone/building equipment/PDA etc
4.security production: TLKS-PV /monitor
5.toy: electronic toy
puter production: camera
ness equipment: body fat scales/treadmill
dical equipment: blood pressure monitor/ thermometer/ hospital call system
AND SO ON
If you have special requirements, we can according to your requirements for packaging.
The default package: a package for 1000pcs a white transparent plastic bag.
Small carton: 30*20*15CM
Medium carton: 36*36*33CM
Big carton: 50*38*31CM
Delivery period:
Less than 10Kpcs for a period of 7-15 days of delivery,
Less than 100Kpcs for a period of 15-20 days of delivery,
More than 100Kpcs delivery please negotiate with us.
Please note (delivery settlement is our confirming receipt of second days after the payment start. Does not include the international express delivery time )
Shenzhen GanHad Plastic Electronics Co.,Ltd: Established in 2001, our factory has been focusing on switch over a decade, our products are mainly to America, Europe, Asia and Middle East.
Application: Our switches are widely used in the fields of small household products, communication equipment, energy generator, electric tools, table lamp, electric motor, electric motor car, electric toy, UPS, medical facilities, socket, etc
Engineering: We serve product design, model development, plastic part injection, hardware part pressing and product automatic assembly
Quality: We will inspect supplied material, production process and final product, we completely make quality control for every pass with inspections including withstand voltage, insulating resistance, conductor, dimension, external appearance, etc. Meanwhile random sampling is taken for inspections such as products exotherm, environmental protection and electrical life. All related raw materials are inspected according to ROHS detective.
Brand: We strive to maintain PRO-SW as our brand and to make professional switch.
Our switch have certification CQC, CE, UL, VDE, TUV. CB,accord with ROHS and REACH. We got customers' trust by the high quality product, reasonable price and delivery on time . Hope your inquiry,we will good service to you.
Look forward hearing from you soon!
This is our company's website, you are always welcome to visit!
http://ganhad.en.china.cn/
More About GanHad Switch.
· 1.25 Years' experience of Manufacture.
· 2.Variety of Designs, Provide Professional & Original Fashionable Designs, with more than thousand designs.
· 3.Original manufacturer with direct factory price, Competitive & Fashionable.
· 4.High Standard management for quality control.
· 5.Small order acceptable: 1000pcs are welcome.
· 6.Safe payment terms: T/T, Western Union, Paypal are available.
· 7.Prompt Delivery & Lowest shipping cost : We can get low discount for the freight .
· 8.OEM available, Customers' designs are warmly welcome.
· 9.Excellent Service.
