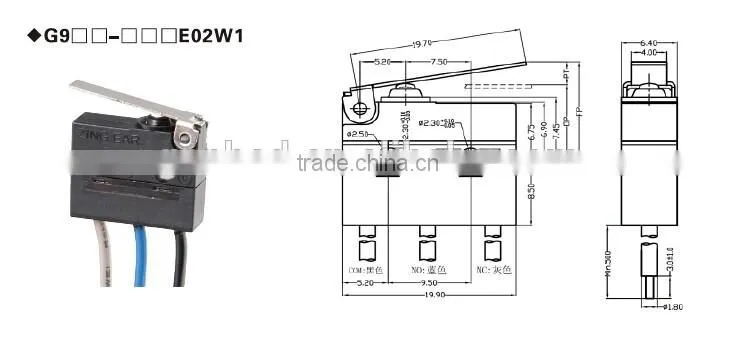

Help CenterG9 Sealed Subminiature Micro Switch
Related Products
-
G9 Sealed Subminiature Micro Switch IP67NegotiableMOQ: 1000 Pieces -
G9 Sealed Subminiature Micro Switch IP67NegotiableMOQ: 1000 Pieces
-
G9 Sealed Subminiature Micro Switch IP67NegotiableMOQ: 1000 Pieces
-
G9 Sealed Waierproof Mirco Switch IP67NegotiableMOQ: 1000 Pieces
-
G9 Sealed Subminiature Micro Switch IP67NegotiableMOQ: 1000 Pieces
Specifications
1.18 years manufacturing experience2. UL .cUL.VDE. ENEC approved
3. comply with ROHS/HF
4. Design as requirement
Feature:
Dust and waterproof (IP67)design
Small compact size
Long life, high reliability
Variety of terminals and levers
Widely used in auto, appliance and other industry control
Application:
Car |
Pencil sharpener |
Phone |
Money sorter |
Air-condition |
Food processor |
Computer |
Electric knife |
Humidifier |
Toy car |
Electric alarm |
Juice extractor |
Timer |
Lighting equipment |
Mixer&meat grinder |
Electric frypan |
Game controller |
Gas detector |
Pump |
|
Parameters:
Rating: 0.1A 125/250VAC 48VDC/Gold plated contact optional
UL:5A 125/250VAC
ENEC:6A 125/250VAC μ 25T120
Operating frequence: electrical:10-30cycles/minute
Mechanical: 120cycles/minute
Initial contact resistance:100mΩ max
Insulation resistance: 100mΩ min 500VDC
Dielectric strength: AC 1,000V RMS(50-60Hz)
Storge temperature: -25°C~+120°C
Storge temperature: 85%RH Max
Service life: electrical: 6,000~50,000/cycles
Mechanical:500,000/cycles
Shenzhen Ganhad Plastic Electronics Co.,Ltd: Established in 2001, our factory has been focusing on switch over a decade, our products are mainly to America, Europe, Asia and Middle East.
Application: Our switches are widely used in the fields of small household products, communication equipment, energy generator, electric tools, table lamp, electric motor, electric motor car, electric toy, UPS, medical facilities, socket, etc
Engineering: We serve product design, mould development, plastic part injection, hardware part pressing and product automatic assembly
Quality: We will inspect supplied material, production process and final product, we completely make quality control for every pass with inspections including withstand voltage, insulating resistance, conductor, dimension, external appearance, etc. Meanwhile random sampling is taken for inspections such as products' exotherm, environmental protection and electrical life. All related raw materials are inspected according to ROHS detective.
Brand: We strive to maintain PRO-SW as our brand and to make professional switch.
Application :They are widely used in household appliances, electric force, telecommunications, machine tool, vessel, textile, printing, Mining machine, Mustic Instrument, etc.
Others :
Please kindly inform us which items you are interested in, the best price will be provided upon receipt of your inquiry. Any questions about more items, please feel free to contact us.
We are sincerely looking forward to establish cooperative relationship with you.
Our Advantage :
1. Rocker Switch are widely used in home appliance and electronic equipments.
2. We can design and produce according to your samples/ drawings (OEM).
3. Professional team, standard processes, standard production, quality products.
4. Safety, on-time delivery, credit suppliers.
5.Our products has been exported to Europe, USA, South east Asia and so on.In addition, has close cooperations with control4,Panasonic,JVS and Dimplex.
More About Ganhad Switch.
- 1.25 Years' experience of Manufacture.
- 2.Variety of Designs, Provide Professional & Original Fashionable Designs, with more than thousand designs.
- 3.Original manufacturer with direct factory price, Competitive & Fashionable.
- 4.High Standard management for quality control.
- 5.Small order acceptable: 1000pcs are welcome.
- 6.Safe payment terms: T/T, Western Union, Paypal are available.
- 7.Prompt Delivery & Lowest shipping cost : We can get low discount for the freight .
- 8.OEM available, Customers' designs are warmly welcome.
- 9.Excellent Service.
