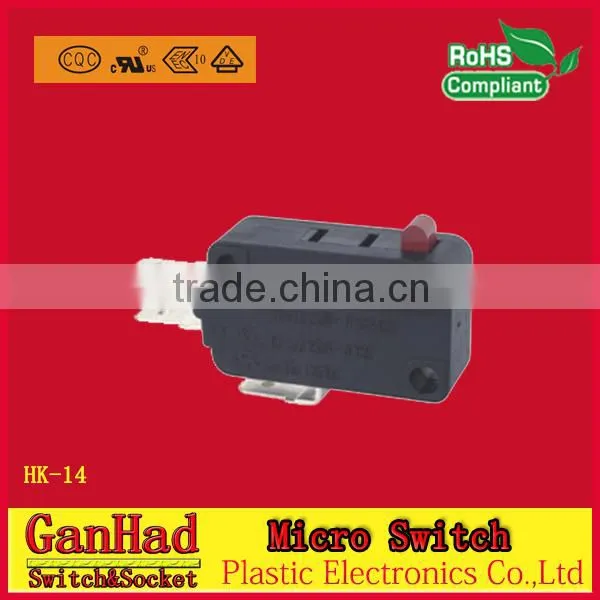

Mediu Micro Switch

Name: Mediu Micro Switch
Brand: Ganhad
SKU: 112933441
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Ganhad

Model Number:

HK-14

Shenzhen Ganhad Plastic Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen/Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name Ganhad

Model Number HK-14

Max. Current 0.1a 125v ac

Max. Voltage 12vdc

Operating Temperature -40~+85

Protection Level IP67

Specifications

1,Subminiature Sealed Micro Switch
2,Designed for water and dust tight(IP67)
3,Global safety approvals
4,Long life

Subminiature Sealed Micro Switch:

Features:

1,Designed for water and udst tight(IP67)

2,Small compact size

3,Global safety approvals

4,Long life and high reliability

5,Wide range of wiring terminals

6,Varirty of levers

7,Widely used in automotive electronics,appliance and industrial control

8,Customized designs

Application:

Car Electric tooth brush

Air-conditioner Toys

Communication Home appliance

Motor control

Parameters:

Rating	0.1A,125/250VAC;3A/12VDC;0.1A/48VDC
Operating Frequency	Electrical:0.1A-120cycles/min;3A-10~30cycles/min
Operating Frequency	Mechanical:120 cycles/min
Contact Resistance	100mΩ Max(without wire type)
Insulation Resistance	100mΩ Min
Vibration durability	10~55Hz,move0.75mm(p-p)
Dielectric Strength	500VAC(50~60Hz)
Storage Temperature	`-40°C~+85°C
Storage Humidity	85%RHMax
Service Life	Electrical:Min.100,000cycles
Service Life	Mechanical:500,000cycles
