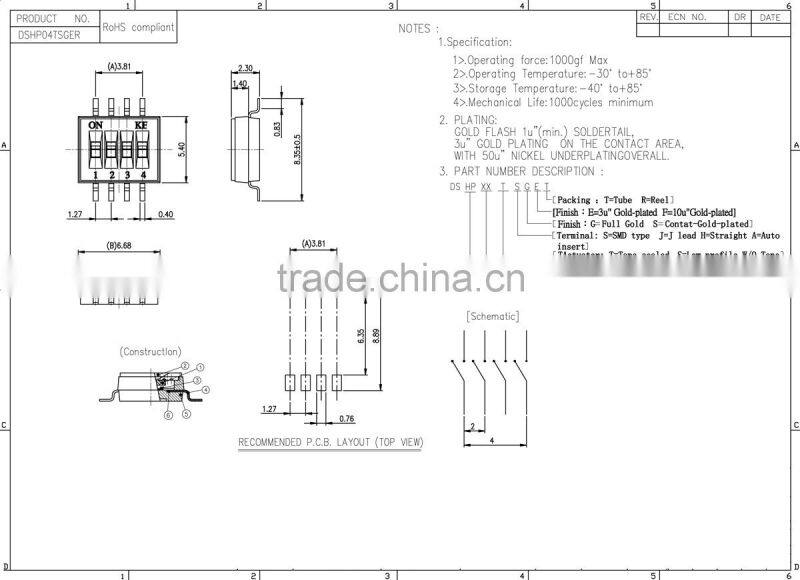

Help Center4 Pin 1.27mm SMD DIP Switch
Related Products
Specifications
1.18 years manufacturing experience2. UL .cUL.VDE. ENEC approved
3. comply with ROHS/HF
4. Design as requirement
Spec:
| Contact Resistance | 1000mΩ |
| Insulation Resistance | 100mΩ/DC500V |
| Withstanding Voltage | 500V AC/1 Min |
| Operation Temp | -20°C-+85°C |
| Operation Force | 400gf max |
| Mechanical Life | 2000 Operations Min |
| Housing | PBT UL94V-0 |
| Terminals | gold-plated phosphor bronze |
Shenzhen Ganhad Plastic Electronics Co.,Ltd: Established in 2001, our factory has
been focusing on switch over a decade, our products are mainly to America, Europe, Asia
and Middle East.
Application: Our switches are widely used in the fields of small household products, comm
unication equipment, energy generator, electric tools, table lamp, electric motor, electric
motor car, electric toy, UPS, medical facilities, socket, etc
Engineering: We serve product design, mould development, plastic part injection, hardware
part pressing and product automatic assembly
Quality: We will inspect supplied material, production process and final product, we completely
make quality control for every pass with inspections including withstand voltage, insulating
resistance, conductor, dimension, external appearance, etc. Meanwhile random sampling is
taken for inspections such as products' exotherm, environmental protection and electrical life.
All related raw materials are inspected according to ROHS detective.
Brand: We strive to maintain PRO-SW as our brand and to make professional switch.
Package:
...
