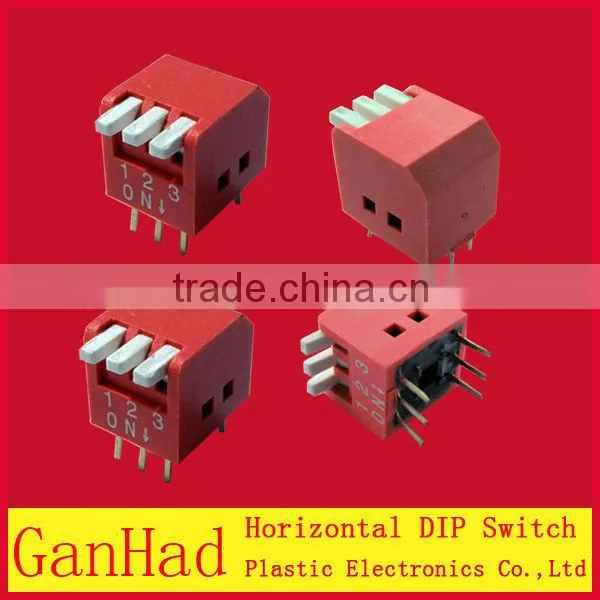

3Pin Red DIP Switchs/Horizontal 3Pin 2.54 Pin Distance Dip Switch With ROHS
US$ 0.1 - 0.18
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
GanHad
Model Number:
CY-2-3P
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen OR HongKong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
6Pin Red&blue 6 Pin Dip SwitchUS$ 0.1 - 0.18MOQ: 1000 Pieces -
7Pin Red DIP Switchs/Horizontal 7Pin 2.54 Pin Distance Dip Switch With ROHSUS$ 0.25 - 0.35MOQ: 2000 Pieces
-
8Pin Red DIP Switchs/Horizontal 8Pin 2.54 Pin Distance Dip Switch With ROHSUS$ 0.28 - 0.38MOQ: 2000 Pieces
-
10Pin Red DIP Switchs/Horizontal 10Pin 2.54 Pin Distance Dip Switch With ROHSUS$ 0.3 - 0.4MOQ: 2000 Pieces
-
12Pin Red DIP Switchs/Horizontal 12Pin 2.54 Pin Distance Dip Switch With ROHSUS$ 0.36 - 0.46MOQ: 2000 Pieces
Place of Origin
China
Brand Name
GanHad
Model Number
CY-2-3P
Max. Current
25mA
Max. Voltage
24V DC
Specifications
Twin contact designed to ensure stable contact.Highly resistant to physical shock&vibration.All materials are UL 94V-0 grade.Specification:
Contact Resistance : 1000mΩ
Insulation Resistance : 100mΩ/DC500V
Withstanding Voltage : 500V AC/1 Min
Operation Temp : -20°C-+85°C
Operation Force : 400gf max
Mechanical Life : 2000 Operations Min
Housing : PBT UL94V-0
Terminals: Gold-plated phosphor bronze

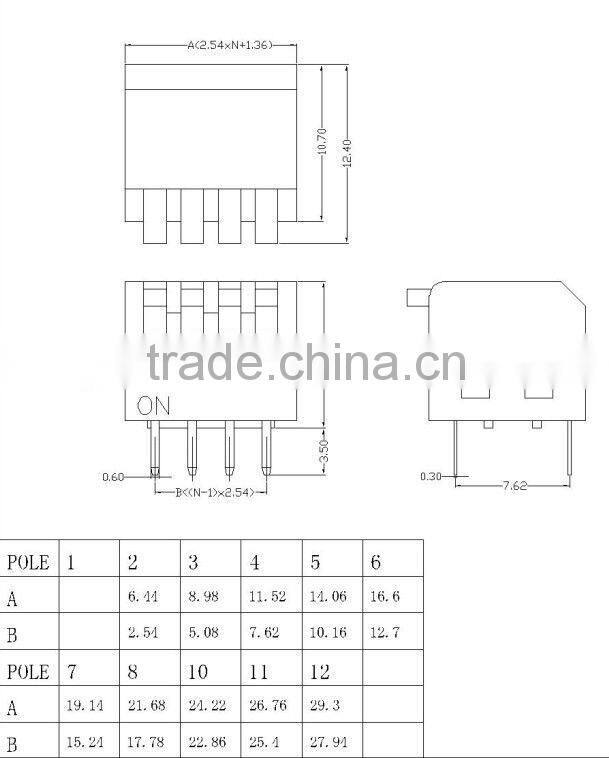

The following dimensions for general reference calculation size chart public. Such as the need for detailed information please contact our company.
...
