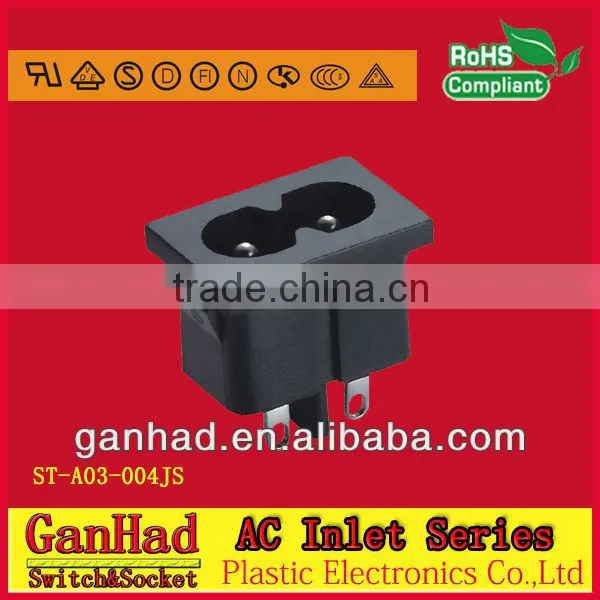

IEC8 Power Socket &IEC60320 UL498 AC Inlet
- ShenZhen OR HongKong
- T/T
You May Like
Product Details
| Place of Origin | China | Brand Name | Ganhad | |

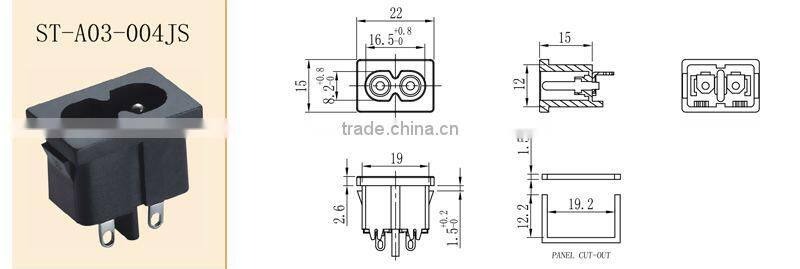

| Model Number | ST-A03-004JS | Type | Plug with Socket | |
| Grounding | Standard Grounding | Rated Voltage | 250V | |
| Rated Current | 2.5A | Application | Industrial |
Product Description
Specifications
UL .cUL.VDE.SAA.EK.SAA approved ,comply with ROHS/HF .SPECIFICATION:
Rating : 2.5A 250V
Standards: UL498, IEC60320,GB17465
Initial Contact Resistance: 20mΩ max.
Insulation resistance: 100MΩ (min) for DC 500V
Withstand voltage: 1500VAC for terminal to terminal 1 minute
3000VAC for terminal to body 1 minute
Working temperature: ≤105°C
Main material: Housing : PA66 , PBT , PC
Terminals : Tin-plated brass
Certificates: UL.CUL,CCC,VDE,SEMKO,NEMKO,FIMKO,
DEMKO.SAA,EK
