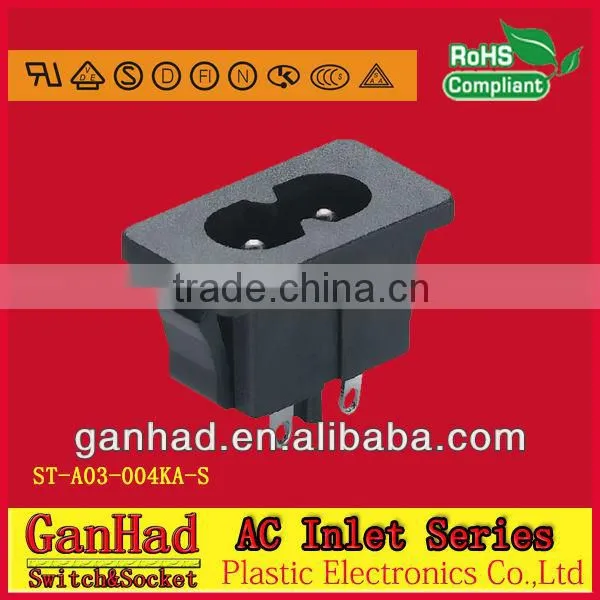

High Quality C8 ac Inlet & IEC60320 UL498 AC Inlet
- ShenZhen OR HongKong
- T/T
You May Like
Product Details
| Place of Origin | China | Brand Name | Ganhad | |
| Model Number | ST-A03-004KA-S | Type | Plug with Socket | |
| Grounding | Standard Grounding | Rated Voltage | 250V | |
| Rated Current | 2.5A | Application | Industrial |
Product Description
Specifications
1.17 years manufacturing experience;2.UL .cUL.VDE.SAA.EK.SAA approved;
3.Comply with ROHS/HF;
4.Design as requirement.
SPECIFICATION:
| Rating : | 2.5A 250V |
| Standards: | UL498, IEC60320,GB17465 |
| Initial Contact Resistance: | 20mΩ max. |
| Insulation resistance: | 100MΩ (min) for DC 500V |
| Withstand voltage: | 1500VAC for terminal to terminal 1 minute |
| 3000VAC for terminal to body 1 minute | |
| Working temperature: | ≤105°C |
| Main material: | Housing : PA66 , PBT , PC |
| Terminals : | Tin-plated brass |
| Certificates: | UL.CUL,CCC,VDE,SEMKO,NEMKO,FIMKO,DEMKO.SAA,EK |

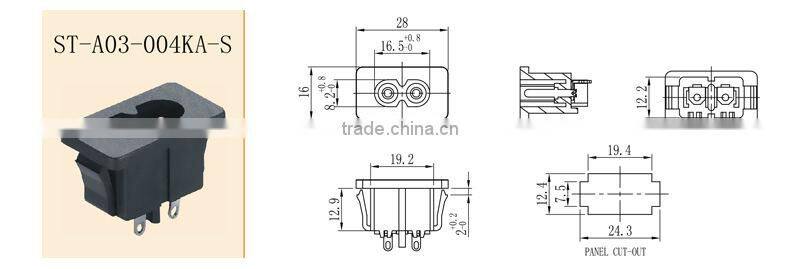

Drawing:
products order:
Our advantage :
1.17 years manufacturing experience;
2.UL .cUL.VDE.SAA.EK.SAA approved;
3.Comply with ROHS/HF;
4.Design as requirement.
Packaging standards:
About the sample:
All samples requested by customers are delivered within 3days after confirming, and Samples are available within 10-15pcs. Offering anytime without delay by email,fax or air post.price is based on the demand quality per lot,newest products brochure is offered to clients per year.
Our Factory picture :
