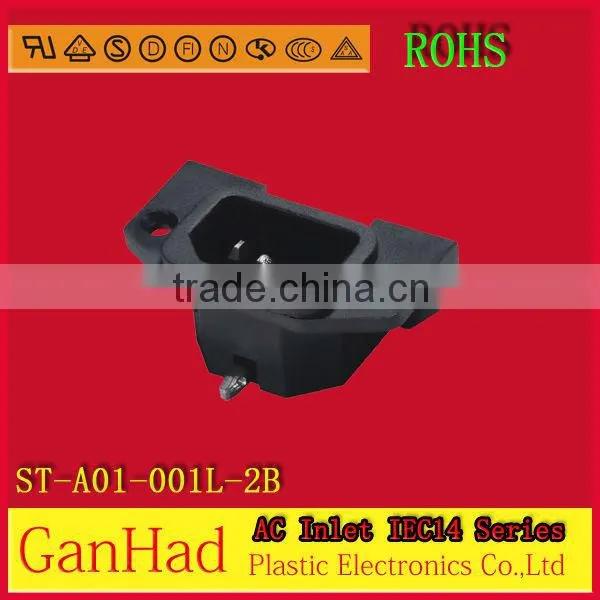

3 Pin IEC14 AC Inlet Power Socket

3 Pin IEC14 AC Inlet Power Socket thumbnail-1
3 Pin IEC14 AC Inlet Power Socket photo-1
US$ 0.35 - 0.4 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
Ganhad
Model Number:
ST-A01-001L-2B
Contact Supplier Request Quote Chat Now
Shenzhen Ganhad Plastic Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen OR HongKong
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name Ganhad
Model Number ST-A01-001L-2B
Type Plug with Socket
Grounding Standard Grounding
Rated Voltage 250
Rated Current 15A
Application Industrial

Specifications

1,3 pin IEC14 AC Inlet power socket
2,UL .cUL.VDE.SAA.EK.SAA approved
3,comply with ROHS/HF .

 3 pin IEC14 AC Inlet  power socket



SPECIFICATION

Rating

15A 250VAC   10A 250VAC

Standards

UL498, IEC60320,GB17465

Initial Contact Resistance

20mΩ max.

Insulation resistance

100MΩ (min) for DC 500V

Withstand voltage

1500VAC for terminal to terminal 1 minute

3000VAC for terminal to body 1 minute

Working temperature

≤105°C

Main material

Housing :   PA66 , PBT , PC

Terminals :  Tin-plated brass

Certificates

UL.CUL,CCC,VDE,SEMKO,NEMKO,FIMKO,DEMKO.SAA,EK

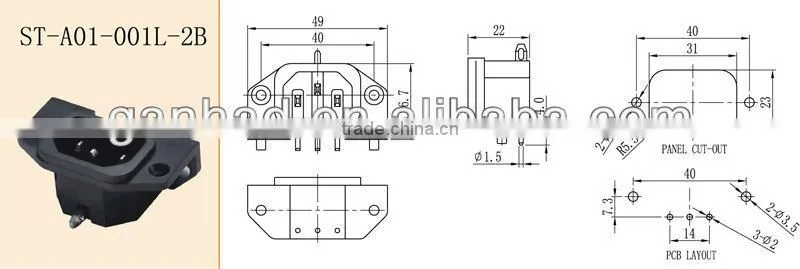

3 pin IEC14 AC Inlet power socket



3 pin IEC14 AC Inlet power socket



Shenzhen Ganhad Plastic Electronics Co.,Ltd: Established in 2001, our factory has been focusing on switch over a decade, our products are mainly to America, Europe, Asia and Middle East.



Application: Our switches are widely used in the fields of small household products, communication equipment, energy generator, electric tools, table lamp, electric motor, electric motor car, electric toy, UPS, medical facilities, socket, etc



Engineering: We serve product design, mould development, plastic part injection, hardware part pressing and product automatic assembly



Quality: We will inspect supplied material, production process and final product, we completely make quality control for every pass with inspections including withstand voltage, insulating resistance, conductor, dimension, external appearance, etc. Meanwhile random sampling is taken for inspections such as products' exotherm, environmental protection and electrical life. All related raw materials are inspected according to ROHS detective.



Brand: We strive to maintain PRO-SW as our brand and to make professional switch.



3 pin IEC14 AC Inlet power socket3 pin IEC14 AC Inlet power socket
