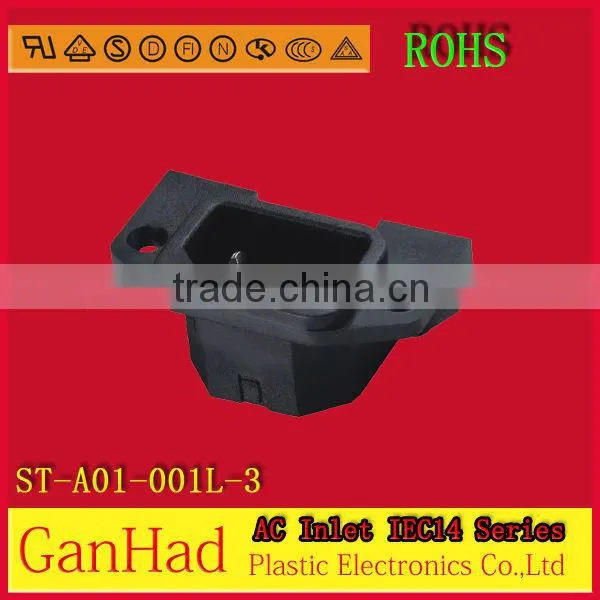

Help CenterICE14 3 Pin AC Inlet Power Socket
US$ 0.35 - 0.4
MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
Ganhad
Model Number:
ST-A01-001L-3
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen OR HongKong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
3 Pin AC Inlet& ROHS/HF and UL .cUL.VDE.SAA.EK.SAA Approved.US$ 0.25 - 0.3MOQ: 1000 Pieces -
3 Pin AC Inlet& ROHS/HF and UL .cUL.VDE.SAA.EK.SAA Approved.US$ 0.25 - 0.3MOQ: 2000 Pieces
-
3 Pin AC Inlet& Rice Cooker Power Socket &UL .cUL.VDE.SAA.EK.SAA ApprovedUS$ 0.25 - 0.3MOQ: 2000 Pieces
-
3 Pin AC Inlet & Power Sockte With IEC 14 Approved VDE UL CULUS$ 0.25 - 0.3MOQ: 2000 Pieces
-
3 Pin AC Inlet With Fuseholder &AC Power Socket With FuseholderUS$ 0.45 - 0.55MOQ: 2000 Pieces
Place of Origin
China
Brand Name
Ganhad
Model Number
ST-A01-001L-3
Type
Plug with Socket
Grounding
Standard Grounding
Rated Voltage
250
Rated Current
15A
Application
Industrial
Specifications
1,ICE14 3 pin AC Inlet power socket2,UL .cUL.VDE.SAA.EK.SAA approved
3,comply with ROHS/HF .

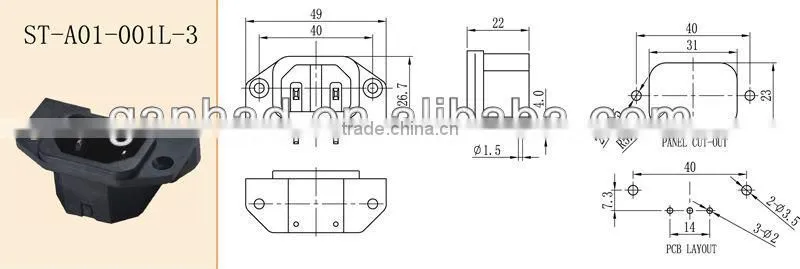

SELL HOT!!ICE14 3 pin AC Inlet power socket
SPECIFICATION
Rating |
15A 250VAC 10A 250VAC |
Standards |
UL498, IEC60320,GB17465 |
Initial Contact Resistance |
20mΩ max. |
Insulation resistance |
100MΩ (min) for DC 500V |
Withstand voltage |
1500VAC for terminal to terminal 1 minute 3000VAC for terminal to body 1 minute |
Working temperature |
≤105°C |
Main material |
Housing : PA66 , PBT , PC |
Terminals : Tin-plated brass | |
Certificates |
UL.CUL,CCC,VDE,SEMKO,NEMKO,FIMKO,DEMKO.SAA,EK |
