Description
Cable type and number of pairs: cable UTP (unshielded twisted pair -- unshielded twisted pair) to the internal pads, 4 pairs (solid),
Category 5e.
Specifications
• Conductor: bare copper wire O0.51 ± 0.01 mm, 24 AWG
• Insulation: High density polyethylene, minimum thickness of 0.18 mm
• Conductor diameter 0.9 ± 0.02 mm
• 4 twisted pairs are covered with PVC jacket (minimum thickness of the shell 0.4 mm)
• The external cable diameter of 5.1 ± 0.2 mm
• bending radius: 8xO during installation, 6xO with vertical
Cabling, 4xO the horizontal cabling

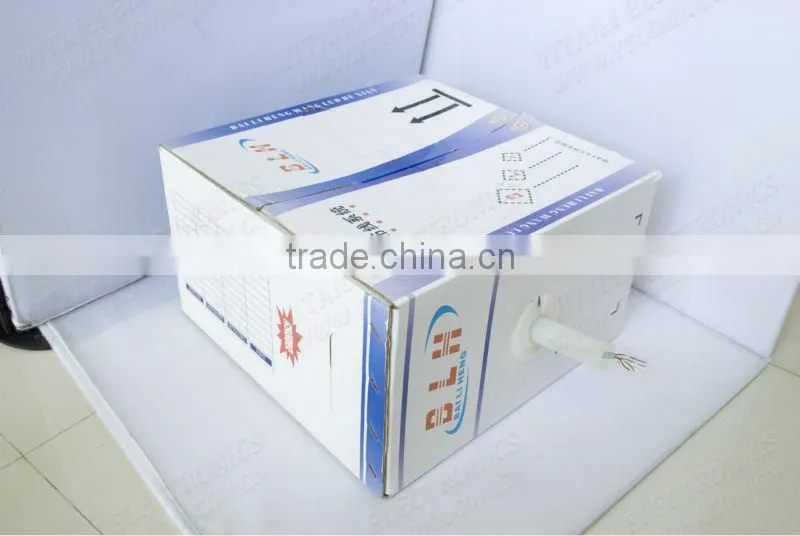

• Standard packing: 18.5 x 37.5 x 36.5 cm (W x H x D) - 305 m
• Weight without cable, weight: 9.7 kg
• Cable Weight with packaging: 10.5 kg
• Weight 1 km of cable: 31.8 kg
• Operating temperature: -20 ° C - +75 ° C
• Fire: CM
• Standards: UL444/UL1581, TIA / EIA 568B.2
Electrical
Conductor resistance at 20 ° C 9.38 Om/100 m
DC Resistance Unbalance 5%
Capacitive unbalance pair to ground 330 pF/100m
Impedance 0.772-100 MHz 85-115 Ohm
Maximum working capacity of 5.6 nF / m
