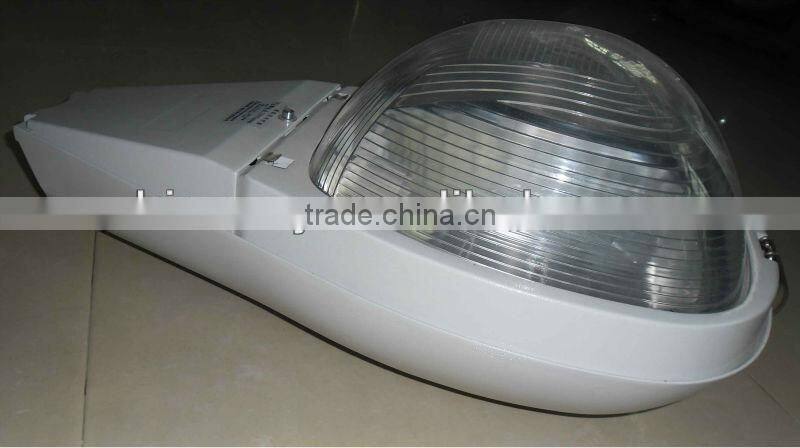

Help CenterSolar Path Light
Related Products
Specifications
Protection Grade:IP65Material:Die-casting aluminum body, high-purity aluminum Reflector, tempered glass
Color:Any
Parameters
| Item No. | XY-154 |
| Protection grade | IP 65 |
| Protection | 1 |
| Sutiable source | 400W |
| Product size | 670*350*200mm |
| Installation diameter | φ60 |
| For height | 5m-12m |
| Body | Die casting aluminum |
| Reflector | High -purity aluminum,anodized and polished finishing |
| Reflector thickness | 0.2,0.3,0.4,0.6,0.8,1.0,1.2mm |
| Glass | Tempered glass/Toughened Glass |
| Locker | stainless steel |
| Base | E27 E39 E40 |
| Sealing | Silicon gasket between glass and reflector |
| Coating | sprayed with plastics outdoor |
| Light source | high pressure sodium lamp,metal halide lamp,energy saving lamp,mercury lamp |
IP65/66 :silicon gasket between the reflector and glass
silicon gasket between the up and down die casting aluminum body
cheap one and high temperature resistant
there are cheap and good gasket for your choice
free /normal /high temperature resistant
No.1:for free,if you needed,pls tell us while give us order
Material: aluminum-----local material or ZL102 standard
reflector-------local or AL1090 standard
Color:any color available,local & imported powder choice,anti-corrosion
for the good price one,the inside are not coated.
Grain size:(1)smooth, (2)fine grain, (3)coarse grain
Reflector:
- regular reflector (E27/E39/E40) for high pressure sodium lamp/metal halide lamp/mercury lamp/energy saving lamp
- flat reflector for LED
- die casting aluminum reflector G12 for ceramic metal halide lamp
this year,we have new thought about the LED light fixture,not only change the traditional reflector to the flat reflector,
we have the below designs with hole for heat dissipation,the cost is much lower than the LED light fixure.
and for the traditional light fixture,you could open holes on the surface too.round or square
the terminal with high temperature resistant lines
respirator
Special ventilation design, effectively reduce the electrical operating temperature. Lamp holder parts have function of automatic respirator ,guarantee the lamp life.
Reflector & glass:reflector workshop below
Factory photos
Step 1:die casting aluminum parts
Step 2:Coating
Step 3:Packing
- reglar packing without foam,just inside plastic bag and outside carton
- for big radian glass,we will pack the glass and foam seperatly
- high request packing plastic bag ,outside carton box with foam
Materials & Characters
Die casting aluminum body,smooth and simple construction
High -purity aluminum reflector,anodized and polished finishing to ensuretable optical performance.
Tempered glass,featuring good transparency
Anticorrosion static power coating surface treatment
color:any color based on regular quality
silicon gasket between glass and reflector,and the up and down parts,ensure high sealing performance
stainless locker
base:E40/E27
Insulation grade:class 1
Protection grade:IP65
Installment diameter:Φ48/60
photocell
