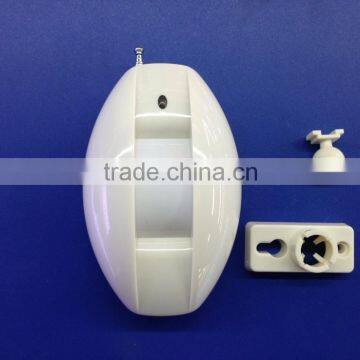

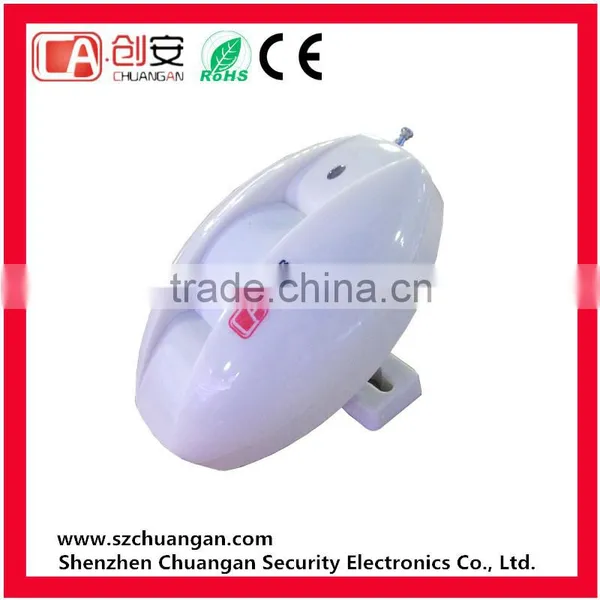

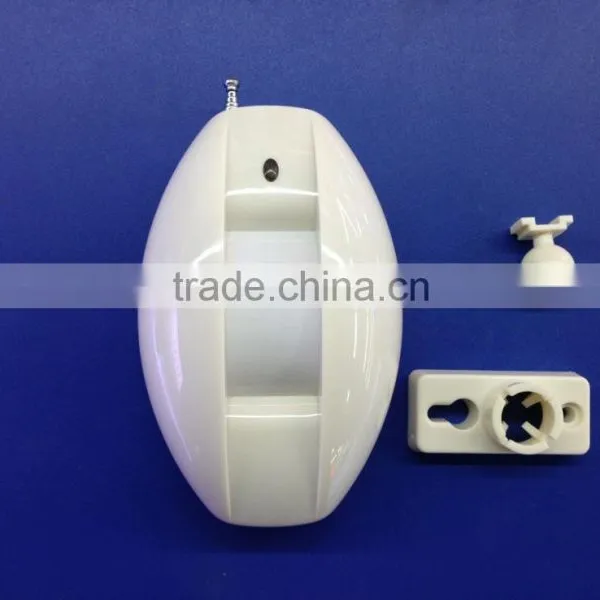

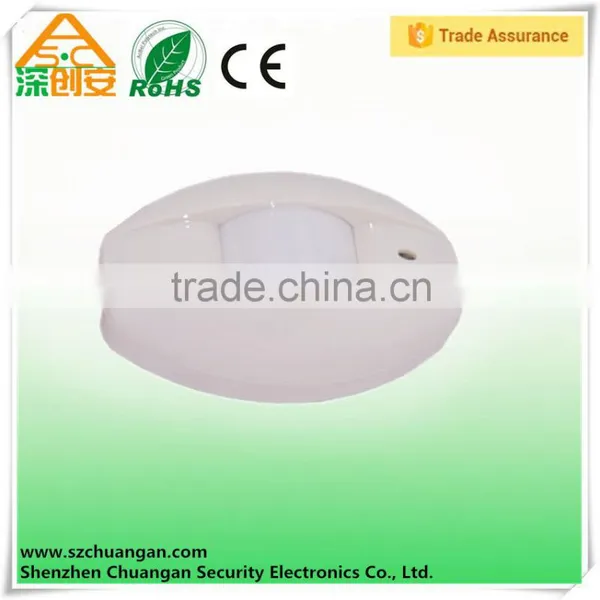

Factory Wireless curtain PIR Detector for Home Alarm System
- 20000 Perch / Perches per Month
- Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
trade assurance infrared detector intelligent dual digital analysis of alarm detectors
-
Hot Sale Ceiling-type passive infrared motion sensor detector
-
Wall-mounted installation 9V laminated batteries Sensor Waterproof Wireless infrared detector
-
High Quality Wired Dual PIR Microwave Technology Ceiling Mounting detector
-
Intelligent dual digital analysis of alarm infrared detector Quality Choice
-
Low noise,high sensitivity,dual source infrared sensor Quality Choice
Product Details
Place of Origin | China | Brand Name | CA | |
Model Number | CA-821R | Usage | Other, Window, Window, home alarm system |
Product Description
Item : Wireless curtain PIR Detector for Home Alarm SystemCA-821R
Specifications
1,Pir detector manufacturer
2,Wireless curtain PIR Detector for Home Alarm System use
3,Detection Angle: 15 degrees
Product introduction
Wireless curtain PIR detector. It uses the advanced signal analysis technology, providing the ultra high detection performance and the false alarm performance, ensuring the stability of the product in design. When there is an intruder through the detection area, the detector will automatically detect human activities in the area. If there is a phenomenon of dynamic mobile, it will control the panel to send warning signal causing alert.
Function characteristics
1, Detection distance is adjustable (2-4 m, 4-9 m, 9-12 m three gears available)
2, Practise temperature compensation technology
3, The battery owe voltage alarm instructions
4, Delay alarm can choose
5, Resistance to radio frequency interference (20 V/m-1 GHz)
6, Wireless signal transmission
7, Low power consumption circuit design
8, The SMT process manufacturing, resistance to RFI, EMI interference
Technology parameters
1, Working voltage: DC2*1.5V (two "AA" battery)
2, Static current: Less than 25 uA
3, Alarm current: Less than 10 mA
4, Detection range: Adjustable (2 meters, 4 meters, 9 meters three gears)
5, Detection Angle: 15 degrees
6, Self-check time: About 30 S
7, Warning: Red LED
8, Owe voltage instructions: Yellow LED
9, Working temperature: -10-50
10, Humidity: Maximum 95% RH (no condensation phenomenon)
11, Installation height: 1.7_ 2.5 meters
12, Launch frequency: 315 MHz or 433 MHz
13, Launch distance: Open distance not less than 200 meters
14, Shape dimension: 110 mm * 69.5 mm * 40 mm
Packaging Details: Standard packing
Delivery Detail: Samples:3-5days; bulk orders:10-15days
Shipping way:
Sea: Weight or CBM above on 100KGS, port to port service.
Air: Weight or CBM above on 45KGS, port to port service.
Express: DHL, TNT, UPS, Fedex, EMS, China air post for any weight. Door to door service.
1.Warranty for two years if the damage is not caused by human.
2.We can reimburse the related defect parts if you provide the convincing evidence.
Shenzhen Chuangan Electronics Co., Ltd. was founded in 2008, Shenzhen is a professional burglar alarm equipment R & D processing and sale of high-tech private enterprises, mainly engaged in door magnetic detectors, emergency button, infrared detectors, smoke detectors, Gas detector, Siren, horn and other security products.
Why choose us?
1) We are professional manufacturer in this field with lots of years R&D and market research experience, we can provide competitive price and high quality products for you.
2) 7 years manufacturing door access system,and we have big factory and good worker,best technology.we can provide durable product.
3) We are produce most all the alarm in the market.
4) Strict quality control. We test every single product before shipment.
5) All products are sending from Factory,so the price is the lowest. other supplier are getting from our Factory or from poor factory.
* Welded with leads
Welding is a key working procedure, easy virtual welding at low temperature,leading to the switch is not stable, welding at high temperature easily cause switches damaged. So, we weld the switches with the welding machine.
* Green Packaging Process
Magnetic contact switch exports US and EU must be environmental protection,not only the material and process requirements, ABS shell sealling processing is the key.
* Standard Testing
Without a comprehensive inspection, qualified products, there is no guarantee! Incoming inspection, process inspection, finished product inspection is the basis of qualified products inspection requirements. Gap, contact resistance, life test and electrical parameters in accordance with the standard testing. All test one by one before shipping, 100% QC PASSED.
