ERW Steel Pipe
- 1500 Ton / Tons per Month
- Tianjin
- T/T D/P D/A
Product Details
Thickness: | 1, 120 | ||||
Section Shape: | Round | Outer Diameter: | 6 - 1018 mm | Place of Origin: | Zhejiang, China |
Secondary Or Not: | Non-secondary | Application: | Fluid Pipe | Technique: | Hot Rolled |
Certification: | API | Surface Treatment: | Other, patinted | Special Pipe: | Thick Wall Pipe |
Alloy Or Not: | Non-alloy |
Product Description

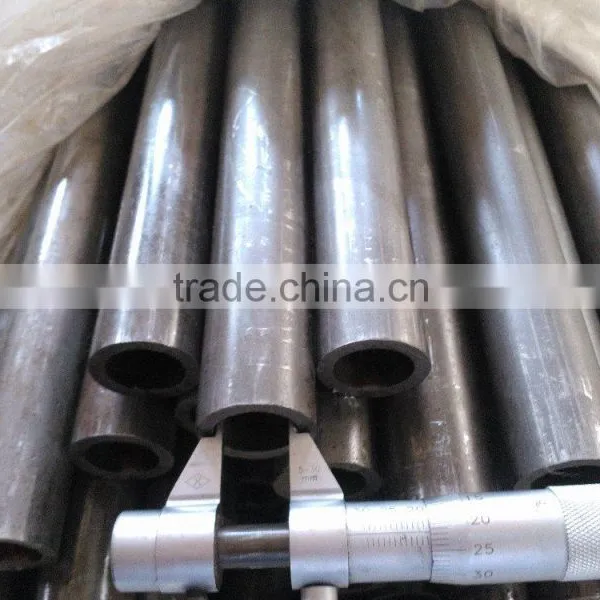

ERW Steel Pipe
1, Steel No.
C(max)a | Mn | P(max) | S(max) | Si(min) | Cu(max)b | Ni(max)b | Cr(max)b | Mo(max)b | V(max)b | |
Grade A: | 0.25 | 0.95 | 0.05 | 0.045 | 0.4 | 0.4 | 0.4 | 0.15 | 0.08 | 0.08 |
Grade B: | 0.3 | 1.2 | 0.05 | 0.045 | 0.4 | 0.4 | 0.4 | 0.15 | 0.08 | 0.08 |
Grade C: | 0.3 | 1.2 | 0.05 | 0.045 | 0.4 | 0.4 | 0.4 | 0.15 | 0.08 | 0.08 |
A For each reduction of 0.01 % below the specified carbon maximum, an increase of 0.06 % manganese above the specified maximum will be permitted up to a maximum of 1.35 %.
B These five elements combined shall not exceed 1 %.
2, Diameter & Tolerance:
NPS over in. (mm) Under in. (mm)
1/8 to 11/2, incl 1/64 (0.015) 0.40 1/64 (0.015) 0.40
Over 11/2 to 4, incl 1/32 (0.031) 0.79 1/32 (0.031) 0.79
Over 4 to 8, incl 1/16 (0.062) 1.59 1/32 (0.031) 0.79
Over 8 to 18, incl 3/32 (0.093) 2.38 1/32 (0.031) 0.79
Over 18 to 26, incl 1/8 (0.125) 3.18 1/32 (0.031)0.79
Over 26 to 34, incl 5/32 (0.156) 3.97 1/32 (0.031)0.79
Over 34 to 48, incl 3/16 (0.187) 4.76 1/32 (0.031) 0.79
3, Tensile Requirements
Grade A
Minimum Yield: 30,000 PSI (205MPa)
Minimum Tensile: 48,000 PSI (330MPa)
Grade B
Minimum Yield: 35,000 PSI (240MPa)
Minimum Tensile: 60,000 PSI (415MPa)
Grade C
Minimum Yield: 40,000 PSI (275MPa)
Minimum Tensile: 70,000 PSI (485MPa)
4, Wall Thickness & Tolerance:
Wall thickness: Scheduled
Wall Tolerance: +/- 12.5%
5,Common Uses:
- Pressure systems
- Mechanical components
- Structural applications
- Spreader bars
