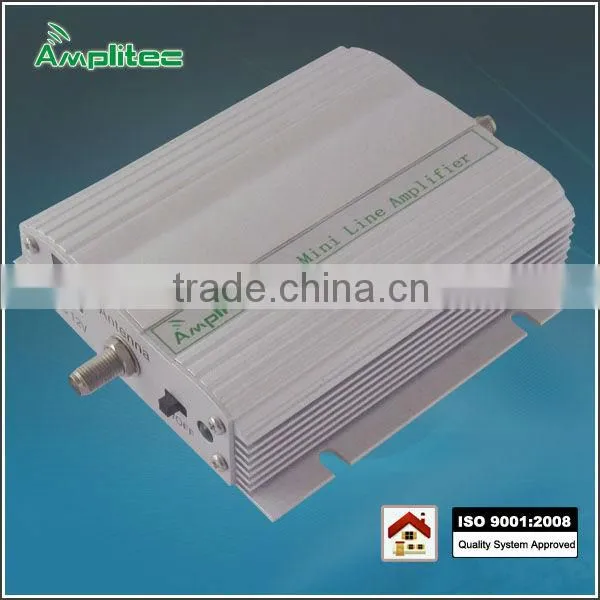

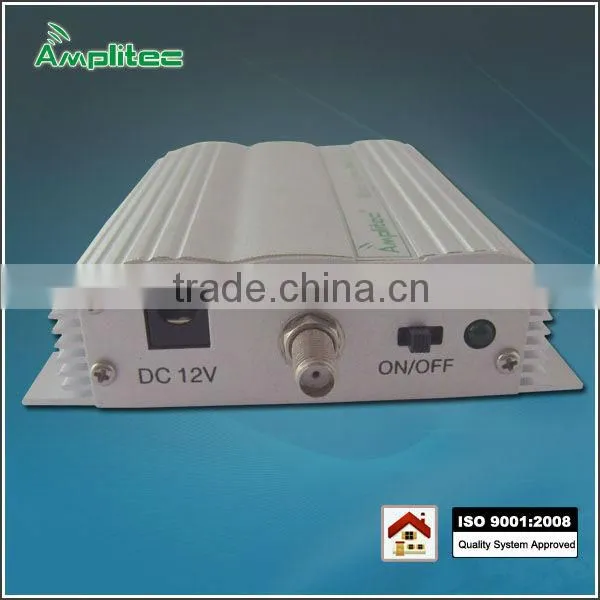

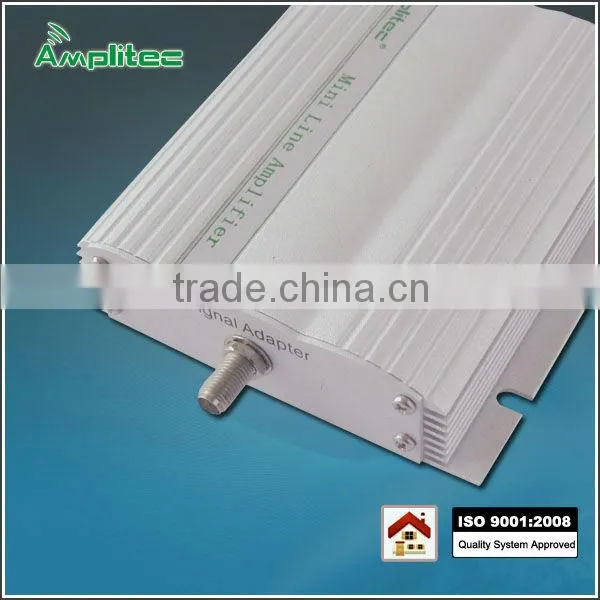

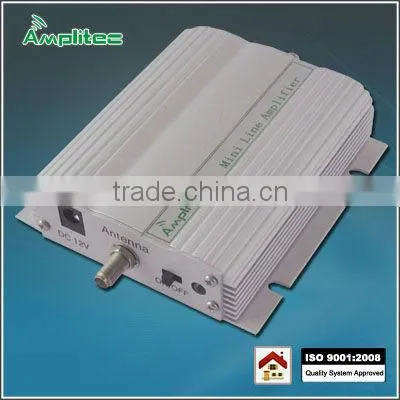

Product Name: Amplitec L15 Mini WCDMA Line Amplifier for Cellphone Repeater
Product Model: L15-WCDMA
Product Code: CXT1202-107
- 15dBm output power, compact size, elegant appearance, easy installion.

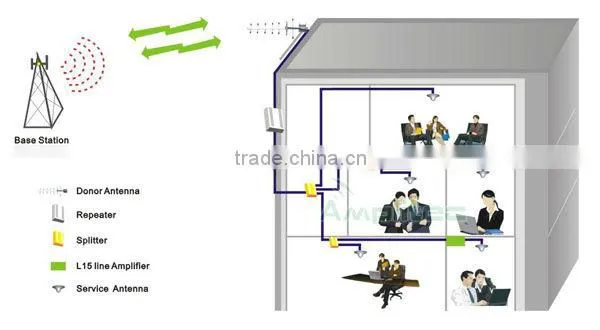

- Work with indoor 2100Mhz trunk repeaters.
- Reduce cellphone transmit pwoer and radiation, extend WCDMA cellphone battery life.
- Low noise, low interference to BTS, improve repeater sensitivity, keep communication quality.
- Apply to approximate 500 - 1500 square meters coverage.

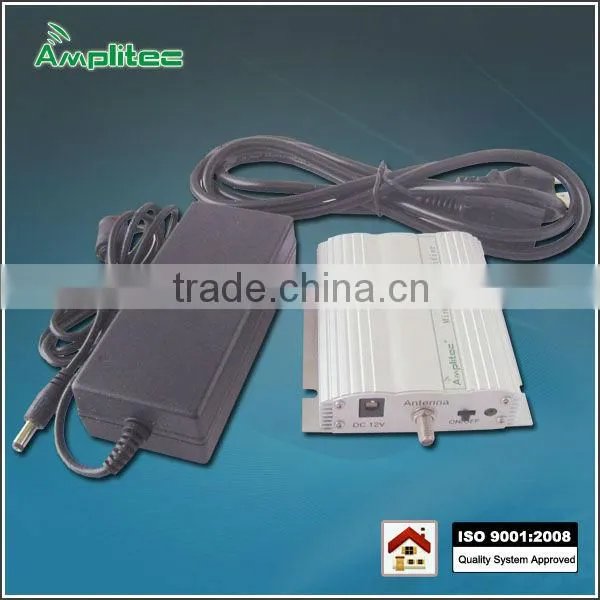

1) AC90-260V,DC9V/2A power supply (EU standard/ US standard/UK standard/ SA standard/China standard,etc) 1PCS
2) Installation kit 1PCS
3) User manual 1PCS
1) Service Antenna: 2dBi Rubber Antenna (1710~2500MHz)
2) 5D cable with connector(cable length is optional)
L15-WCDMA, L15-GSM, L15-DCS(01)
Items |
Uplink | Downlink | |
| Frequncy Rage | WCDMA | 1920-1980 MHz | 2110-2170 MHz |
| Bandwidth | 60 MHz | ||
| Gain | 20 ± 2dB | 20 ± 2dB | |
| Output Power | ≥15dBm | ≥20dBm | |
| ALC not Active | - | • Green | |
| ALC Active 5-10dB | - | • Orage | |
| ALC Active 15-20dB | - | • Red | |
| Power Consumption | < 10W | ||
| Power Supply | DC: 9V | ||
| RF Connector | SMA-Female | ||
| Weight | ≤ 0.7kg | ||
| Size | 93 × 92 × 25 mm | ||
| Environment condition | IP40 | ||
Amplitec Corporation, a manufacturer was established in 2005 year, is in the forefront of Wireless revolution. With solid track record of successful development and deployment of advanced radio communication technologies, Amplitec is enabling operators worldwide for transition to a phenomenon of "seamless coverage".
Amplitec develops reliable indoor and outdoor coverage and optimization mobile signal repeater and booster's solutions for offices, restaurants, hotels, commercial centers, countryside, residential areas,tourist resorts, and stadiums on various GSM850, GSM900, GSM1800, GSM1900, CDMA800 PCS1900, IDEN, EGSM networks as well as WCDMA, 3G and TD-SCDMA systems.
