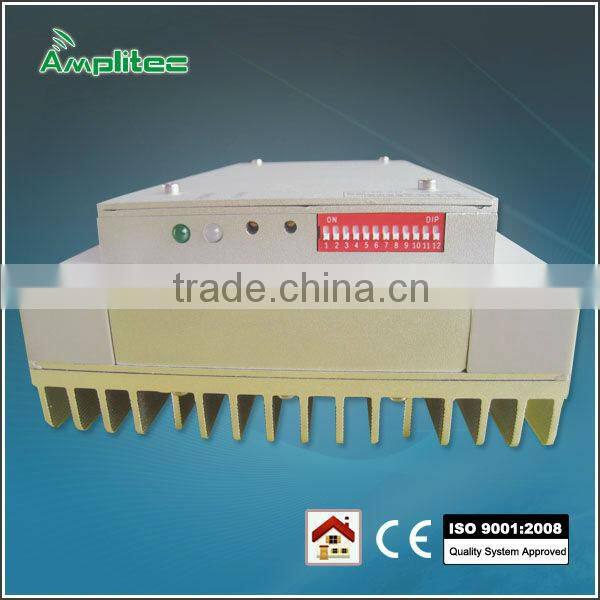

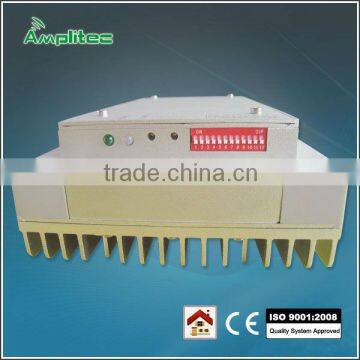

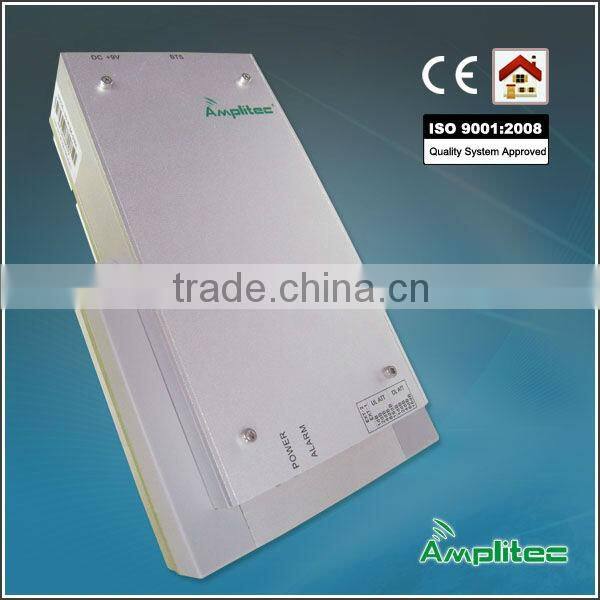

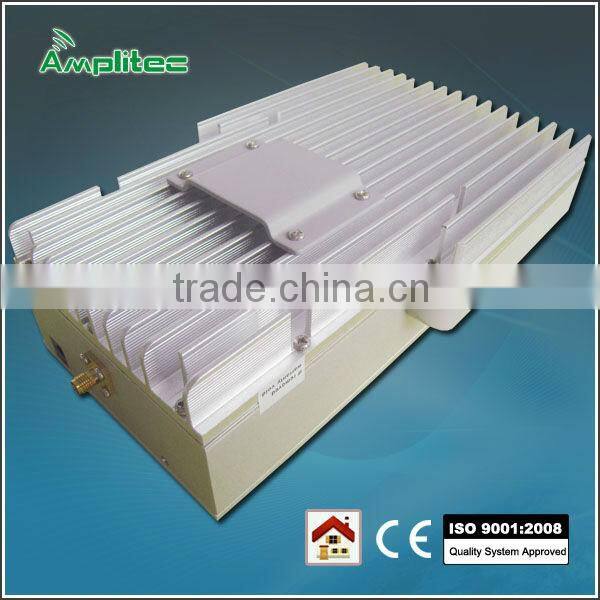

Help CenterPCS /GSM 1900 Band Selective Repeater With Built-in Antenna
Related Products
-
W33 Signal Band Selective Repeater/indoor Mobile Signal Boooster AmplifierNegotiableMOQ: 1 Piece -
W15A Built in Antenna Repeater/indoor GSM DCS CDMA PCS Booster AmplifierNegotiableMOQ: 10 Units
-
20dbm Dual Band Selective Repeater/GSM PCS CDMA WCDMA DCS Phone Signal BoosterNegotiableMOQ: 10 Pieces
-
W27 Series 27dbm Dual Band Selective Repeater/gsm BoosterNegotiableMOQ: 1 Piece
-
W17 Signal Band Multi Selective Repeater/Indoor Mobile Phone Signal BoosterNegotiableMOQ: 10 Pieces
Foshan Amplitec Tech Co. Ltd was established in 2005 with RMB10 million capital registration, a wireless enhancement solution supplier to mobile operators and the end user. The factory occupies an area of 3000 square meters in Chancheng District, Foshan City, Guangdong Province, China (not far way from Guangzhou City), staffed with more than 160 workers.We focus on wilreless communication techinology research and development,manufacturing and sales of radio communication system, provide coverage solution, system integration and techinical support. its product range involves repeater series, amplifier systems and monitoring systems, passive accessories and antennas series etc.
Product Feture
Light weight, Compact Size and high Performance.
Provide quickest solution for indoor signal weak or block zones.
Indoor and high linear design, Low interference to BTS.
Intelligent design, with built-in ALC function, ATT manually attenuation control (1db/step) function.
Coverage area up to 300-2000 sqm without block or obstruct.
With IF saw fillter to make it good out-of-band rejection.
- GSM 1900MHz Networks, works with all major North American cell phone carriers.
Repeater sereis
This series repeater Output power for 10, 15, 17dBm, 1 or 2-sub band in any one of GSM, CDMA, DCS, PCS, WCDMA System for models.
W10A series PCS Repeater models: W10A-PCS, W15A-PCS, W17A-PCS, W17A-2G

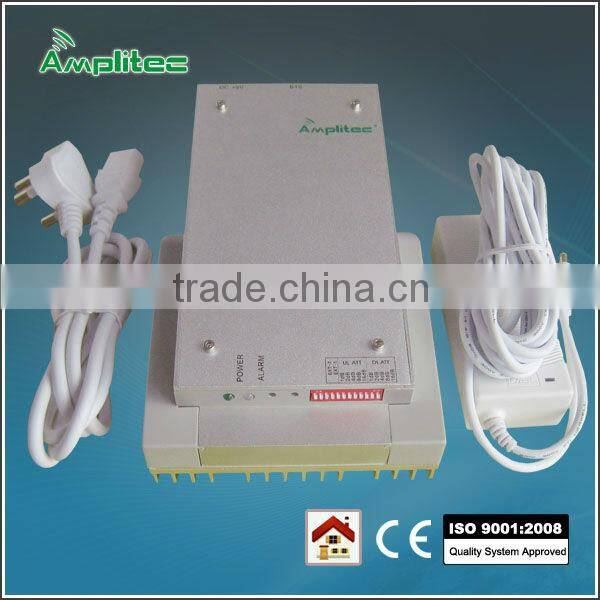

Standard Package
DC9V/5A poer supply 1PCS
AC power cord(EU standard/US standard/UK standard/SA standard/China standard, etc) 1PCS
Installation kit 1PCS
Recommended Accessories
Donor antenna: Log Periodic Dipole Aantenna (9.5dBi@1710-2500MHz)
1/2"RF cable with connector (Cable length customizable)
Electrical Specification
| Items | Uplink | Downlink | |||
| Frequency Range | PCS 1900 | 1850 ~ 1910 MHz | 1930 ~ 1990 MHz | ||
| Max.Gain | 60 ~ 70 dB | 60 ~ 70 dB | |||
| Bandwidth | available upon repust (1-2 selectable bands) | ||||
| Manual Gain Control | 31dB in step of 1dB | ||||
| Automatic Gain Control | >20dB | ||||
| Ripple in Band | ≤3dB(Typical) | ||||
| Out of Band Gain | ± 400 KHz ≤ 50 dB | ||||
| ± 600 KHz ≤40 dB | |||||
| Out of Band Gain | ± 1 MHz ≤ 35 dB | ||||
| ± 5 MHz ≤ 25 dB | |||||
| Max. Input Power Without Damage | 0 dBm | ||||
| Output Power | 10 ~ 15 dBm | 10 ~ 17 dBm | |||
| Intermodulation Products | 1GHz~12.75GHz | ≤-36 dBm | ≤ -36 dBm | ||
| 9KHz~1GHz | ≤-30 dBm | ≤ -30 dBm | |||
| Spurious Emission | 9KHz~1GHz | ≤ -36 dBm | ≤ -36 dBm | ||
| 1GHz~12.75GHz | ≤ -30 dBm | ≤ -30 dBm | |||
| Frequency Stability | ≤0.01 ppm | ||||
| Noise Figure @ max. gain | ≤ 6 dB(Typical) | ||||
| Return loss | ≤ -10 dB | ||||
| Time Delay | ≤ 4.5 μs | ||||
| MTBF | >50000 hours | ||||
| Power Supply | AC:90~265V, 50/ 60Hz;DC:9V 5A | ||||
| Power Consumption | < 25W | ||||
| Impedance | 50 ohm | ||||
| nput Signal Level | Normal | At the edge of green and orange( -50dBm or more) | |||
| Low | Green | ||||
| High | >1-5dB range: Orange; >20dB: Red | ||||
Mechanical Specification
| RF Connector | N-Female |
| Switch | Power Switch,Manual Gain Control Switch |
| Cooling | Heatsink Convection cooling |
| Dimensions (D x W xH ) | 250*160*53 (mm) |
| Weight | < 2.5 Kg |
| Installation Type | Wall Installation |
| Environment Conditions | IP40 |
| Humidity | < 90% |
| Operating Temperature | -10℃~55℃ |
Packaging: standard exportation carton (paperboard box with protective polyfoam)
Shipping: by express, airplane or sea
Warranty:
one year warranty for the repeater, misoperation and man-made damage is not within the scope of free warranty.
Quality is the base of existence for an enterprise , we always keep our conception on “Quality First”.we established the quality management system according to ISO9001 quality system requirement since the beginning of the company was found . after a period of operation and adjustment, now we have established and run a sound quality management system, and successfully passed the ISO9001: 2008 quality system certification.
Our staffs are spreaded through training in quality awareness, all employees are strict in accordance with the requirements of control system in every section , ensuring high products quality!
It’s our responsibility to pay more attention on customers’ request as well as make efforts to meet customers’ demand and needs, all staffs is focus on customer satisfaction in order to create greater value for customers.
