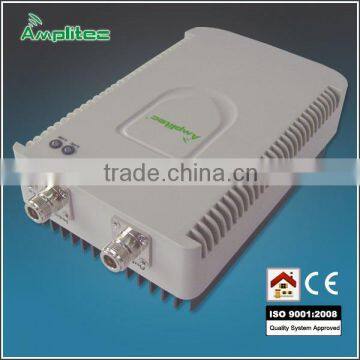

Product Name: 10 dBm GSM and WCDMA Dual Band Repeater
Product Model: C10-GW
Product Code: CXT1010-208
- Provide quick coverage solution for weak & blind wirless GSM mobile signal zones, reduce drop/off calls, improve communication quality.
- Compact size, elegant design, easy installation and operation .
- High gain, Low consumption, low interference to BTS.
- LED light working and signal condition indicators.
- Use ALC technology, adjust extent automatically
- Lowers cell phone power emissions and extends phone battery life.
- Works in all countries was GSM 900MHz & WCDMA 2100MHz mobile network is in use.
- Apply to approximate 200~500 square meters cellular mobile signal coverage.
- Perfect Indoor Repeater solution of GSM signal network extender.
1) General application places: departments, residents, offices, place of business.
2) Business application places: middle & large office, Company.
3) Offer Wireless Internet places: exhibition, café, tea house, and bar.
4) Underground places: underground garage, basement, underground store.
1) AC90-260V, DC9V power supply adapter 1PCS
2) AC power cord (EU standard/ US standard/UK standard/ SA standard/China standard, etc.) 1PCS
1) Donor antenna: Mini Panel Antenna with 10 meters cables ( 5.5dBi, 824~960MHz )
2) Service antenna: Omni Ceiling Antenna (4.7dBi@824-960MHz )
Items |
Uplink | Downlink | |
| Frequncy Rage | GSM | 890-915 MHz | 935-960 MHz |
| WCDMA |
1920-1980 MHz | 2110-2170MHz | |
| Bandwidth | GSM:25 MHz; WCDMA 60MHz | ||
| Gain | 65 ± 2dB | 65 ± 2dB | |
| Output Power | 10 ± 2dBm | 10 ± 2dBm | |
| ALC not Active | - | • Green | |
| ALC Active 5-10dB | - | • Orage | |
| ALC Active 15-20dB | - | • Red | |
| Power Consumption | < 15W | ||
| Power Supply | DC: 9V/2A | ||
| RF Connector | N-Female | ||
| Weight | ≤ 1.5kg | ||
| Size | 209 ×133 × 41 mm | ||
| Environment condition | IP40 | ||
Amplitec Corporation, a manufacturer was established in 2005, is in the forefront of Wireless revolution. With solid track record of successful development and deployment of advanced radio communication technologies, Amplitec is enabling operators worldwide for transition to a phenomenon of "seamless coverage".
Amplitec develops reliable indoor and outdoor coverage and optimization mobile signal repeater and booster's solutions for offices, restaurants, hotels, commercial centers, countryside, residential areas,tourist resorts, and stadiums on various GSM850, GSM900, GSM1800, GSM1900, CDMA800 PCS1900, IDEN, EGSM networks as well as WCDMA, 3G and TD-SCDMA systems.
If this 10 dBm GSM and WCDMA Dual Band Repeater or any other cell repeater meet your requried, please feel free to contract with us.
More detail please visit our official website:
