2015 hot selling 220V 12 STEP PFR Power Factor regulator

FOB Price

USD $20 - $30 / Piece

100 Pieces(Min.Order)

Supply Ability 10000 Piece / Pieces per Month
Port NINGBO PORT
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	JKCN
Model Number	JKW58 JKW5C PRCF

Product Description

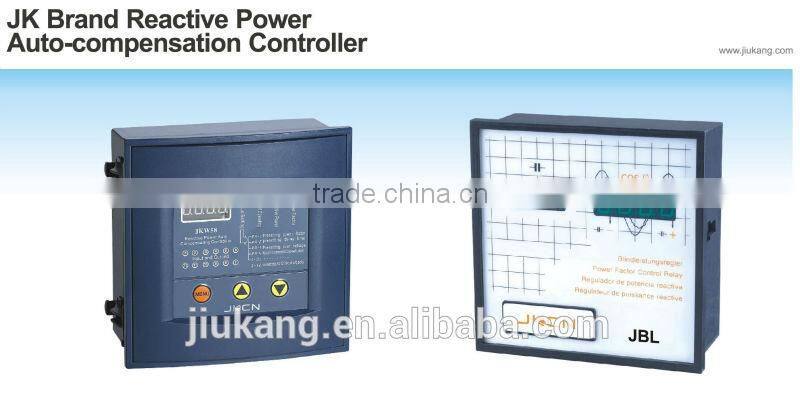

General Description

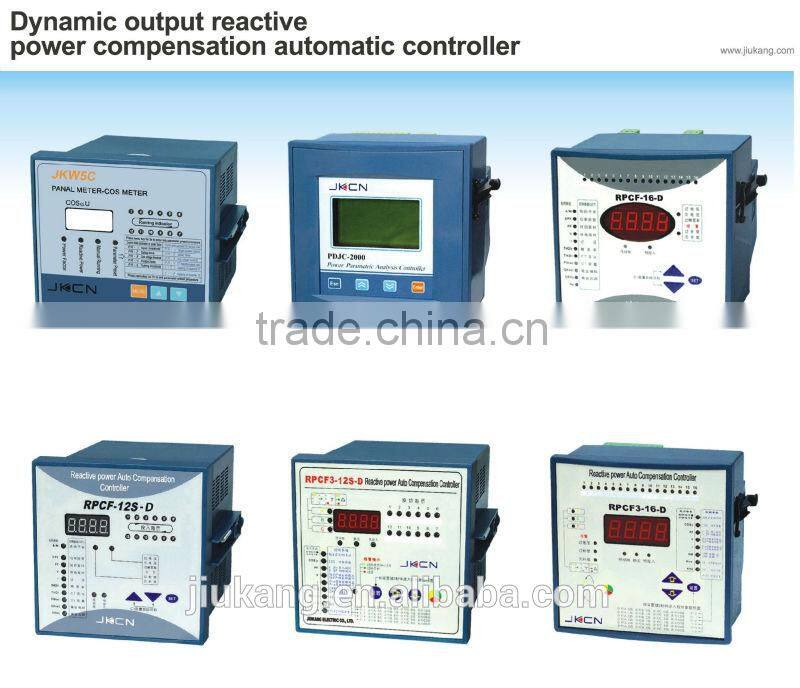

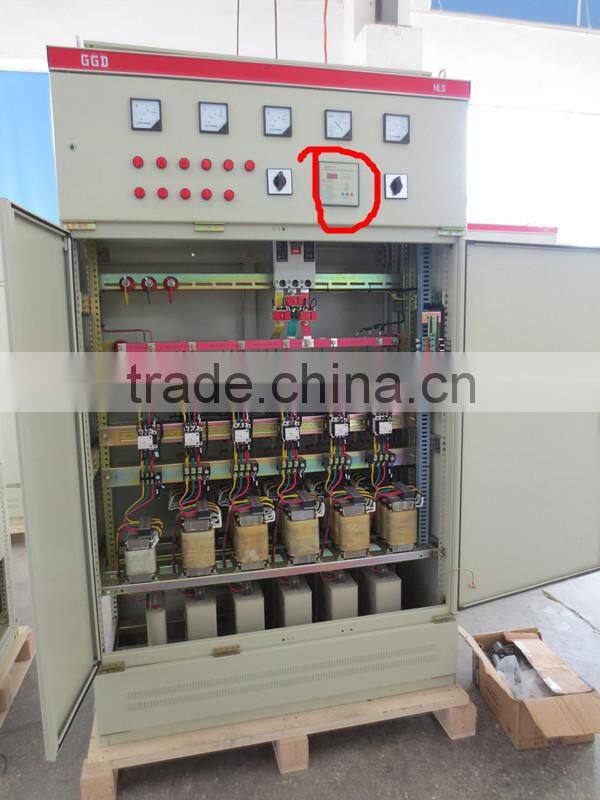

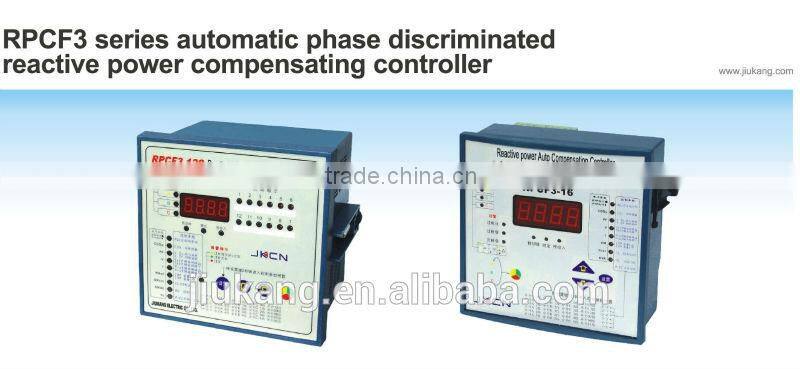

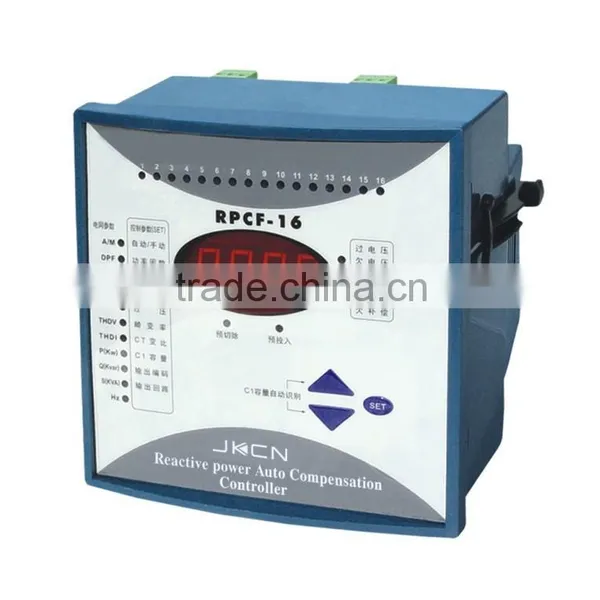

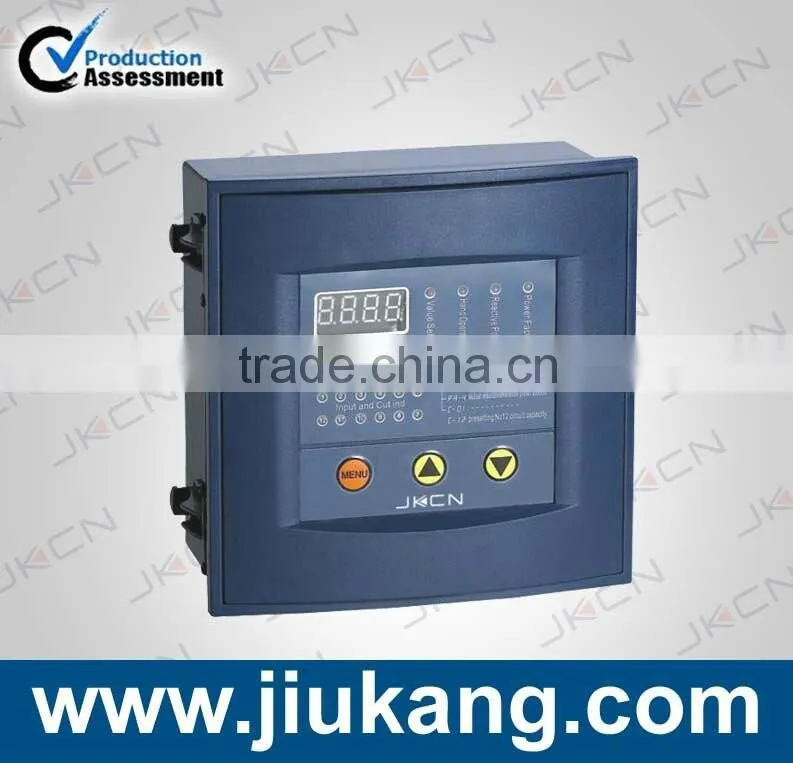

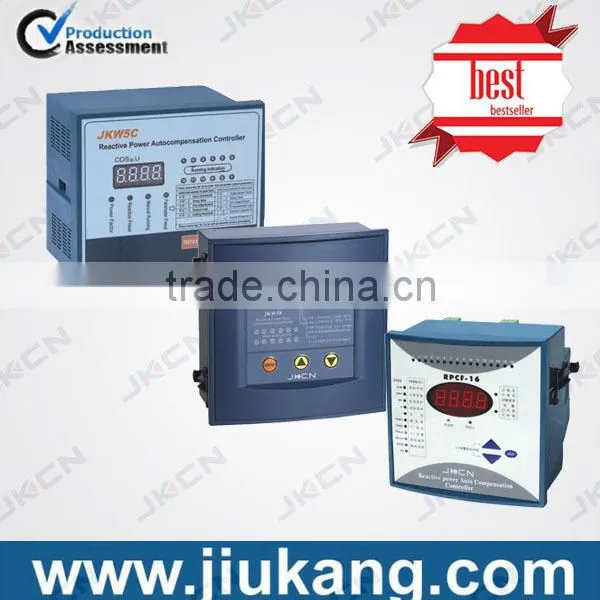

The reactive power auto- compensation controller is the auxiliary product for low voltage capacitor screen. According to the different

demands of user, the company developed successfully the JKL5C, JKW58, RRCF, JKW9F, JKW5C types of intelligent controller series;

Number of the channels controlled is 4,6,8,10 and 12 available. All of these devices are controlled by the microcomputer, with the advanced

technology, they have complete range of functions, rather strong anti-interference ability, stable and reliable operation, accurate compensation

and novel appearance, so they are the preferred products of capacitor screen manufactuers

Main Technical parameter

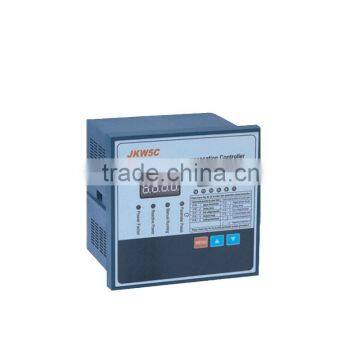

Items	JKW5C	JKG2B	JBL	JKW58
Rated working voltage	380V±20%, 50Hz	220V±10%, 50Hz	220V±10%, 50Hz	380V±20%, 50Hz
Sampled input current	AC, Iin≤5A	AC, Iin≤5A	AC, Iin≤5A	AC, Iin≤5A
Output contact capacity	220V×5A, 380V×3A	220V×5A, 380V×3A	220V×5A, 380V×3A	220V×5A, 380V×3A
Dielectric strength	AC3000V	AC3000V	AC4000V	AC3000V
Working method	Continuous	Continuous	Continuous	Continuous
Switch on threshold	Reactive current >1.1Ic, cosφ<cosφ preset	Cosφ<0.93	Cosφ<0.93	Reactive current >1.1Ic, cosφ<cosφ preset
Switch off threshold	power factor>Cosφ preset	Cosφ<0.98	Cosφ<0.98	power factor>Cosφ preset
Swtiching time delay	5-100s adjustable	5-100s adjustable	40s	5-100s adjustable
Over voltage protection	400-450v adjustable	230-250v adjustable	230-250v adjustable	400-450v adjustable
Phase sequence of sampling singal	Automatic identifying	Automatic identifying		Automatic identifying
Self-checking function	Yes	Yes	Yes	Yes
Channels controlled	4,6,8,10,12	4,6,8,10,12	4,6,8,10	4,6,8,10,12
Overall wattage dissipation	10W	15W	10W	10W
Overall Weight	1.35kg	1.8kg	1.00kg	1.35kg
Size of mounting hole	113×113mm	162×102mm	138×138mm	138×138mm

Product Description

About us

Certifications

FAQ

Q 1. How's the delivery time ?
A. Depend on your quantity ,usually within 15days after receive your payment in advance.

Q 2.Would you accept to use our logo ?
A. If you have good quantity,it absolute no problem to do OEM.

Q3. Would you offer free sample?

A. We will offer you free sample for the motor capacitors. for power capacitor will not be free.

Q4 What's your guaranty time?

A. One year,if mmet quality problem duing this time, we will take charge of it.

Q5 What's your payment term?

A. TT LC West Union.

Q6 What's the rated working voltage of your controller?

A. 220V,380V.

Q7 Do you have the function of self-checking ?

A. Yes.

Q8 What's the size of mounting hole ?

A. 113*113mm, 162*102mm,139*139mm
