Help CenterIntegral Shunt Capacitor Bank 13.2Kv-3MVAR-3W
Related Products
-
6.3KV High Voltage Power Capacitor(BFM Model,with CE)US$ 73.7 - 918MOQ: 1 Set -
20KV High Voltage Power Capacitor(BFM Model,with CE)US$ 73.7 - 918MOQ: 1 Set
-
High-voltage Assembled Shunt CapacitorUS$ 1,000 - 8,000MOQ: 1 Set
-
JKCN High Voltage Shunt Capacitor BFM BAMUS$ 40 - 8,000MOQ: 1 Set
-
Electric Heating Capacitor (0.5Kv-500Kvar-2.5S)US$ 73.7 - 918MOQ: 1 Set
Specifications
Integral Shunt Capacitor Bank suitable for the power system, to increse the power factor ,reduce line loss.buy high voltage shunt capacitor bank 6.6KV 15KV with CE NO PCB
What is the date sheet of our high voltage shunt capacitor
| CAPACITOR UNIT | |
| DESCRIPTION | OFFERED SPECIFICATION |
| tank material | iron/stainless steel tank |
| Exterior painting | gray color epoxy painting |
| bushing quantity | single phase /three phase |
| bushing type circle | According to the detailed specific /customer request |
| creepage distance | According to the bushing type |
| air distance | According to the bushing type |
| dry flashover | 110 kV |
| wet flashover | 70 kV |
| dry resistance | 70 kV |
| wet resistance | 50 kV |
| impulse voltage | 125 kV |
| max operation voltage | 8660 kV |
| frequency | 60 hZ |
| Basic level of insulation BIL | 125 kV |
| rated current (IN) | 12.6 A |
| discharge | 75 V/10 min |
| temperature of operation | -25 ºC a 50 ºC |
| dielectric fluid non-contaminant | F:Diaryl ethane PXE (non-PCB) A:Benzyl toluene (M/DBT) |
| parallel elements (inside) | According to the detailed specific /customer request |
| groups in series (inside) | According to the detailed specific /customer request |
| standards | IEC871-1 GB/T11024.-12010 |
| internal fuse | According to customer request |
| mounting | Outdoors / street pole |
| security | can operate up to 135% of rated capacity |
| technical warranty for | 12 month after received |

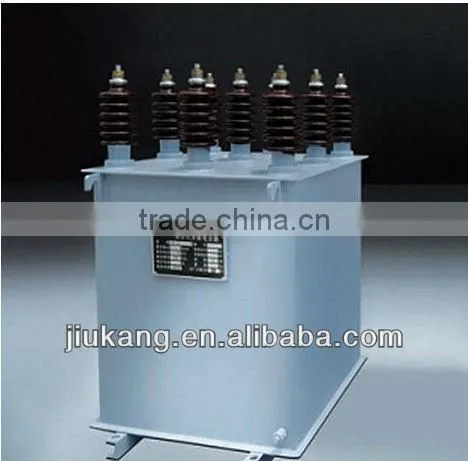

Product Photos
Structure description
1. Capacitor made of shell and core, shell body constructed of thick steel sheet being soldiered.
Outgoing porcelain bushing welded and passed through
top cover of capacitor, two sides of shell provided with two lifting brackets, one of lifting bracket assembled with earthing bolt.
2. Capacitor core has several elements and insulated parts to be stacked. It uses Polypropylene film as medium and Al foil as polar plate to be rolled.
3. In order to work in different voltage rating, the elements in core will be connected in series or parallel. As required, the discharging resistance can bebuilt-in.
What is the Applications of our high voltage shunt capacitor ?
Packaging & Shipping ,Trade Terms:
2. Customers specifying freight forwarders or negotiable shipping methods!
3. Delivery Time: 10-30 days for batch goods.
1. Payment: T/T, Western Union, 30% deposits; 70% balance before delivery.
2. MOQ: 1pcs
3. Warranty : 1 years
4. Package Informations: Wooden box .
Main Technical Parameter
1. The relative error between capacitance and rating shall not exceed -5%~+5% or capacitor unit.
2. For the three-phase capacitor, the ratio of maxi and minimum capacitances between any two phase terminals shall not exceed 1.08.
3. For the full film capacitor, Tangent of capacitor loss angle shall not exceed 0.0005, for the film and paper mixed capacitor, it shall not exceed 0.0012
4. Each capacitor shall withstand alternating U = 2.15U or DC voltage Ut = 4.3U voltage between terminals, test duration 10s, it shall have no break t N n down and flashover.
5. AC voltage test between terminal and shell: all capacitors whose all terminals insulated from outer shell shall comply with the requirement of clause
18.1 in the standard of GB/711024.1-2010: during test, no breakdown and flashover shall happen.
6. Power frequency steady over-voltage and its running time of capacitor and the elements shall comply with sheet 2. In order to extend the working life,
the capacitor shall run under voltage not over ratings.
7. The capacitor is allowed to work under not over 1.3I steady over-current for long time which caused by rising voltage and high harmonics, for the n
capacitor with maxi positive deviation, the permissible current up to 1.37I . In order to extend the service life, the capacitor shall work under rated current.
8. The capacitor can withstand the surge up to 100 times of rated current, the times of such surging impact shall not exceed 1000, among these, some
of surging impact shall happen at the capacitor inside temperature not more than 0°C.
9. The capacitor with built-in resistance, can discharge automatically and the voltage between terminals shall fall down to 75V or lower within 10 minutes.
10. High voltage shunt capacitor (more than 1000V) complies with national standard GB/T11024.1-2010 (eqv. IEC871-1)
Main technical parameter of high shunt capacitor as sheet :
Model |
Un(KV) |
Qn(Kvar) |
Fn(Hz) |
Cn(μF) |
In(A) |
BWF6.3-25-1W |
6.3 |
25 |
50 |
2.005 |
3.968 |
BWF6.3-30-1W |
6.3 |
30 |
50 |
2.406 |
4.762 |
BWF6.6/ 1.732-30-1W |
6.6/1.732 |
30 |
50 |
6.577 |
7.873 |
BWF6.6/ 1.732-50-1W |
6.6/1.732 |
50 |
50 |
10.96 |
13.12 |
BWF10.5-25-1W |
10.5 |
25 |
50 |
0.7218 |
2.381 |
BWF10.5-30-1W |
10.5 |
30 |
50 |
0.8861 |
2.857 |
BWF11/ 1.732-25-1W |
11/1.732 |
25 |
50 |
1.973 |
3.936 |
BWF11/1.732 -30-1W |
11/1.732 |
30 |
50 |
2.368 |
4.724 |
BAM6.6/1.732 -100-1W |
6.6/1.732 |
100 |
50 |
21.92 |
26.24 |
BAM6.6/ 1.732-150-1W |
6.6/1.732 |
150 |
50 |
32.88 |
39.36 |
BAM11/1.732 -100-1W |
11/1.732 |
100 |
50 |
7.892 |
15.75 |
BAM11/1.732 -150-1W |
11/1.732 |
150 |
50 |
11.84 |
23.62 |
BAM11/1.732 -250-1W |
11/1.732 |
250 |
50 |
15.87 |
31.49 |
BAM11-150-1W |
11 |
150 |
50 |
3.964 |
13.64 |
BAM11-250-1W |
11 |
250 |
50 |
5.261 |
18.18 |
BAM12-150-1W |
12 |
150 |
50 |
3.216 |
12.5 |
BAM12-250-1W |
12 |
250 |
50 |
4.421 |
16.67 |
Note :Above is only for reference,please make the object as the standard
The material can be change according to the requirement .
Why Choose us?
We are Alibaba Assessed 12 years Gold Supplier.
1.We are a factory manufacturing capacitor electric ,best production capability ,best quality control, Best Service .
2.100% QC inspection Before Shippment.
3. CE/ROSH/ ISO listed,competitve price.
Our Certifications
FAQ
Q1: What is the Warranty for the high voltage shunt capacitor ?
A1: For the high voltage shunt capacitor ,we have 1 years warranty.If any quality problems on our side occured in this period ,
we will take on the shipping cost and replacement.
Q2: What is your dielectric fluid non-contaminant ?
A2: We have F:Diaryl ethane PXE (biodegradable oils free of chlorinated compounds MDBT (non-PCB)
A:Benzyl toluene (M/DBT)
Q3: What is your capacitor standard ?
A3: High voltage shunt capacitor (more than 1000V) complies with national standard GB/T 11024.1-2010 (eqv.IEC871-1)
Q4: Does my high voltage shunt capacitor work properly in extreme temperatures?
A4: Your can use the stainless steel tank which have high temperatures tolerance
Q5: What is the capacitor tolerance ?
A5: Their capcitor tolerance is +/- 10%.
Q6:Is there cheap shipping cost to import to our country?
A6: For 1~2 pcs ,air express will be best.And for bulk order,sea ship way is best but take much time.
For urgent orders,we suggest via air .
Q7:Can we get support if we have our own market position?
A7: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.
Q8:Dose it have internal fuse?
A8:under 500kvar we don’t recommend the no internal fuse .it is depend to your requirments .
Q9:Do you have discharge resistor or any other high voltage equipment ?
A7: We have discharge match and Complete sets of LVequipment
Q10:Could you provide the Certificate of origin form E issued in ACFTA and Certificate of quantity & quality issued by manufacturer?
A10:Yes ,we can provide the certificate if require.pls inform in advance .
How to contact us ?
Send your Inquiry Details in the Below , Click "Send" Now!
Send Inquiry to This Supplier
