Specifications

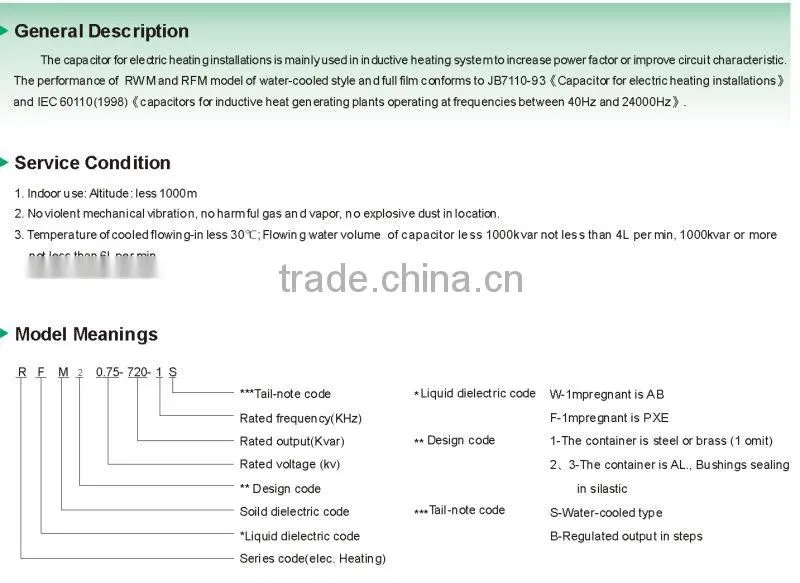

Water Cooling Electric Heat Capacitor is mainly used in inductive heating systems, good performanceGeneral Description
The capacitor for electric heating installations is mainly used in inductive heating system to increase power factor or improve circuit characteristic.
The performance of RWM and RFM model of water-cooled style and full film conforms to JB7110-93(Capacitor for electric heating installations)
and IEC 60110(1998)(capacitors for inductive heat generating plants operating at frequencies between 40Hz and 24000Hz).
Service Condition
1. Indoor use: Altitude: less 1000m
2. No violent mechanical vibration, no harmful gas and vapor, no explosive dust in location.
3. Temperature of cooled flowing-in less 30°C; Flowing water volume of capacitor less 1000kvar not less than 4L per min, 1000kvar or more
not less than 6L per min.
4. Long-term over-voltage (less 4 hours within 24) less 1.1Un; Long -term over-current(including harmonic current) less 1.35In.
