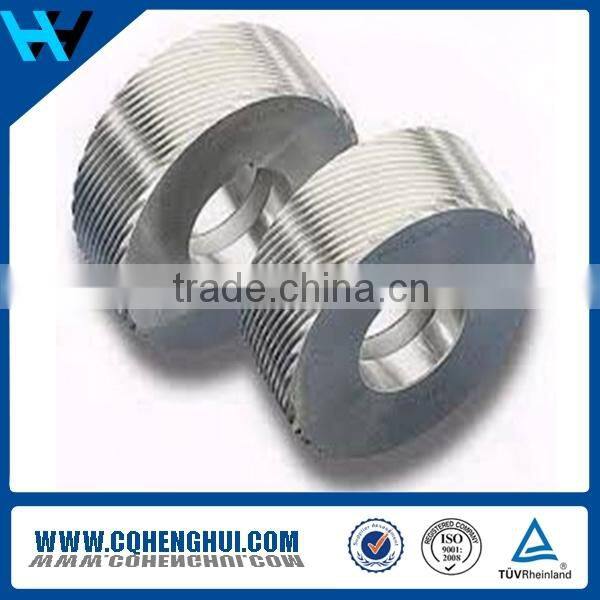

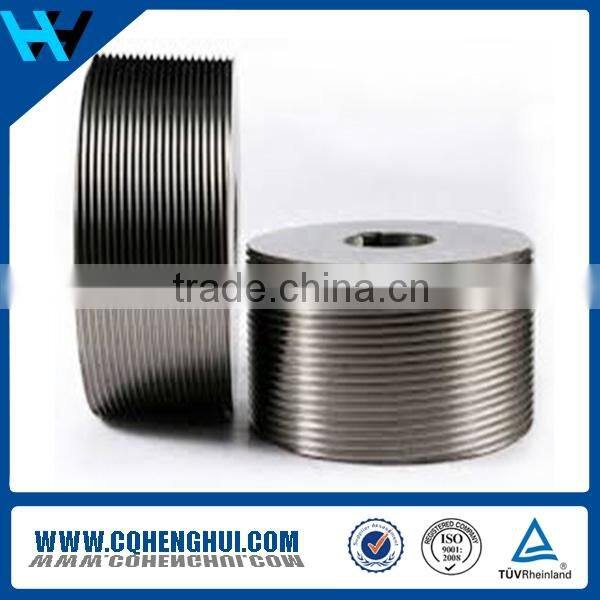

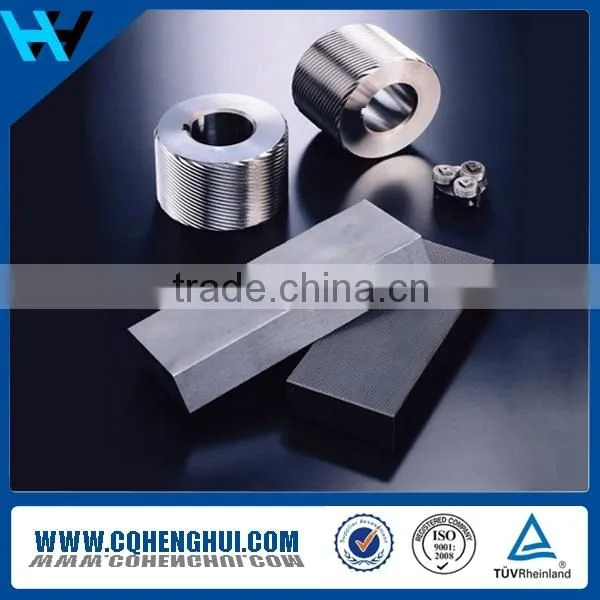

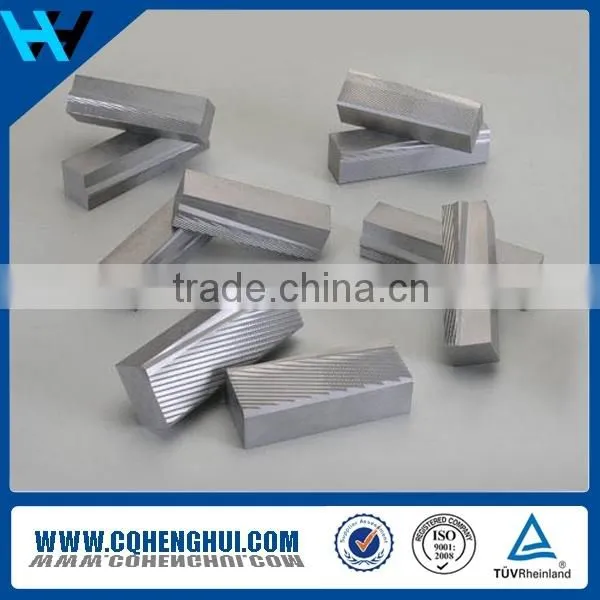

Circular Thread Rolling Dies / Mold from China Quality Choice

Product Name

Thread Rolling Dies

Thread form

Metric,DIN,GB,Whitworth,Unified,Triangular,Trapezoidal, Acme, etc.

Pitch

0.4mm to 2.5mm , other sizes can also be produced.

Hardness

±60HRC for Cr12MoV, HRC 65 67 for M2 (Offering optimal hardness per

clients’ workpieces.)

Material

9SiCr, Cr12MoV, DC53, HSS

  Thread Rolling Dies are with high accuracy, high strength and high stability by high skills

Thread Rolling Dies life is longer than dies produced by other companies based on the

same materials

Equipment Name

Specification(mm)

Qty(set)

Origin Making

CNC Machining Center

MCV-SV1100,

4

Taiwan

Lathe

C6132,CS6140

4

Baoji

Hydraulic Press

HQS300T

1

Taiwan

Internal and external high-precision grinder

M1420

1

Wuxi

Surface Grinder

MY820

2

Jiangsu

Cylindric Grinder

MA1420A

1

Japan

Clamping Machine

HC650

1

Baoji

Sawing Machine

GB4028

1

Zhejiang

CNC Milling Machine

MVC1000A

1

Taiwan

Milling Machine

SL-30

1

Taiwan

CNC Wire-Cut Machine

DK7732, DK7780

2

Jiangsu

Grinding Machine

K11

5

Zhejiang

EDM Machine

EDM320, EDM350

2

Beijing

NC Lathe

CK6730

3

Baoji

Driller

ZX7016

1

Zhejiang

Cold Heading Machine

J64,J84, J104, J134, J165

8

Taiwan

 Automatic Lathe

---

4

Taiwan

Cold Forming Machine

11B,14B,17B,22B,24B,27B

6

Taiwan

Heading Machine

---

6

Taiwan

Our advantages

 1.High quality

 2.Reasonable price

 3.On time delivery

 4.Good After-sale service

 5.Strict quality control

 6.All the Thread Rolling Dies are automotic made.

We will offer you

 1.In-time response on letters, telephone calls or fax

 2.In-time supply the quotation andve Thread Rolling Dies designs

 3.In-time communication on the technical points

 4.In-time sending pictures for the Thread Rolling Dies machining progress and Thread Rolling Dies finishing schedule

 5.In-time Thread Rolling Dies test and sample delivery

 6.In-time Thread Rolling Dies delivery.

Drawings or samples provided

We get the drawings or samples from our clients.

R&D

We support customer R&D. Make the files or improve the

 design if you needed.

Thread Rolling Dies Quotation

According to the drawings or samples

Thread Rolling Dies design

Send Thread Rolling Dies design for confirmation within 3 days

 after getting Thread Rolling Dies charge

Thread Rolling Dies making

Start to make the Thread Rolling Dies after design confirmed

Test-run

After Thread Rolling Dies is finished, we’ll test it and get samples

Sample confirmation

Send the free samples to client to make sure perfect

( Thread Rolling Dies modification)

(If the sample is not ok, we’ll modify the Thread Rolling Dies for free, then send free samples to you again...until meet your demands)

( Thread Rolling Dies delivery)

(Shipping Thread Rolling Dies out if no need to injection plastic parts,

packed by wooden case by see or by air, according to client’s requirements)

Thread Rolling Dies Service

Start to high-volume production with the ordered Thread Rolling Dies
