Copy Attachment for Oil Field Lathe

Copy Attachment for Oil Field Lathe thumbnail-1
Copy Attachment for Oil Field Lathe thumbnail-2
Copy Attachment for Oil Field Lathe thumbnail-3
Copy Attachment for Oil Field Lathe thumbnail-4
Copy Attachment for Oil Field Lathe thumbnail-5
Copy Attachment for Oil Field Lathe thumbnail-6
Copy Attachment for Oil Field Lathe photo-1
Copy Attachment for Oil Field Lathe photo-2
Copy Attachment for Oil Field Lathe photo-3
Copy Attachment for Oil Field Lathe photo-4
Copy Attachment for Oil Field Lathe photo-5
Copy Attachment for Oil Field Lathe photo-6
US$ 3,200 - 3,200 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Horizontal
CNC or Not:
Normal
Contact Supplier Request Quote Chat Now
Gamut Machine Tools
Payment & Shipping
Payment Methods:
Port of Shipment:
NHAVA SHEVA
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Horizontal
CNC or Not Normal
Automatic Grade Semi-Automatic
Max. Swing Diameter 500mm
Place of Origin Maharashtra, India
Brand Name GAMUT
Model Number 1020
Voltage 110/220/380/415 V/3P
Power(W) 1.5KW
Dimension(L*W*H) 2110mm X 750mm X 500mm
Weight 400kG
Certification CE Standard
After-sales Service Provided Engineers available to service machinery overseas

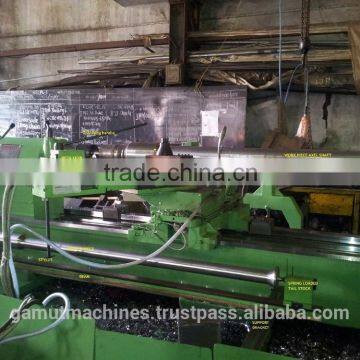

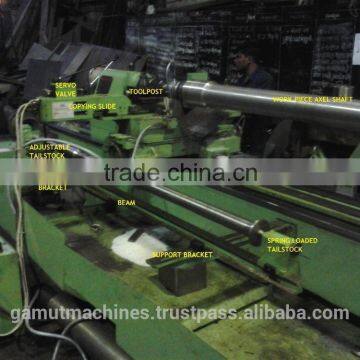

GAMUT Hydraulic lathe tracer for copy turning face copying & copy boring. GAMUT LATHE TRACERS are made by Graded Casting and have been Robustlyconstructed to take maximum cutwith hardened tool post and very sensitive and precise Copy-Valve to render trouble free longer service. GAMUT TRACERcan be mounted at rear or front of a lathe machine and can be operated by semi-skilled personnel. Inspectiontime is drastically reduced and productionis increased by many times within accuracyof ±0.025mm when use good lathes.



Features

  • In-built Lubrication System for Tracing Slide.
  • Hardened Tool post with Quick Change Tool Holder.
  • Automatic Finish cut system from 0-1.5 mm.

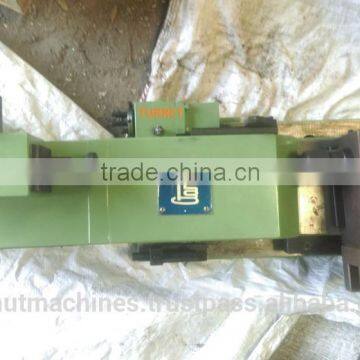

  • 6-Station Servo-actuated Turret for multicut operation (Optional item at extra cost).
  • Forward and retraction of slide and finish cut operation done manually by single operating handle. Electric push button remote control at extra cost.

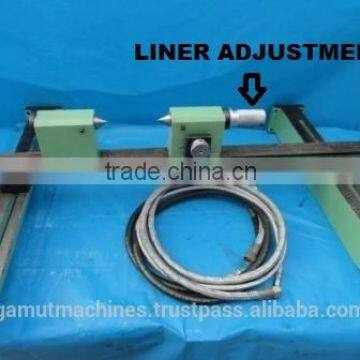

  • Master carrier for round master and Flat Template Holder (optional at extra cost) can be set easily having arrangement for longitudinal and axial movements.

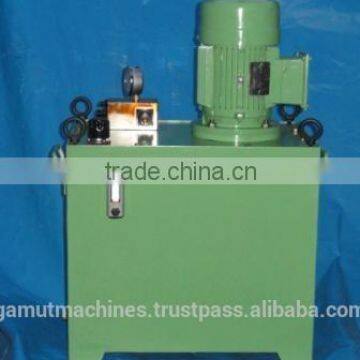

  • Power pack having level indicator, special isolator valve for pressure gauge and filters.



Technical Specification



MODEL

1020

Stroke of Tracing Slide in mm

200

Minimum centre Height from top of cross slide in mm
Tool inverted
Turning
Boring
Tool Upward
Turning
Boring


135

165

Max.Dia of Round master in mm

200

Max. length of rail in mm

2000

Hydraulic Working Pressure in Kg/Cm²

14

Pump Output in LT / Min

14

Power Pack H.P.

1.5

Theoretical Thrust in Kg

470

Recommended tool shank in mm

32x32
