Automatic Hydraulic Tracer For Lathe

Automatic Hydraulic Tracer For Lathe thumbnail-1
Automatic Hydraulic Tracer For Lathe thumbnail-2
Automatic Hydraulic Tracer For Lathe photo-1
Automatic Hydraulic Tracer For Lathe photo-2
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Other
CNC or Not:
Normal
Contact Supplier Request Quote Chat Now
Gamut Machine Tools
Payment & Shipping
Payment Methods:
Port of Shipment:
NHAVA SHEVA
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other
CNC or Not Normal
Automatic Grade Automatic
Place of Origin Maharashtra, India
Brand Name GAMUT
Model Number 5 Model

Specifications

BOOST YOUR PRODUCTION AND IMPROVE YOUR QUALITY

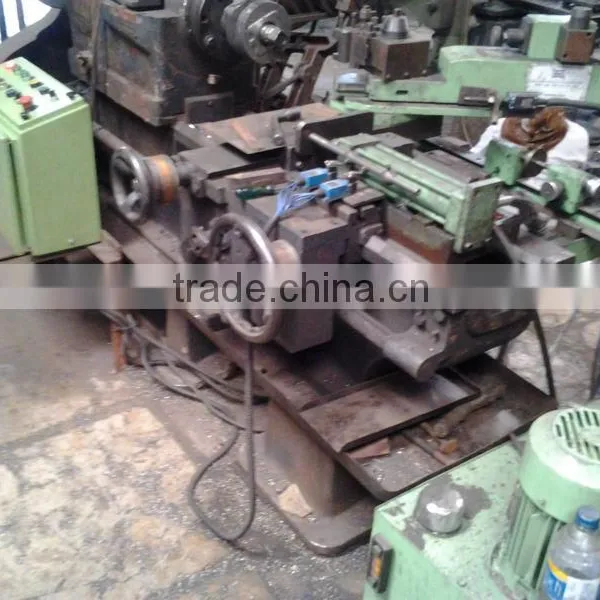

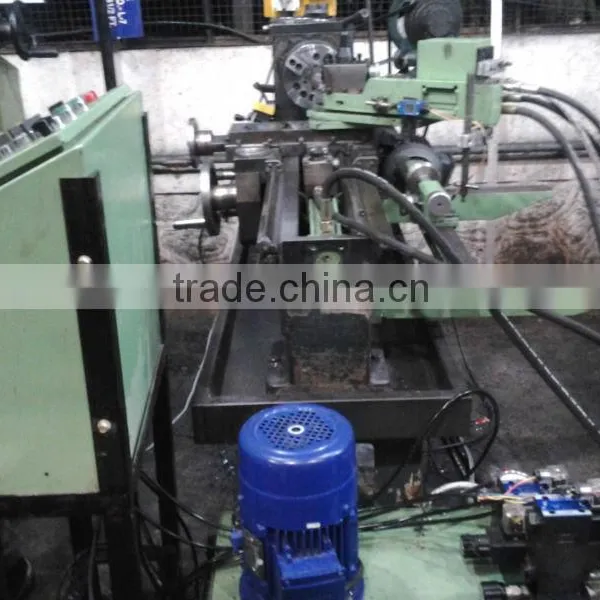

GAMUT Auto Cycle Tracer System includes Single Axis Tracer with Hydraulic control valves, Dual Delivery Power Pack, Electric Control Panel, Hydraulic feed cylinder to move Lathe saddle longitudanally forward and reverse and Limit Switches.

System is suitably desgined to get upto Two-cut Automatic Cycle of Tracer.

System is very much suitable where limited dependence on operator require. Operator is only required to load the job, press the strart Button and unload the job at the end of cycle.



GAMUT Hydraulic Lathe Tracer for Copy Turning Face copying and Copy Boring. GAMUT LATHE TRACER are made by Graded Casting and have been Robustly constructed to take maximum cut with Hardend Tool Post and very sensitive and precise Copy-Valve to render trouble free longer service. GAMUT TRACER can be mounted on Rear or Front of the Lathe Machine and can be operated by semi skilled person. Inspection time is drastically reduced and Production increased by many many times with in accuracy of ‡0.025mm when used on good Lathe.



FEATURES

  • In-built Lubrication system for Tracing slide.
  • Hardened Tool Post with Quick Change Tool Holder.
  • Automatic Finish Cut system from 0-1.5mm.
  • 6-Station Servo actuated Turret for Multicut operation (Optional item at extra cost).
  • Forward and Retraction of slide and finish cut operation done manually by single operating handle. Electrical Push Button Remote control at extra cost.
  • Master carrier for Round master having fine tapper adjustment. Flat Template Holder optional at extra cost.
  • Power pack having pump, manifold, filters, oil level, pressure gauge etc
TECHNICAL SPECIFICATION

MODEL 5660 7090 7014 1014 1020
STROKE OF TRACING SLIDE MM 60 90 140 140 200

MIN CENTER HEIGHT FROM

TOP OF CROSS SLIDE MM

 90 100 100 140 140
MAX DIA OF ROUND MASTER 100 100 100 200 200
MAX LENGTH OF RAIL 600 600 600 1000 1000
HYDRAULIC PRESSURE KG/CM² 18 & 18 18 & 18 18 & 18 14 & 18 14 & 18
DUAL PUMP OUTPUT LPM 9 & 7 9 & 7 9 & 7 14 & 9 14 & 9
THRUST IN KG 190 300 300 470 470
POWER PACK HP 1.5/2 1.5/2 1.5/2 2 2
TOOL SHANK 20X20 25X25 25X25 32X32 32X32
