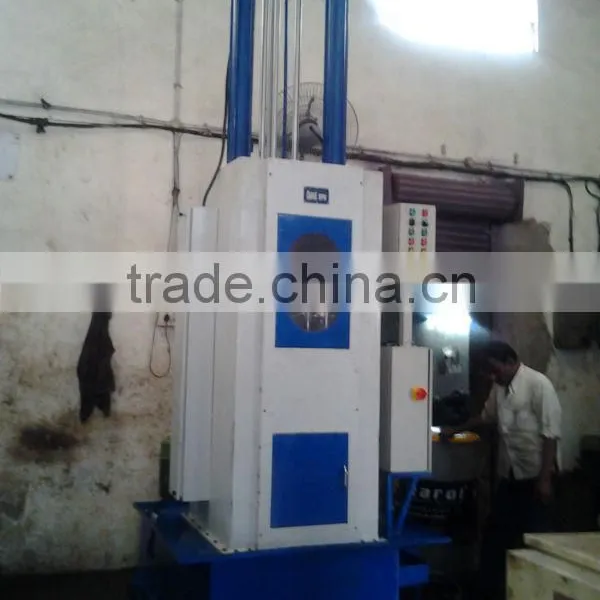

HYDRAULIC PULL DOWN VERTICAL AUTOMATIC BROACHING MACHINE

Specifications

HYDRAULIC VERTICAL BROACHING MACHINE ARE AVAILABLE IN 750, 1000, 1200MM STROKE WITH 3TON TO 15TON CAPACITY. WITH FOUR GUIDE BAR

GAMUT Vertical Broaching Machines are Pull Down type and Hydraulically operated. These Machines are precisely made with Hardened, Ground and Chrome plated 4 guide bar with suitable linear bushes fitted on Broach Puller holding guide plate which are bored on highly precise Jig boring machine to maintained accuracy with allied parts. The main parts are suitably heat treated to  give maximum accuracy continuously. These machines are heavy and robustly constructed to minimized vibration during broaching operation.



FEATURES:



• Built in coolant Equipment.
• Built in Hydraulic Power Pack.
• Splash Guard.
• Broach Puller to suit broach shank and guide plate.
• Broach holding guide plate move up and down on 4 Hardened and Ground guide bar.
• Hydraulic Broach Retriever system optional item at extra cost.
