Home > Transportation > Forklifts & Parts > Forklift > 1.2ton Pallet Stacker Electric Warehouse Equipment (CDD12)

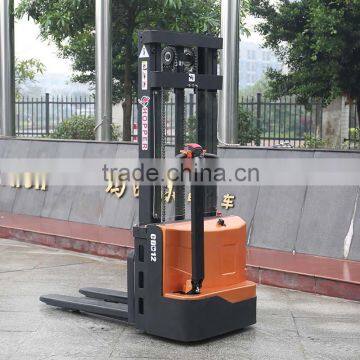

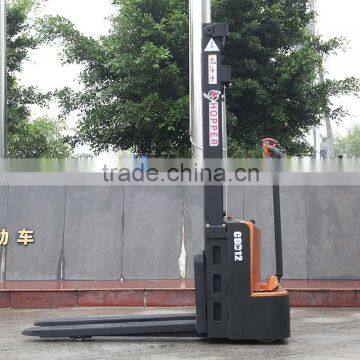

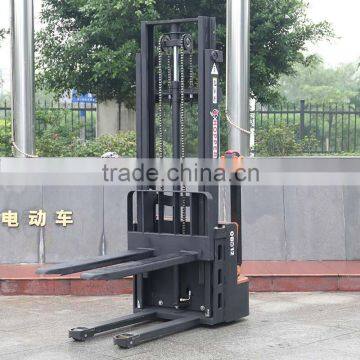

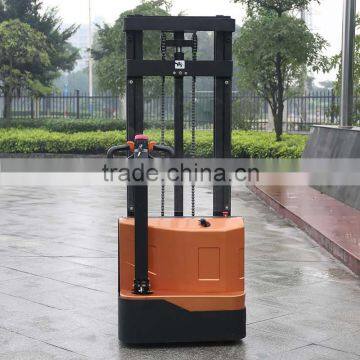

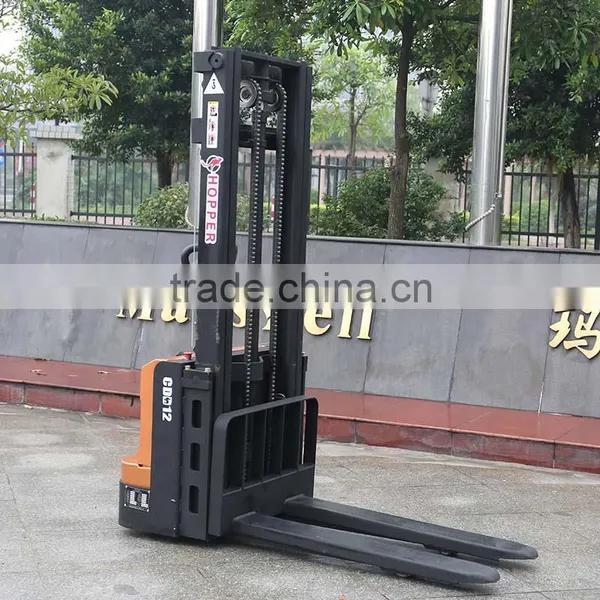

1.2ton Pallet Stacker Electric Warehouse Equipment (CDD12)
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
Marshell
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Chinese Popular 3000kg 4-Wheel Forklift Truck (CPD30)NegotiableMOQ: 1 Unit -
Chinese Factory Electric 4-Wheel Forklift With Stable Performance (CPD30)NegotiableMOQ: 1 Unit
-
Chinese Popular Counterbalance Forklift With Curtis Controller (CPD20E)NegotiableMOQ: 1 Unit
-
Electric Counterbalance Forklift Truck With Competitive Price (CPD20E)NegotiableMOQ: 1 Unit
-
Marshell Brand Electric Forklift With Customized Color (CPD20E)NegotiableMOQ: 1 Unit
Condition
New
Place of Origin
Shanghai, China
Brand Name
Marshell
Model Number
CDD12
Type
Powered Pallet Truck
Power Souce
AC Motor
Rated Loading Capacity
1200KG
Max. Lifting Height
3000mm
Min. Lifting Height
80mm
Fork Length
685mm
Fork Width
685mm
Overall Dimensions
2550x790x2070mm
Certification
CE
After-sales Service Provided
Overseas third-party support available
1.2ton Pallet Stacker Electric Warehouse Equipment (CDD12)
Main configuration
1, maintenance-free ac drive system
2, electronic steering system
3, 24 v / 270 ah high-capacity lead-acid batteries
4, Curtis communication controller
5, import a two-speed hydraulic power unit
6, the side with quick replacement battery structure
7, a variety of specifications door frame to meet different customer needs
suitable mode
1, relatively flat cement or similar hard pavement
2, suitable for single pallet handling, stacking of the goods
3, suitable for high frequency and heavy load cargo handling, stacking
4, working time is about 5 hours
TIPS
Does not apply to contain flammable and explosive gas or dust
1.2ton Pallet Stacker Electric Warehouse Equipment (CDD12)
| Model | CDD12 | |||
| Load capacity/rated load | kg | 1200 | ||
| Load center distance C | mm | 600 | ||
| Overall length L1 | mm | 1463 | ||
| Overall width b1 | mm | 800 | ||
| Overall height h1 | mm | 2052 | ||
| Wheelbase Y | mm | 1240 | ||
| Lowered fork height h4 | mm | 85 | ||
| Lift height h5 | mm | 3000 | ||
| Minimum ground clearance h6 | mm | 30 | ||
| Fork outside spacing b2 | mm | 560 | ||
| Fork inside spacing b3 | mm | 240 | ||
| Fork length h7 | mm | 1150 | ||
| Fork length e | mm | 160 | ||
| Front wheel tread b4 | mm | 400 | ||
| Max.lift speed | unladen | mm/s | 160 | |
| laden | mm/s | 120 | ||
| Max.travel speed | unladen | km/h | 3.5 | |
| aden | km/h | 3.5 | ||
| Minimum outside turning radius Wa | mm | 1408 | ||
| Max.gradability,laden | % | 3 | ||
| Max.gradability,unladen | % | 5 | ||
| Service weight(with battery) | kg | 620 | ||
| Battery capacity | Ah | 80 | ||
| Battery voltage | V | 24 | ||
| (DC)Lift motor(DC) | KW | 2.2 | ||
| (AC)Drive motor(AC) | KW | 0.75 | ||
| Ast Aisle width for lengthways | 1000x1200 Pallets | mm | 2225 | |
| 800x1200 Pallets | mm | 2150 | ||
