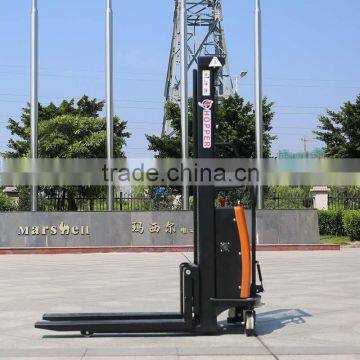

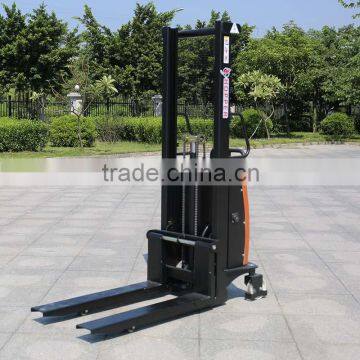

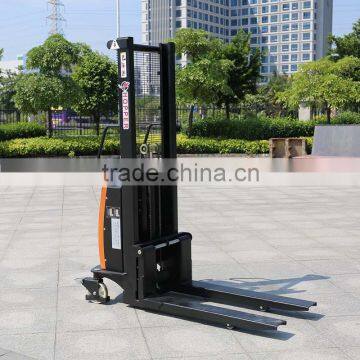

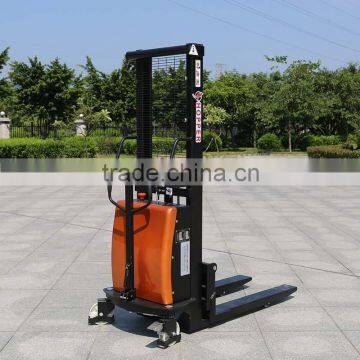

China Top Rank Semi-Electric Pallet Stacker (CDSD10)
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
Marshell
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1.6ton Battery Electric Pedestrian Stacker (CDD16)NegotiableMOQ: 1 Unit -
Competitive Price High Quality Walkie Pallet Stacker (CBD25)NegotiableMOQ: 1 Unit
-
Competitive Price High Quality Electric Pallet Stacker (CDSD10)NegotiableMOQ: 1 Unit
-
Marshell Brand Electric Warehouse Stacker (CDSD10)NegotiableMOQ: 1 Unit
-
Commpetitive Price of Electric Forklift Truck (CDSD10)NegotiableMOQ: 1 Unit
Condition
New
Place of Origin
Shanghai, China
Brand Name
Marshell
Model Number
CDSD10
Type
Powered Pallet Truck
Power Souce
AC Motor
Rated Loading Capacity
1000KG
Max. Lifting Height
1740mm
Min. Lifting Height
80mm
Fork Length
685mm
Fork Width
685mm
Overall Dimensions
2550x790x2070mm
Certification
CE
After-sales Service Provided
Overseas third-party support available
China Top Rank Semi-Electric Pallet Stacker (CDSD10)
Main configuration
1, maintenance-free ac drive system
2, electronic steering system
3, 24 v / 270 ah high-capacity lead-acid batteries
4, Curtis communication controller
5, import a two-speed hydraulic power unit
6, the side with quick replacement battery structure
7, a variety of specifications door frame to meet different customer needs
suitable mode
1, relatively flat cement or similar hard pavement
2, suitable for single pallet handling, stacking of the goods
3, suitable for high frequency and heavy load cargo handling, stacking
4, working time is about 5 hours
TIPS
Does not apply to contain flammable and explosive gas or dust
China Top Rank Semi-Electric Pallet Stacker (CDSD10)
| GENERAL SPECIFICATION: | ||
| Model | CDSD10 | |
| Load capacity/rated load | kg | 1000 |
| Load center distance | C(mm) | 450 |
| Wheelbase | Y(mm) | 760 |
| Service weight (with battery) | kg | 365 |
| Lift height | H3(mm) | 1600 |
| Lowered fork height | H1(mm) | 85 |
| Overall length | L1(mm) | 1740 |
| Overall width | B1(mm) | 760 |
| Turning radius | Wa(mm) | 1350 |
| Fork dimensions | s/e/l mm | 60/150/1100 |
| Width overall forks | b5(mm) | 330-640 |
| Battery volts./ Cap. | V/Ah | 12/100 |
| Container Quantity(1*20FT/40FT/40HQ) | pcs | 14pcs/28pcs/28pcs |
China Top Rank Semi-Electric Pallet Stacker (CDSD10)
