Tungsten Carbide Drawing Die
1.Structure of dies:

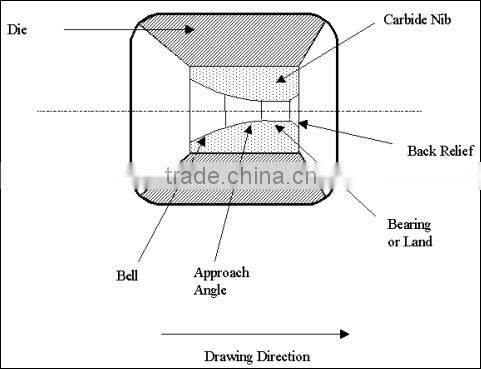

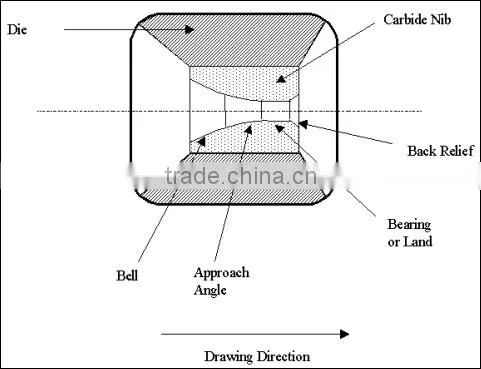

The hole of the wire drawing dies is made up of four parts:
•Lubricating area of the entry: There is an arc to make the wires enters to the workaround conveniently.
•The workaround: The metals come about plastic deformation while drawing, the cross section of the metals is compressed and reduced.
•Diameter fixed district: to guarantee the size and form accurate and even, lengthen the service life of the die.
•Wire outlet area: wire outlet terminal can prevent scuffing and break-up when the machine is stopped.
2. The production and delivery will take 15 days.
the whole set of dies can guarantee drawing 30000tons of copper wires. It can reduce the copper powder in the course of drawing. The surface of finished wires is smooth without any defect. After the dies drawing copper wires of 30000 tons, it will not be damaged, but it needs to safeguard, maintain, and polish.
3.Applications:
Drawing dies are typically used in the drawing of wire, rod, bar, and tube. The materials that are drawn are typically copper alloys, aluminum alloys, and steel alloys.
4.Configurations:

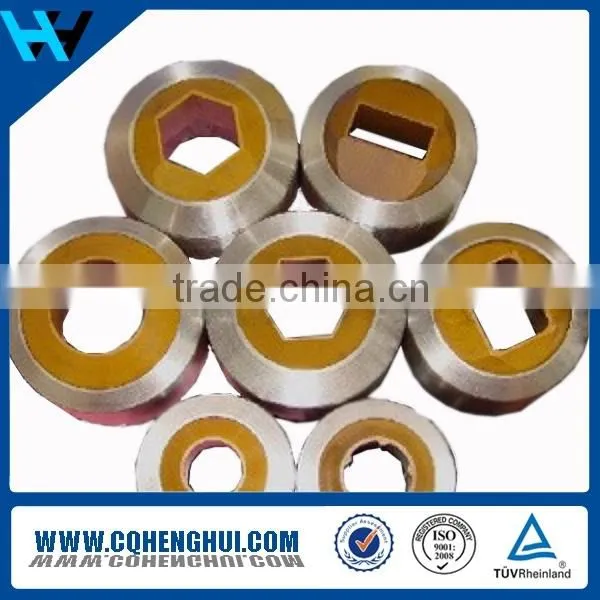

Round Drawing Dies
Hexagon Drawing Dies
Square Drawing Dies
Rectangle Drawing Dies
Custom Shapes

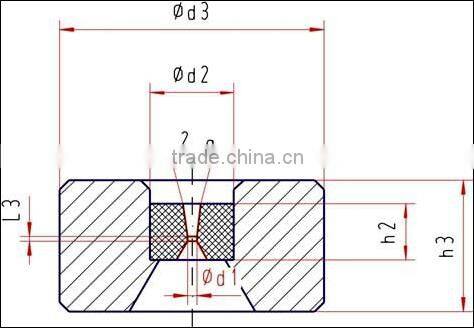

Drawing Dies Parameters(unit: mm)
Hole SizeΦd | Hole Size | Ovality | Casing |
Φ0.501~0.750 | ≤0.0030 | ≤0.0020 | Φ30×10 |
Φ0.751~1.50 | ≤0.0035 | ≤0.0025 | Φ37×12 |
Φ1.501~2.00 | ≤0.0050 | ≤0.0030 | Φ37×12 |
Φ2.001~3.00 | ≤0.0070 | ≤0.0050 | Φ41×20 |
Φ3.001~4.60 | ≤0.010 | ≤0.0080 | Φ41×20 |
Φ4.601~8.00 | ≤0.015 | ≤0.012 | Φ41×24 |
Henghui Precision Mold Co.,Ltd offers a wide selection of drawing dies and mandrels for different applications that involves tool design, machining tasks, as well as wire and carbide productions. These ready-to-use high-performance wire drawing dies and mandrels are at par with the standards set by the ISO. The inventory of drawing wires include, tube dies, bar dies, special profile dies, and drawing die nibs.
Being a client oriented firm, we are engaged in manufacturing and supplying a wide range of Carbide Dies for our clients. In sync with set industry standards, the offered dies are manufactured using quality assured raw material and ultra-modern technology. In order to ensure their premium quality, our quality experts rigorously check these dies against various quality parameters. Highly acclaimed in automotive, aerospace, construction and other similar industries, we provide these dies in various dimensions and at affordable prices.
