500W~1500W AUTOJET With 24L Tank Booster Water Pump

FOB Price

US$ 38 - 58 / Piece

100 Pieces(Min. Order)

Port FUZHOU
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Fujian, China	Brand Name	OEM
Model Number	AUTOJETS	Theory	Jet Pump
Structure	Single-stage Pump	Usage	Water
Power	Electric	Standard or Nonstandard	Standard
Fuel	Other, CLEAN WATER	Pressure	High Pressure
Application	Other, CLEAN WATER

Product Description

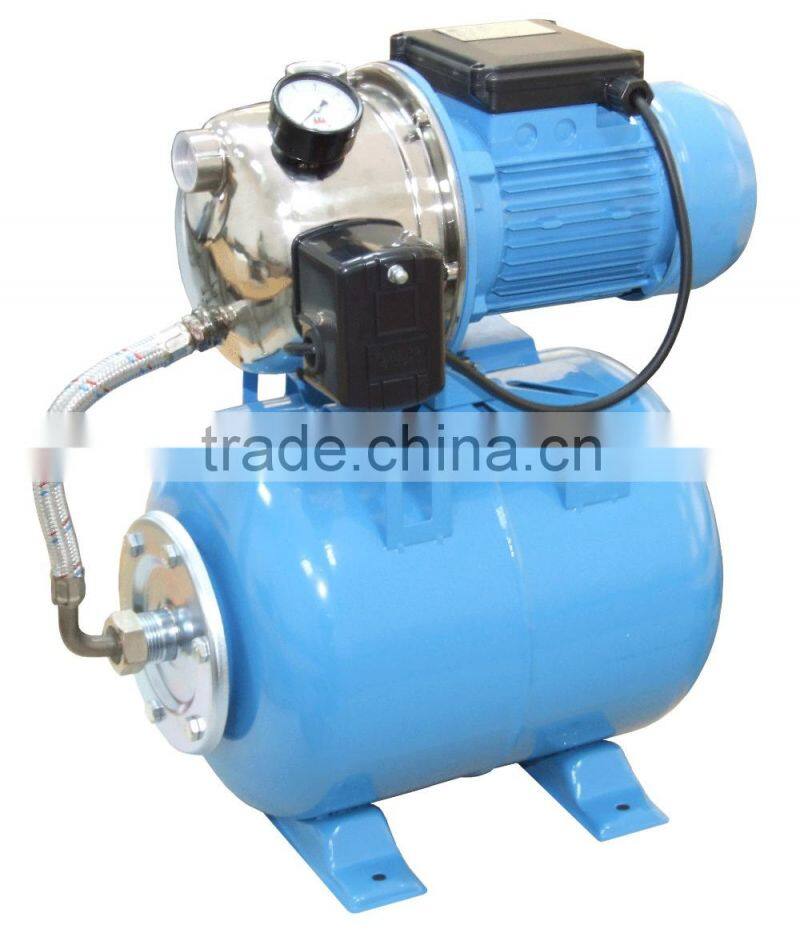

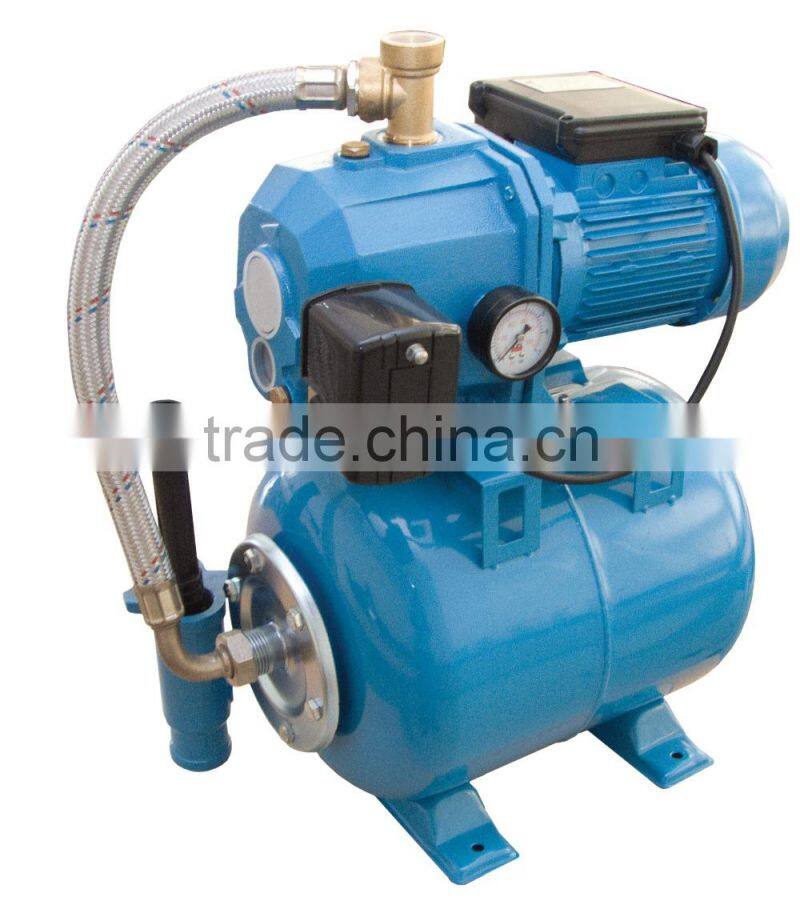

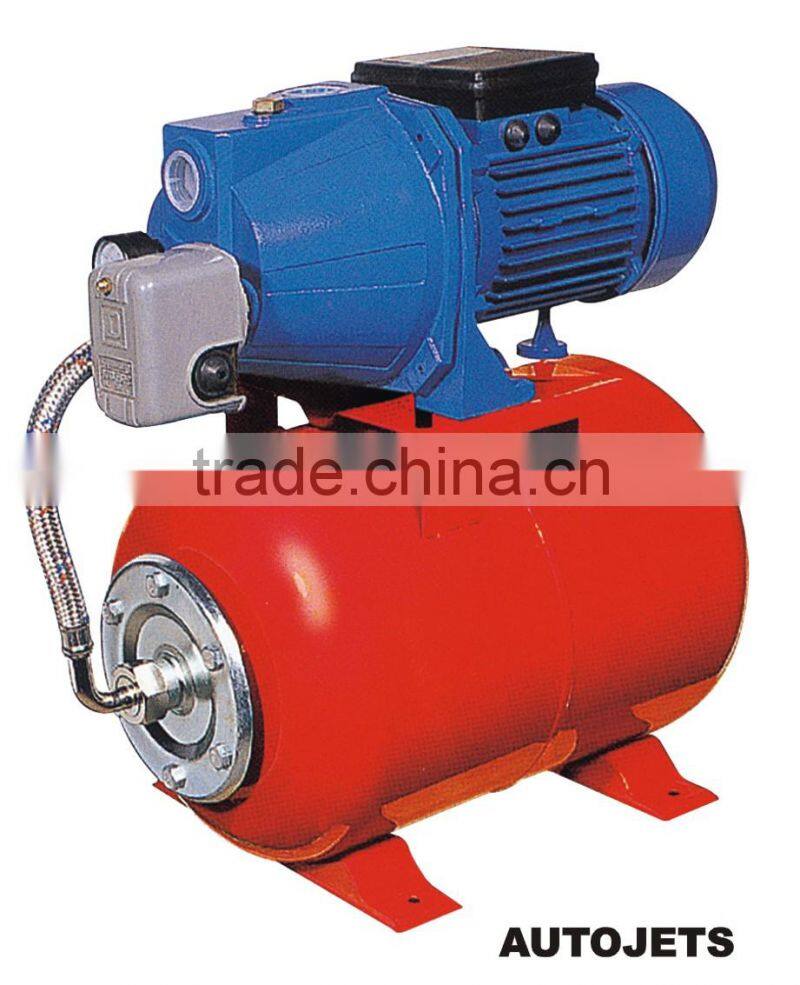

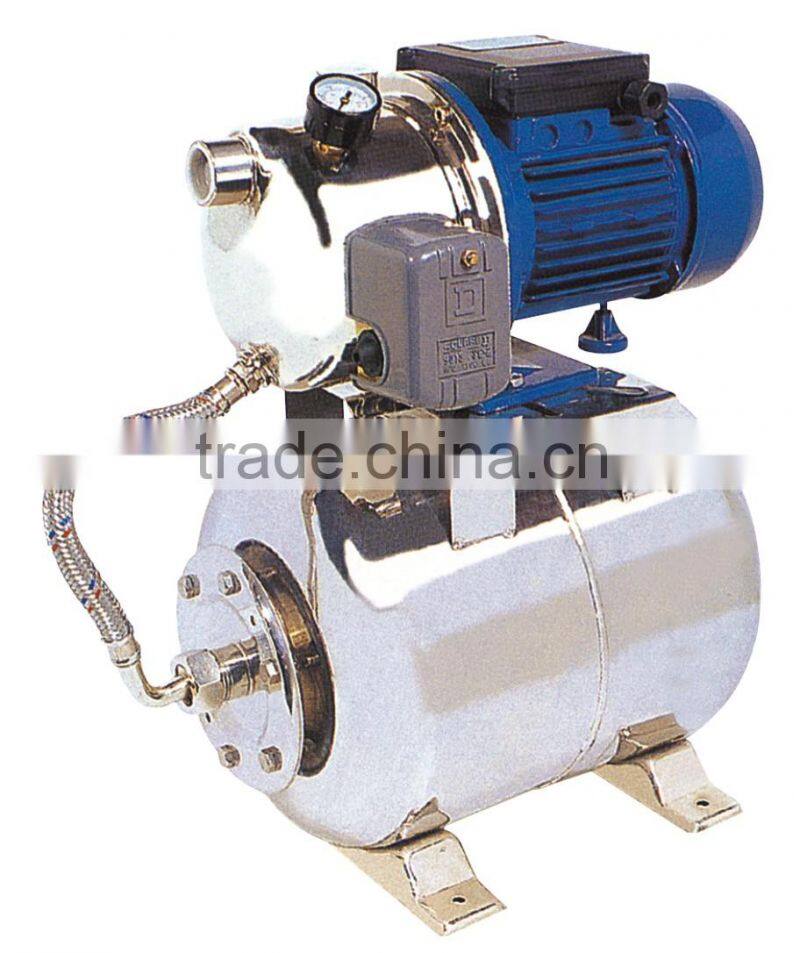

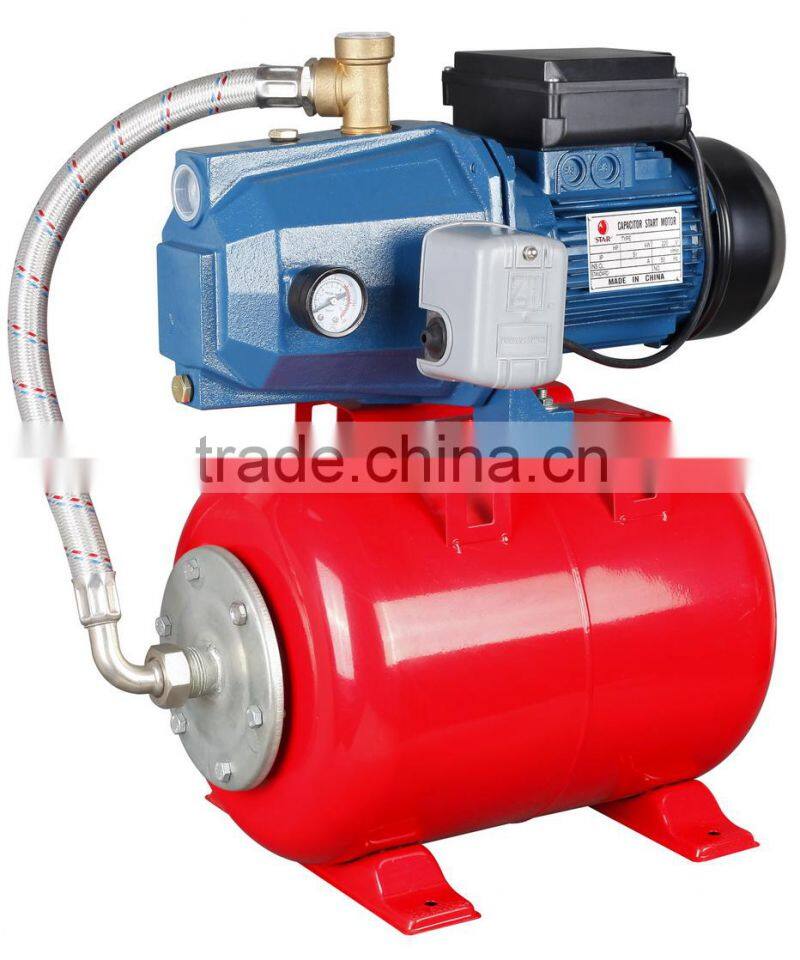

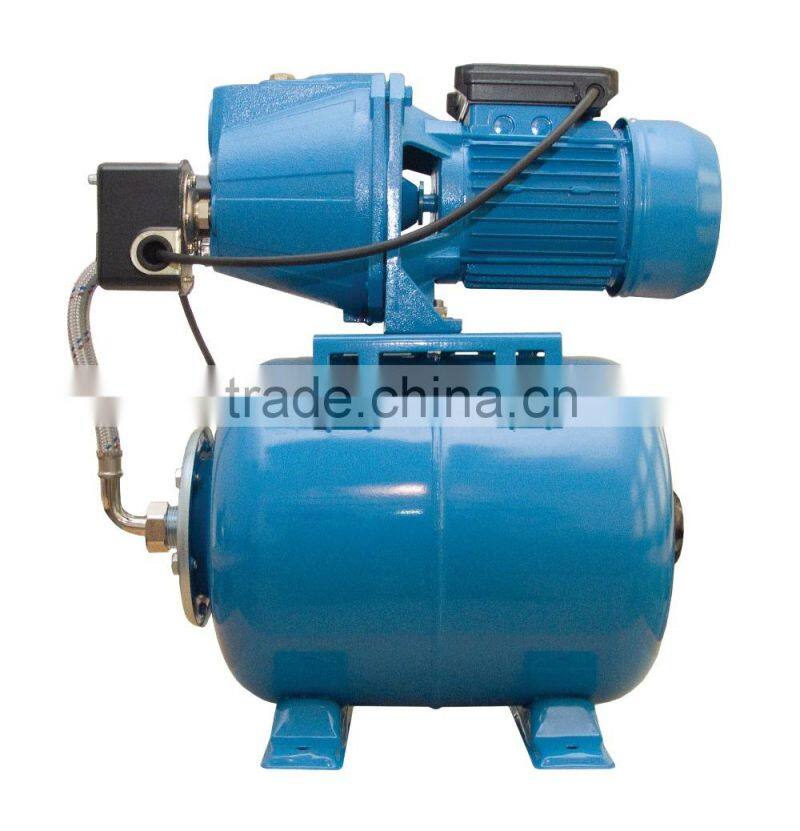

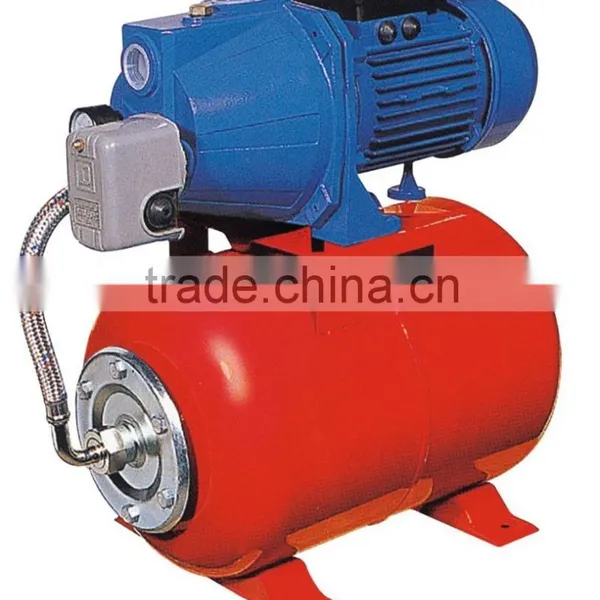

500W~1500W AUTOJET with 24L Tank Booster Water Pump

Pressure tank: 19L,24L

Pressure switch: 1-1.3KG

Pressure guage: MR/6

Brass connector: 5-way

Suction lift up to 9 m
Fluid temperature up to + 60°C
Maximum ambient temperature +40°C

INSTALLATION AND APPLICATIONS

These pumps are suitable for handing clean water not containing abrasive particles and fluids which are not chemically aggressive to the pump components.

These pumps consist for DB series pump,pressure tank,pressure switch,pressure guages and brass connector.
They are extremely reliable, light, economic and simple to use, finding many uses in domestic applications, in particular the automatic distribution of water from surge tanks, watering gardens and for boosting insufficient mains water pressure.
These pumps should be installed in a covered area, protected against the weather.

PERFORMANCE

The wide range of pumps in the DB series satisfies the most various operating requirements with features such as:

high heads with respect to power requirements.
Stable operating curves, with small variations in delivery rates with respect to large variations in the pressure demand.
high tolerance of the presence of entrained air in the fluid to the pumped.
Suction capacity up to 9 meters.

AUTOJETL Series Self-Priming JET Pump
Model	Power		Q.MAX	H.MAX	S.Head	Speed	Pipe Dia	N.W	Packing size
Model	W	HP	(L/min)	(m)	(m)	(r.p.m)	(Inch)	(kg)	(mm)
AUTOJET-60L	460	0.6	55	35	9	2850	1"*1"	17.3	435188230
AUTOJET-80L	600	0.8	60	40			1"*1"	18	435188230
AUTOJET-100L	750	1	60	45			1"*1"	18.7	435188230

AUTOJETP Series Self-Priming JET Pump
Model	Power		Q.MAX	H.MAX	S.Head	Speed	Pipe Dia	N.W	Packing size
Model	W	HP	(L/min)	(m)	(m)	(r.p.m)	(Inch)	(kg)	(mm)
AUTOJET-60P	460	0.6	55	35	9	2850	1"*1"	17.6	435182260
AUTOJET-80P	600	0.8	60	40			1"*1"	18.3	435182260
AUTOJET-100P	750	1	60	45			1"*1"	19	435182260
AUTOJET-140P	1100	1.5	60	65			1"*1"	35	556235290
AUTOJET-160P	1500	2	65	70			1"*1"	38	556235290
