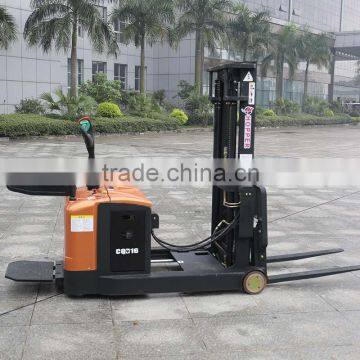

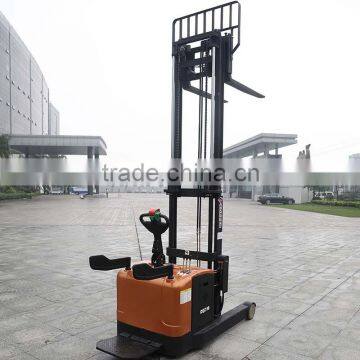

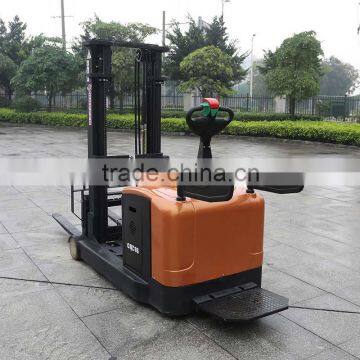

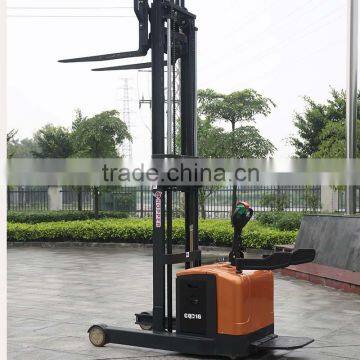

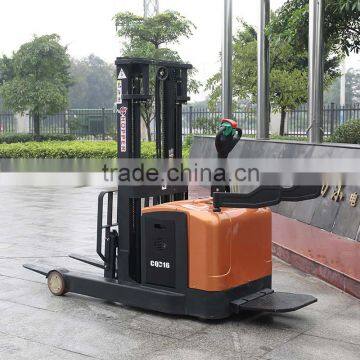

Load Capacity 1600kg Battery Reach Forklift (CQD16)
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shanghai, China
Brand Name:
Marshell
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Marshell 1.6t Small Electric Reach Stacker (CQD16)NegotiableMOQ: 1 Unit -
1400kg-1600kg Full Electric AC Motor Reach Stacker Price (CQD16)NegotiableMOQ: 1 Unit
-
Electric Reach Pallet Stacker With Good Stability (CQD16)NegotiableMOQ: 1 Unit
-
1.4-1.6t Semi Electric Stacker/Pallet Stacker/Reach Stacker (CQD16)NegotiableMOQ: 1 Unit
-
Power Steering Hydraulic Power Electric Reach Stacker (CQD16)NegotiableMOQ: 1 Unit
Condition
New
Place of Origin
Shanghai, China
Brand Name
Marshell
Model Number
CQD16
Type
Manual Pallet Truck
Power Souce
AC Motor
Rated Loading Capacity
1600KG
Max. Lifting Height
3000mm
Min. Lifting Height
80mm
Fork Length
2320MM
Fork Width
1035MM
Overall Dimensions
100/40/1070MM
Certification
CE
After-sales Service Provided
Overseas third-party support available
Load Capacity 1600kg Battery Reach Forklift (CQD16)
Main configuration
1, maintenance-free ac drive system
2, electronic steering system
3, 24 v / 270 ah high-capacity lead-acid batteries
4, Curtis communication controller
5, import a two-speed hydraulic power unit
6, the side with quick replacement battery structure
7, a variety of specifications door frame to meet different customer needs
suitable mode
1. Vertical driving wheel, driving efficiency, easy installation & maintenance.
2. Compact struture and low gravity.
3. Tilting system forks easy for loading and stacking.
TIPS
Does not apply to contain flammable and explosive gas or dust
Load Capacity 1600kg Battery Reach Forklift (CQD16)
| Model | CQD10 | CQD16 | CQD20 |
| Loading capacity | 1000KG | 1600KG | 2000KG |
| Loading center distance | 500MM | 500MM | 500MM |
| Wheelbase | 1100MM | 1400MM | 1500MM |
| Servise weight (with battery) | 1500KG | 1600KG | 2500KG |
| Tyre size, drving wheel | 230/75MM | 230/75MM | 230/75MM |
| Tyre size, loading wheel | 180/55MM | 210/85MM | 210/85MM |
| Tyre size, balance wheel | 130/55MM | 130/55MM | 130/55MM |
| Driving wheel+Loading wheel/Balance wheel | 1+2/2 | 1+2/2 | 1+2/2 |
| Front overhang | 100mm | 130mm | 130mm |
| Lift height | 2500/3000mm | 3500/4000mm | 4500/5000mm |
| Height of triller in drive position min./max. | 1100/1400mm | 1100/1400mm | 1100/1400mm |
| Height, mast lowered | 1725/1925mm | 2225/2475mm | 2015/2240mm |
| Overall lengh | 2250MM | 2320MM | 2420MM |
| Overall width | 1000MM | 1035MM | 1035MM |
| Turn radius | 1350MM | 1640MM | 1760MM |
| Fork dimensions | 100/35/1070MM | 100/40/1070MM | 100/40/1070MM |
| Fork carriage width | 200-725mm | 200-725mm | 200-725mm |
| Aisle width for pallets 1000*1200 crossways | 2500mm | 2800mm | 2900m |
| Aisle width for pallet 800*1200 crossways | 2650MM | 2950MM | 3050MM |
| Reach distance | 350mm | 470mm | 470mm |
| Travel speed(laden/unladen) | 4/5KM/H | 4/5KM/H | 4/5KM/H |
| Lift speed(laden/unladen) | 30/50MM/S | 25/45MM/S | 18/40MM/S |
| Max. gradeability(laden/unladen) | 5/8% | 5/8% | 5/8% |
| Driving motor | 1.5KW | 1.5KW | 1.5KW |
| Lift Motor | 2.2KW | 3KW | 3KW |
| Battery volts./Cap. | 24V 240AH | 24V 240AH | 24V 240AH |
| Container qty (20FT/40FT/40HQ) | 4/8/8PCS | 4/8/8PCS | 4/8/8PCS |
Load Capacity 1600kg Battery Reach Forklift (CQD16)
