bearing H2318 adapter sleeves nsk H2318
- 50000 Piece / Pieces per Month
- SHANGHAI
- T/T Credit Card
- 162250 GA CYLINDRICAL ROLLER BEARING High Speed Wire Rod Rolling Mill Bearing
- F-546485.01. KL-H95 DEEP GROOVE BALL BEARING High Speed Wire Rod Rolling Mill Bearing
- Z-507333.ZL Four-row cylindrical bearings High Speed Wire Rod Rolling Mill Bearing
- Z-504547.ZL Cylindrical Roller Bearing Multi Row High Speed Wire Rod Rolling Mill Bearing
- Z-533575.ZL Four - row Cylindrical roller bearing High Speed Wire Rod Rolling Mill Bearing
- 507335.KL Deep Groove Ball Bearing High Speed Wire Rod Rolling Mill Bearing
Product Details
Brand Name: | NSK | Bore Size: | 86, | Outside Diameter: | 90, |
Model Number: | H2318 | Precision Rating: | PO P4 P5 P6 | Seals Type: | NO |
Place of Origin: | Jiangsu, China |
Product Description
Adapter sleeves H2318
Applications:
1. Adapter sleeve is used to fix the conic aperture self-aligning ball bearing (self-aligning ball bearing, self-aligning roller bearing) on the non-bearing shoulder bearing. It is simply structured and its working is reliable. Easy to replace the bearing.
2, Widely applied in the lines of textile, light industry, metallurgy, belt convey and transmission equipment, etc.
Advantages:
1) Adapter sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating as they can be used on smooth or stepped shafts.
2) They are easy to mount and require no additional location on the shaft.
3) When adapter sleeves are used on smooth shafts, the bearing can be located at any position on the shaft.
4) When used on stepped shafts, together with an abutment ring, bearings can be accurately positioned axially and bearing dismounting is also facilitated.

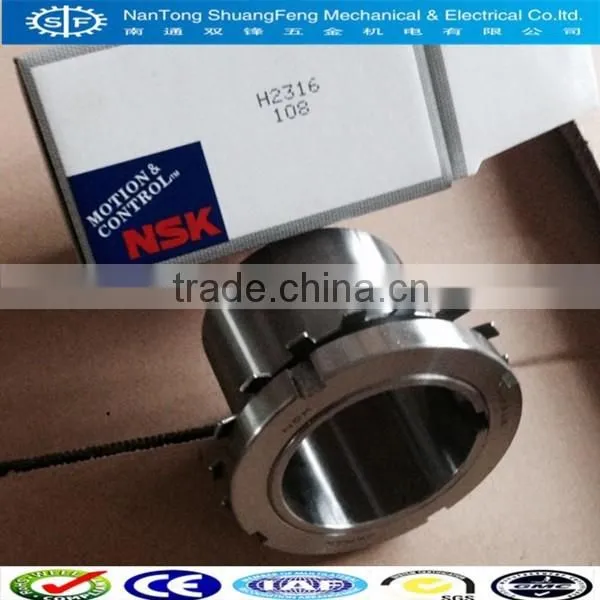

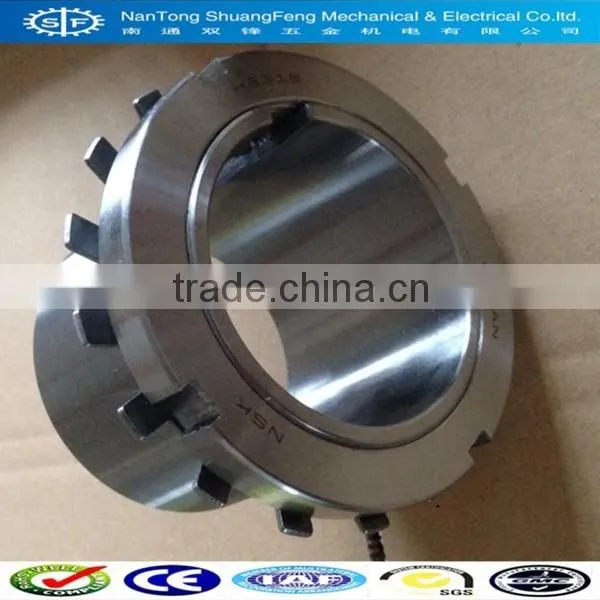

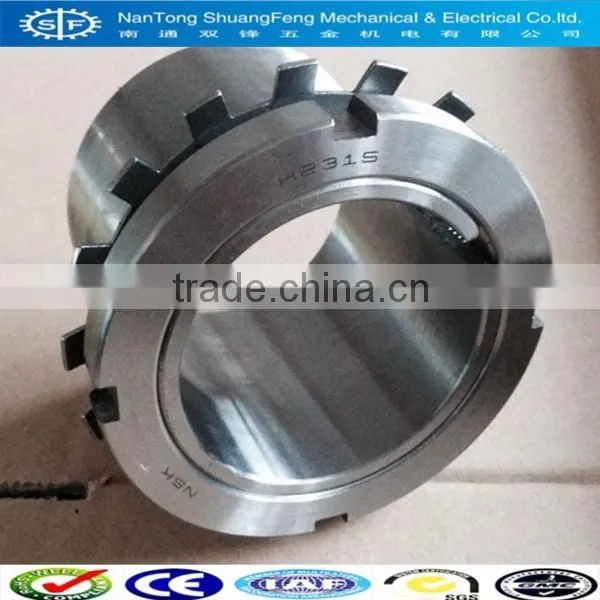

Pictures:
Part of adapter sleeve detail dimensions:
Bearing No. | Size | Supporting bearing | Weight(kg) | ||||
d | d1 | B1 | d2 | ||||
H2302 | 15 | 12 | 25 | 25 | -- | -- | -- |
H2303 | 17 | 14 | 27 | 28 | -- | -- | -- |
H2304 | 20 | 17 | 31 | 32 | 2304K | -- | 0.05 |
H2305 | 25 | 20 | 35 | 38 | 2305K | -- | 0.085 |
H2306 | 30 | 25 | 38 | 45 | 2306K | -- | 0.11 |
H2307 | 35 | 30 | 43 | 52 | 2307K | -- | 0.16 |
H2308 | 40 | 35 | 46 | 58 | 2308K | 22308K | 0.22 |
H2309 | 45 | 40 | 50 | 65 | 2309K | 22309K | 0.27 |
H2310 | 50 | 45 | 55 | 70 | 2310K | 22310K | 0.34 |
H2311 | 55 | 50 | 59 | 75 | 2311K | 22311K | 0.39 |
H2312 | 60 | 55 | 62 | 80 | 2312K | 22312K | 0.45 |
H2313 | 65 | 60 | 65 | 85 | 2313K | 22313K | 0.52 |
H2314 | 70 | 60 | 68 | 92 | 2314K | 22314K | 0.88 |
H2315 | 75 | 65 | 73 | 98 | 2315K | 22315K | 1.1 |
H2316 | 80 | 70 | 78 | 105 | 2316K | 22316K | 1.2 |
H2317 | 85 | 75 | 82 | 110 | 2317K | 22317K | 1.35 |
H2318 | 90 | 80 | 86 | 120 | 2318K | 22318K | 1.6 |
H2319 | 95 | 85 | 90 | 125 | 2319K | 22319K | 1.8 |
H2320 | 100 | 90 | 97 | 130 | 2320K | 22320K | 2 |

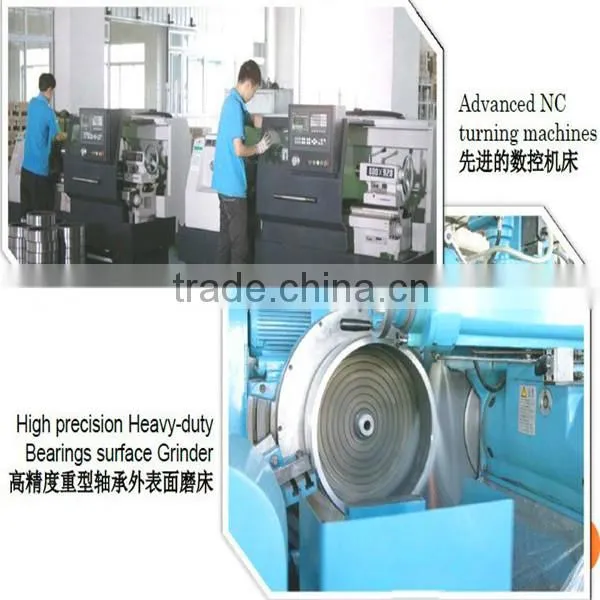

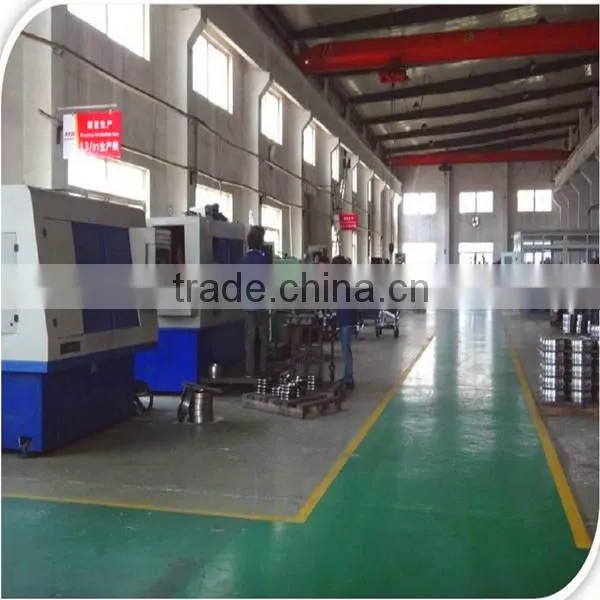

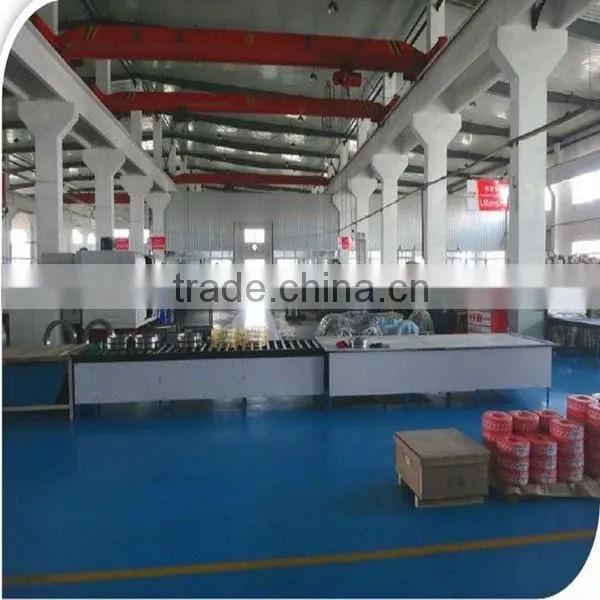

View of factory :

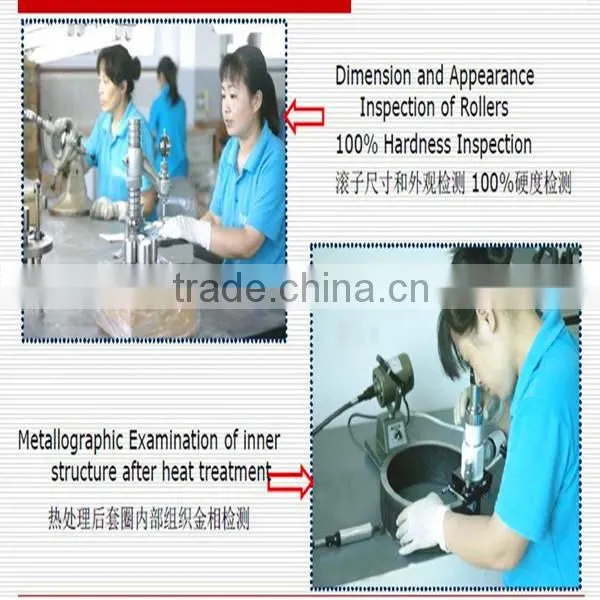

Quality control:
Our Exhibition:
Production Process:
Contact Us
- Nantong Shuangfeng Hardware Mechanical Co., Ltd.
- Contact nameJerry Xu
- Phone86-513-80115986
- Address Main Bldg., No. 127, Renmin Mid. Road Nantong,Jiangsu
