Adapter sleeves H2312
Applications:
1. Adapter sleeve is used to fix the conic aperture self-aligning ball bearing (self-aligning ball bearing, self-aligning roller bearing) on the non-bearing shoulder bearing. It is simply structured and its working is reliable. Easy to replace the bearing.
2, Widely applied in the lines of textile, light industry, metallurgy, belt convey and transmission equipment, etc.
Advantages:
1) Adapter sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating as they can be used on smooth or stepped shafts.
2) They are easy to mount and require no additional location on the shaft.
3) When adapter sleeves are used on smooth shafts, the bearing can be located at any position on the shaft.
4) When used on stepped shafts, together with an abutment ring, bearings can be accurately positioned axially and bearing dismounting is also facilitated.

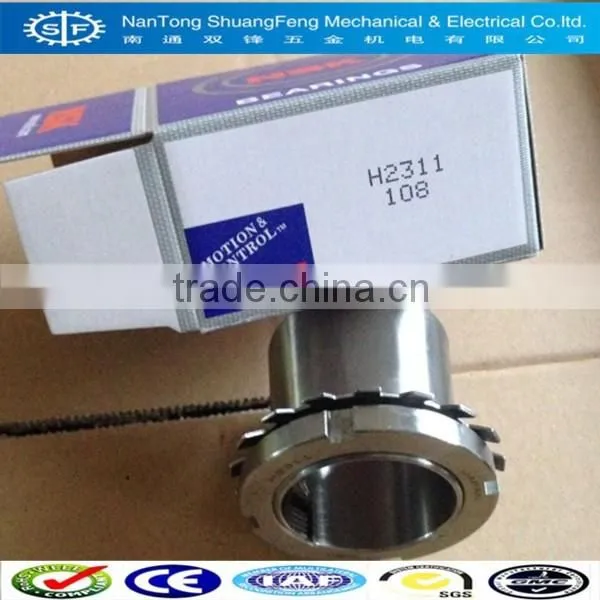

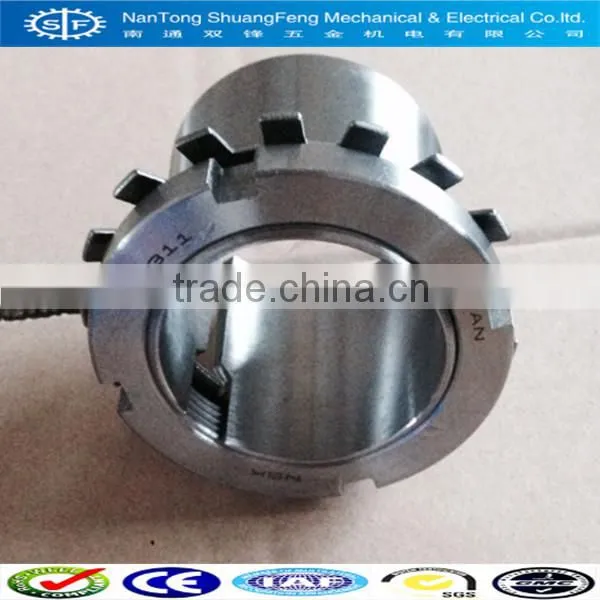

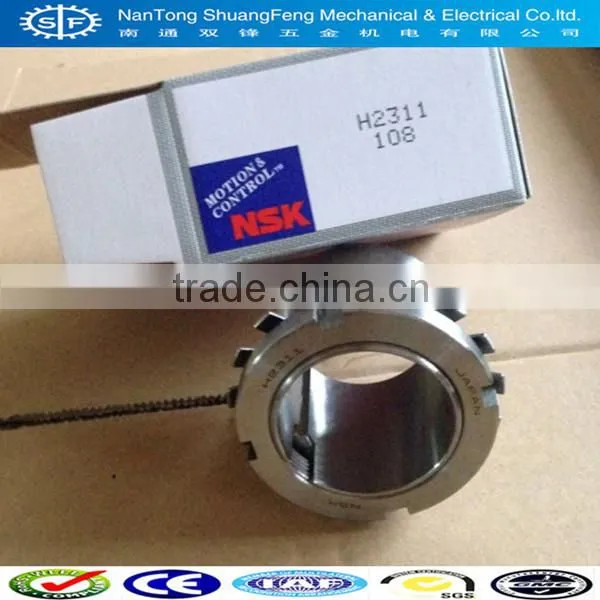

Pictures:
Part of adapter sleeve detail dimensions:
| Bearing No. | Size | Supporting bearing | Weight(kg) | ||||
| d | d1 | B1 | d2 | ||||
| H2302 | 15 | 12 | 25 | 25 | -- | -- | -- |
| H2303 | 17 | 14 | 27 | 28 | -- | -- | -- |
| H2304 | 20 | 17 | 31 | 32 | 2304K | -- | 0.05 |
| H2305 | 25 | 20 | 35 | 38 | 2305K | -- | 0.085 |
| H2306 | 30 | 25 | 38 | 45 | 2306K | -- | 0.11 |
| H2307 | 35 | 30 | 43 | 52 | 2307K | -- | 0.16 |
| H2308 | 40 | 35 | 46 | 58 | 2308K | 22308K | 0.22 |
| H2309 | 45 | 40 | 50 | 65 | 2309K | 22309K | 0.27 |
| H2310 | 50 | 45 | 55 | 70 | 2310K | 22310K | 0.34 |
| H2311 | 55 | 50 | 59 | 75 | 2311K | 22311K | 0.39 |
| H2312 | 60 | 55 | 62 | 80 | 2312K | 22312K | 0.45 |
| H2313 | 65 | 60 | 65 | 85 | 2313K | 22313K | 0.52 |
| H2314 | 70 | 60 | 68 | 92 | 2314K | 22314K | 0.88 |
| H2315 | 75 | 65 | 73 | 98 | 2315K | 22315K | 1.1 |
| H2316 | 80 | 70 | 78 | 105 | 2316K | 22316K | 1.2 |
| H2317 | 85 | 75 | 82 | 110 | 2317K | 22317K | 1.35 |
| H2318 | 90 | 80 | 86 | 120 | 2318K | 22318K | 1.6 |
| H2319 | 95 | 85 | 90 | 125 | 2319K | 22319K | 1.8 |
| H2320 | 100 | 90 | 97 | 130 | 2320K | 22320K | 2 |
