Bearing Adapter Sleeve NSK Adapter Sleeves H2308

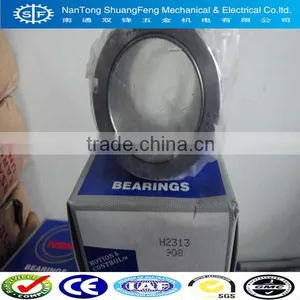

Bearing Adapter Sleeve NSK Adapter Sleeves H2308 thumbnail-1
Bearing Adapter Sleeve NSK Adapter Sleeves H2308 photo-1
US$ 0.1 - 50 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Brand Name:
NSK
Bore Size:
40,
Model Number:
H2309
Contact Supplier Request Quote Chat Now
Nantong Shuangfeng Hardware Mechanical Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name NSK
Bore Size 40,
Model Number H2309
Precision Rating PO P4 P5 P6
Seals Type NO
Place of Origin Jiangsu, China

Specifications

NSK adapter sleeve H2308
1,rich stock
2,bearing manufacture
3,offer free samples
4,Deliver in time



Description of Adapter Sleeve:





bearing accessories,
rolling bearing accessories
withdrawal sleeves,
locknuts, lock washer, etc



Feature of Adapter Sleeve:





1. Allows maintenance-free and long-life operation
2. Suitable for high static and dynamic loads
3. With low and smoothly coefficient of friction and without stick-slip effects
4. Suitable for dirty, corrosion, impact load and edge loading
5. The base material provided a good shock-absorbing capacity
6. Can be used over a large temperature range
7. Suitable for reciprocating, rotating and oscillating movement with start frequency and difficulty to form oil film occasions
8. With low wear rate and long life service
Allows maintenance-free and long-life operation





Type of Adapter Sleeve:





Adapter sleeve (H) --











Adapter sleeves are the most commonly used components for locating bearings that has a tapered bore, onto cylindrical shaft seating’s as they can be employed both on smooth shafts and stepped shafts.







They are easy to mount and require no additional fixation on the shaft. Using adapter sleeves on smooth shafts, the bearing can be located at any position on the shaft . EESCO adapter sleeves are supplied complete with lock nut and locking device







Adapter sleeve for oil injection (OH) --







These sleeves have an oil supply duct (or ducts) at the threaded side of the sleeve and distributor grooves in the bore as well as the outside surface.



Sleeves up to and including size 40 have on supply duct, larger sleeves have two.



Adapter Sleeve :

bearing adapter sleeve NSK adapter sleeves H2308

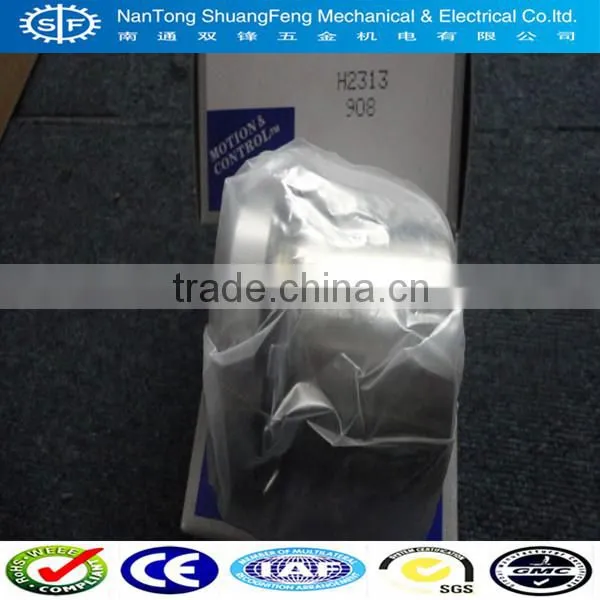

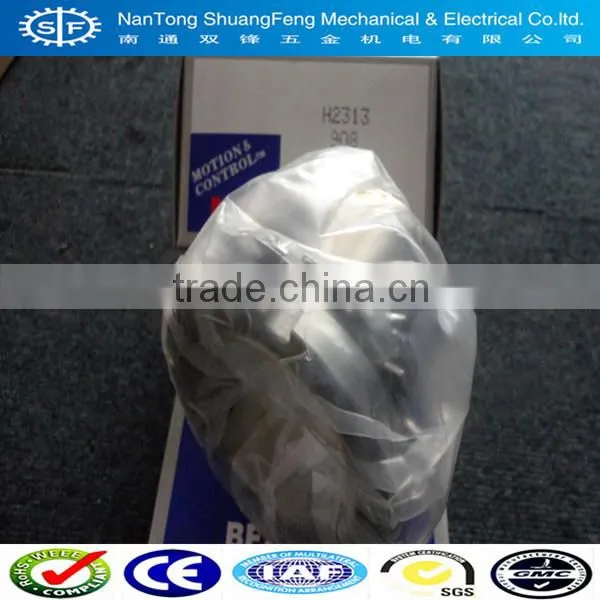

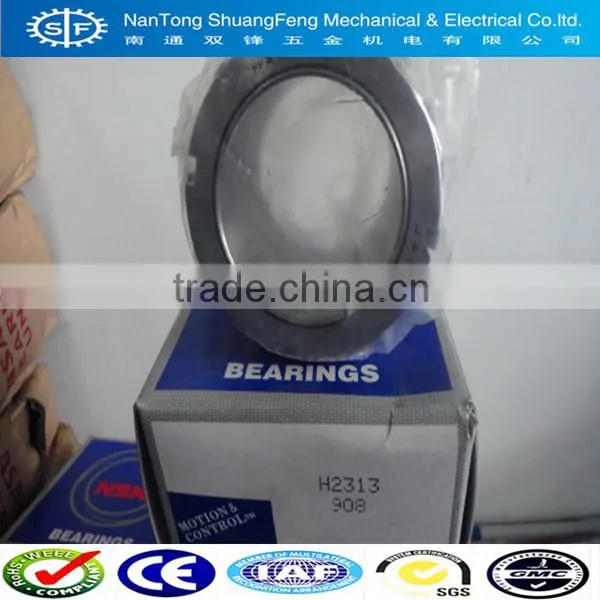

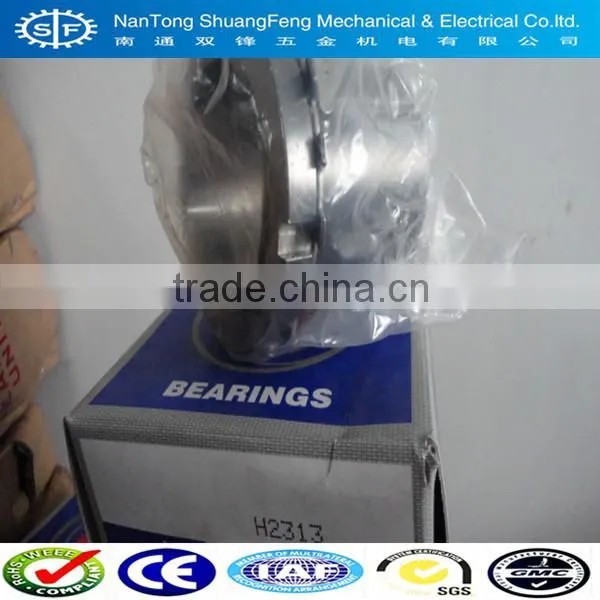

Detailed Adapter Sleeve Product Show:

bearing adapter sleeve NSK adapter sleeves H2308bearing adapter sleeve NSK adapter sleeves H2308bearing adapter sleeve NSK adapter sleeves H2308bearing adapter sleeve NSK adapter sleeves H2308







Part of adapter sleeve detail dimensions:





Adapter
Sleeve 		Shaftd1 Dimensions(mm) Weight
(kg) 		Composition
HS
in 		HA
in 		HE
in 		H
mm 		d d2 B1 B2 G Sleeve Locknut Lockwasher
H304       17 20 32 28 7 M20x1 0.045 A304 KM4 MB04
H305 7/8 13/16 3/4 20 25 38 29 8 M25x1.5 0.075 A305 KM5 MB05
H306 7/8 15/16 1 25 30 45 31 8 M30x1.5 0.11 A306 KM6 MB06
H307 1-1/8 1-3/16 1-1/4 30 35 52 35 9 M35x1.5 0.14 A307 KM7 MB07
H308 1-3/8 1-5/16 1-1/4 35 40 58 36 10 M40x1.5 0.19 A308 KM8 MB08
H309 1-5/8 1-7/16 1-1/2 40 45 65 39 11 M45x1.5 0.25 A309 KM9 MB09
H310 1-5/8 1-11/16 1-3/4 45 50 70 42 12 M50x1.5 0.3 A310 KM10 MB10
H311 1-7/8 1-15/16 2 50 55 75 45 12 M55x2 0.35 A311 KM11 MB11
H312 2-1/8 2-1/16 2-1/4 55 60 80 47 13 M60x2 0.39 A312 KM12 MB12
H313 2-3/8 2-3/16 2-1/4 60 65 85 50 14 M65x2 0.46 A313 KM13 MB13
H314       60 70 92 52 14 M70x2 0.72 A314 KM14 MB14
H315 2-5/8 2-7/16 2-1/2 65 75 98 55 15 M75x2 0.83 A315 KM15 MB15
H316 2-7/8 2-11/16 2-3/4 70 80 105 59 17 M80x2 1 A316 KM16 MB16
H317   2-15/16 3 75 85 110 63 18 M85x2 1.2 A317 KM17 MB17
H318 3-1/8 3-3/16 3-1/4 80 90 120 65 18 M90x2 1.35 A318 KM18 MB18
H319   3-5/16 3-1/4 85 95 125 68 19 M95x2 1.55 A319 KM19 MB19
H320   3-7/16 3-1/2 90 100 130 71 20 M100x2 1.7 A320 KM20 MB20
H321       95 105 140 74 20 M105x2 1.95 A321 KM21 MB21
H322   3-15/16 4 100 110 145 77 21 M110x2 2.2 A322 KM22 MB22





Application:







1. Adapter sleeve is used tofix the conic aperture self-aligning ball bearing (self-aligning ball bearing, self-aligning roller bearing) on the non-bearing shoulder bearing. It is simply structured and its working is reliable. Easy to replace the bearing.







2, Widely applied in the lines of textile, light industry, metallurgy, belt convey and transmission equipment, etc.
