Dust Collector For Medical Work

FOB Price

Negotiable / Unit

1 Unit(Min.Order)

Supply Ability 200 Unit / Units per Month
Port HongKong China
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, Dust Collector
Efficiency	>=99.7%	Minimum Particle Size	0.01micron
Place of Origin	Guangdong, China	Brand Name	PURE-AIR
Model Number	PA-300TS	Dimension(LWH)	415255450mm
Weight	16kg(N.W)	Certification	CE Certification, CE Certification
Warranty	1 year guarantee	After-sales Service Provided	Overseas third-party support available

Product Description

Specifications

1.Application: dust cillector for medical work machine to filtrate laser fume&toxic gas
2.CE Certification

PA-300TS Dust Collector For Medical Work

1. Strict welding and painting technology achieve to high tightness and corrosion resistance cabinet.

2. Specific sound-absorbing materials reduce operating noise to improve operation efficiency.

3. Taiwan brushless blower, new high pressure technology, small size, brushless design & electronic speed adjustment. It can effectively absorb particle and extend filter life of less power.

4. Our Air Filter has PWM speed control, according to the amount of dust to achieve precise adjustment.

5. By the pre-filter, HEPA main filter and the chemical gas filter composed of three parts of our fume extractor's filtration system. The main filter and gas filter package blocked with the metal net, it can effective remove fume and harmful gases in the air to achieve indoor air quality restoration. Also reduce the equipment size, saving floor space.

6. After multi-stage dust filtration, can be directly emitted in the room without expensive & complex exhaust project.

7. The indoor temperature can be stability, and save energy. There is no indoor negative pressure to maintaining the air cleanliness.

8. Air Filter's Fliter Data

Filter Elements Data
Item	Technical Data	Remark
Pre-filter	G4 class	Cotton filter pad
F8 Class Filter	F8 Class medium efficiency filter	Filter can remove 99.997% of all particles above 0.3 microns and 95% down to 0.01 micron.
Main Filter	One side HEPA fiter One side with chemical filter	Chemical molecular, Oxidant & Active carbon adsorb noxious gas.
Average filtration rate	≥99.7%	It will be a little fluctuation according to different materials.

9. Air Filter's Technical Paremeters

Blower Technical Data
Item	Technical Data	Remark
Running period	more than 30,000h	One year guarantee
Max. air flow	300m³/h	Electronic speed control
Input capacity	130W	Low capacity
Air pressure	2500pa	High pressure
Running sound	≤45dBA	Low sound volume
Input power	110/220V, 50Hz/60Hz	International standard

Equipment Data
Item	Technical Data	Remark
Fume & dust inlet	65mm	Single/double fume inlets, include one/two set fume extract tube
Fresh air outlet	100mm	Shutter
Machine weight	16KG(N.W.)	Machine with all elements
Dimension	415255450mm	Machine size
Package dimension	495335530mm	Packed by plywood crate

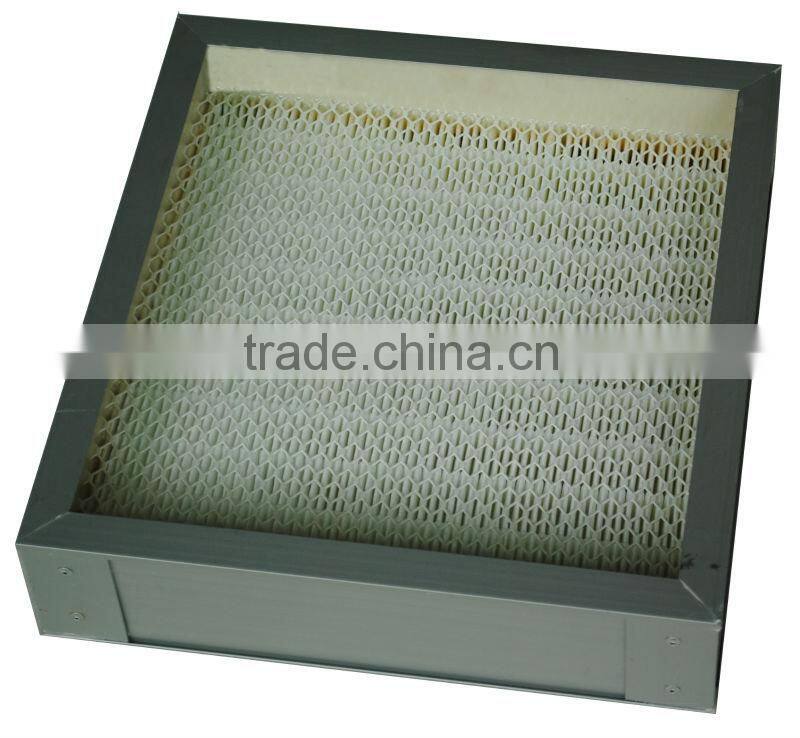

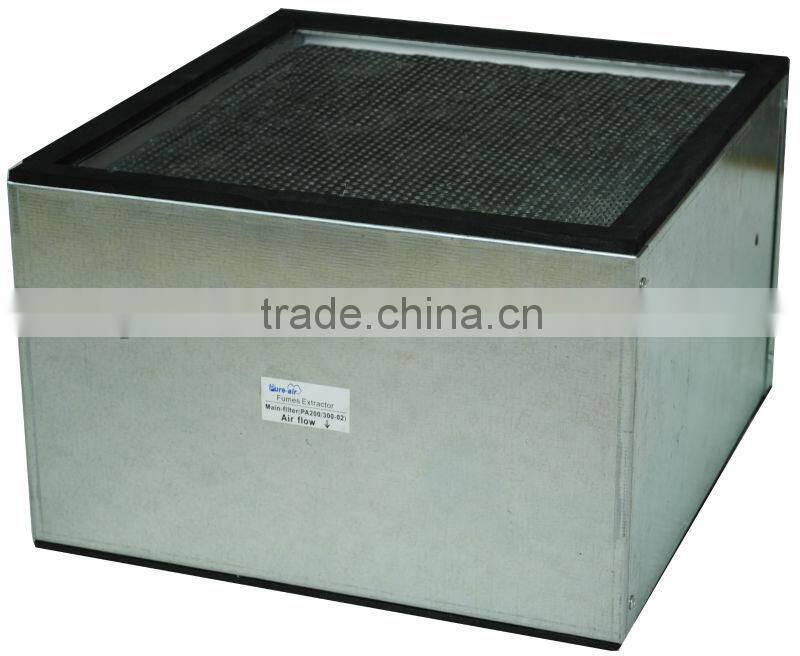

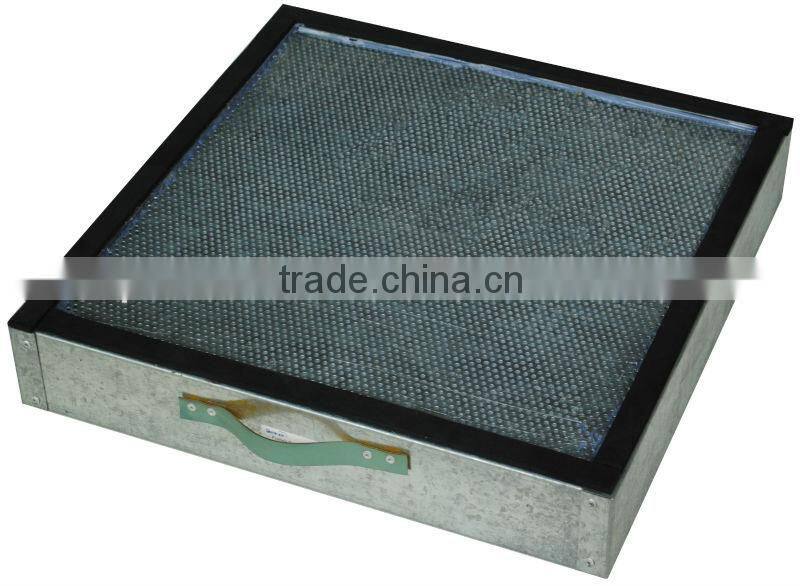

10. Filter Photo
