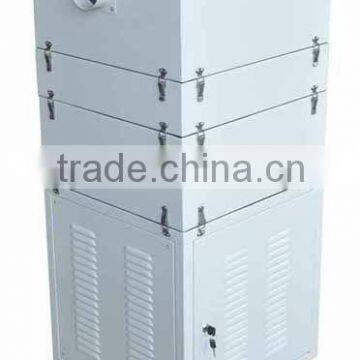

PA-700FS Fume Extraction for Food Packaging

PA-700FS Fume Extraction for Food Packaging thumbnail-1
PA-700FS Fume Extraction for Food Packaging photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Pure-Air
Model Number:
PA-700FS
Contact Supplier Request Quote Chat Now
Dongguan Pure-Air Tech Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Pure-Air
Model Number PA-700FS
After-sales Service Provided Overseas third-party support available

Specifications

PA-700FS fume extraction use on Food, Pharmaceutical & Tobacco industries producing/packing to filtrate fumes, powder & toxic ga

PA-700FS fume extraction for food packaging

1. Strict welding and painting technology achieve to high tightness and corrosion resistance cabinet.

2. Specific sound-absorbing materials reduce operating noise to improve operation efficiency.

3. China blower, high pressure, low noise. It can effectively absorb particle and extend filter life of less power.

4. PA-700FS filtration system consist of four parts, they are metal filter, F5 class pre-filter, HEPA main filter and gas filter.

(a). Well-proportioned holes to ensure that large dust particles are trapped on the metal filter, to prevent them block the pre-filter.

(b). F5 class pre-filter comprised by cotton and metal mesh, full-thickness adhesive, can be adsorbed middling particles in the air to avoid main filter is blocked.

(c). Main filter consists of efficient HEPA element, in independent tests, these filters remove 99.997% of all particles above 0.3 microns and 95% down to 0.01 micron.

(d). Gas filter layer formed by the chemical materials can effectively remove harmful gases and pungent odor in the air.



5. Filter Data

Filter Elements Data
Item
Technical Data
Remark
Pre-filter
F5 class, life-time 1-3 months
PP pre-filter.
Main-filter
H14 class HEPA, life-time 6-10 months
Filter can remove 99.997% of all particles above 0.3 microns and 95% down to 0.01 micron.
Air-filter
Chemical material, life-time 5-6 months
Chemical molecular, Oxidant & Active carbon adsorb noxious gas.
Average filtration rate
≥99.7%
It will be a little fluctuation according to different materials.



6. Technical Paremeters

Blower Technical Data
Item
Technical Data
Remark
Running period
more than 10,000h
One year guarantee
Max. air flow
700m³/h
/
Input capacity
550W
Low capacity
Air pressure
2000pa
High pressure
Running sound
≤60dBA
/
Input power
110/220V, 50/60Hz
International standard





Equipment Data
Item
Technical Data
Remark
Fume & dust inlet
100mm
Single fume inlets, include one fume extract tube
Fresh air outlet
/
Trapezoid hole
Machine weight
90KG (N.W.)
Machine with all elements
Dimension
500*520*1200mm
Machine size
Package dimension
600*650*1400mm
Packed by plywood crate
