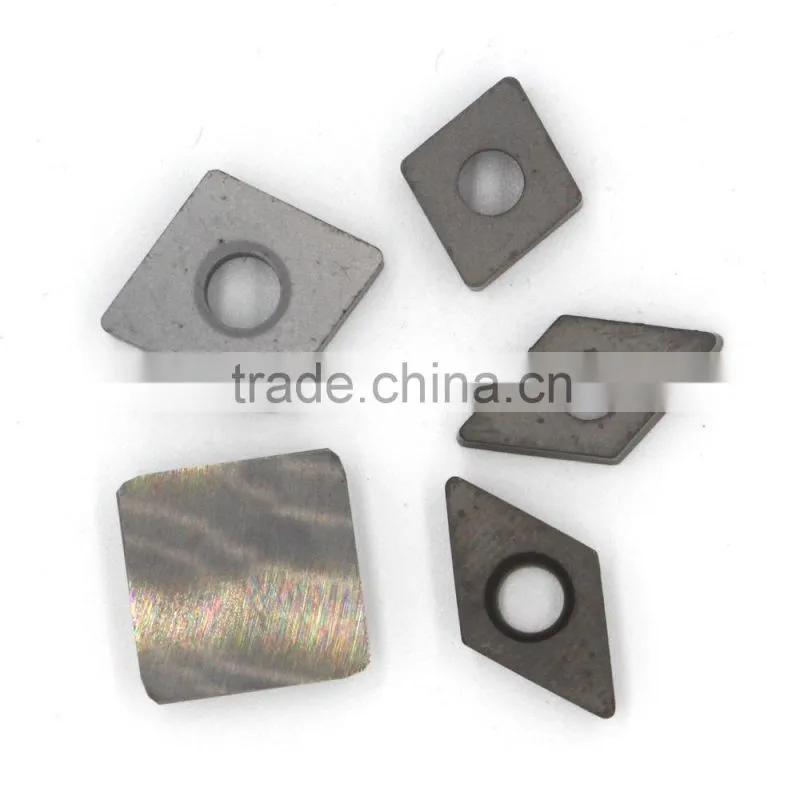

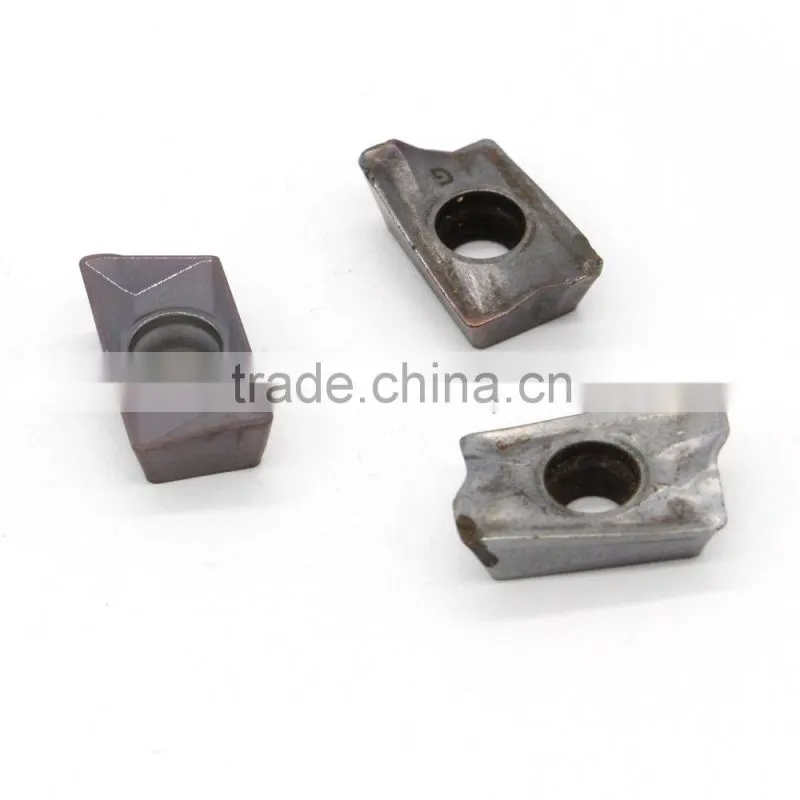

Non-standard Saw Tips Blades
Specification:
♦ High quality best price
♦ High tolerance
♦ Wear resistance
♦ Perfect after-sale service.
Grade |
Equal to ISO Category Number |
Performance |
uses |
||
Density |
Bend Strength |
Hardness |
|||
G/Cm3 |
N/mm2 |
HRA |
|||
YG3 |
K01 |
14.9-15.3 |
≥1180 |
≥90.5 |
sand-blasting nozzlesQualified for fine turning and half-fine turning when cast iron, non-ferrous metal, alloys as well as non-alloy materials cutting consecutively. Can make wire drawing of steel and non-ferrous metal. Also qualified for sand-blasting nozzles. |
YG3X |
K01 |
15.1-15.4 |
≥1300 |
≥91.5 |
|
YG6X |
K10 |
14.8-15.1 |
≥1560 |
≥91.0 |
Qualified for machining of chilled cast iron, alloy cast iron, refractory steel and alloy steel. Also Qualified for the machining of common cast iron. |
YG6A |
K10 |
14.7-15.1 |
≥1580 |
≥91.0 |
|
YG6 |
K20 |
14.7-15.1 |
≥1670 |
≥89.5 |
Qualified for finish machining and semi-finish machining for the cast iron, non-ferrous metal, alloy and unalloyed materials. Also qualified for wire drawing for the steel and non-ferrous metal, electric drill for geology use and steel drill etc. |
YG8 |
K20-K30 |
14.6-14.9 |
≥1840 |
≥89 |
Qualified for rough machining of cast iron, non-ferrous metal, nonmetal materials, drawing of steel, non-ferrous metal and pipes, various drills for geology use, tools for machine manufacture and wearing parts. |
YT15 |
P10 |
11.1-11.6 |
≥1180 |
≥91.0 |
Qualified for rough machining, semi-finish machining and finish machining during consecutive machining of carbon steel and alloy steel. |
YT14 |
P20 |
11.2-11.8 |
≥1270 |
≥90.5 |
Qualified for rough machining for rough face of carbon steel and alloy steel, half process during discontinuity cutting. |
YT5 |
P30 |
12.5-13.2 |
≥1430 |
≥89.5 |
Qualified for rough machining for rough face of carbon steel and alloy steel and discontinuity cutting. |
YW1 |
M10 |
12.7-13.5 |
≥1180 |
≥91.5 |
Qualified for finishing and semi-finishing machining of refractory steel, high manganese steel and common steel. |
YW2 |
M20 |
12.5-13.2 |
≥1350 |
≥90.5 |
Qualified for semi-finishing machining of refractory steel, high manganese steel and common steel. |
Our Service
Free sample is availabe
♦ We can send you some of our products for you reference which is free.
OEM & ODM service
♦ You give us your requirements and specifications and we can make the product as you required.
♦ We can also help you to design the products.
Good After-sale Service
♦ We guarantee that all the products we send out are qualified products, if there is any quality problem we'll remake them for you.
Good On-line Service
♦ If you have any question, please feel free to contact us, we'll answer to you as soon as possible
For more further information please Click "Send" Now!!
It's our pleasure to provide you good quality products with good price and service always.
