This device is suitable for all types of pipe materials processing pipe welding, ventilation pipe welding, pipe welding production

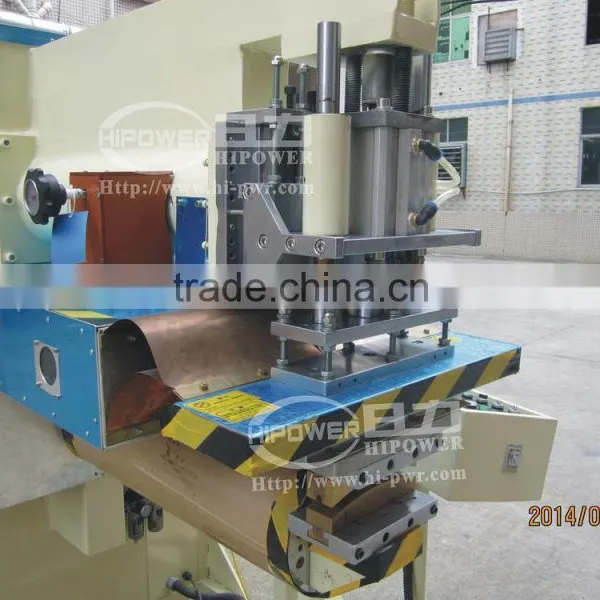

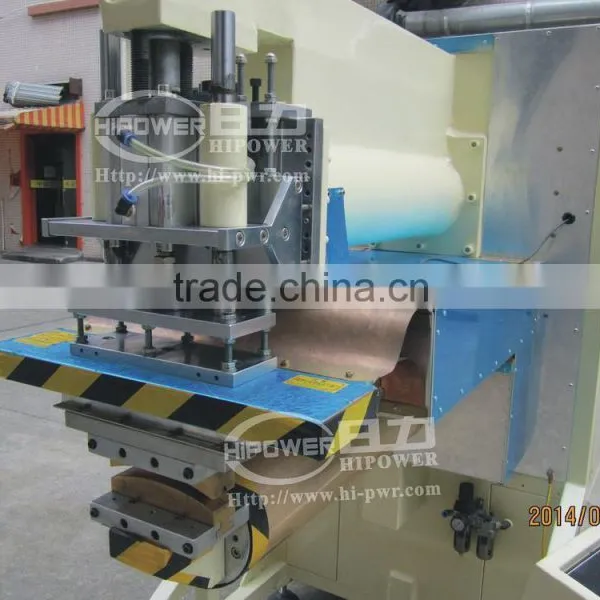

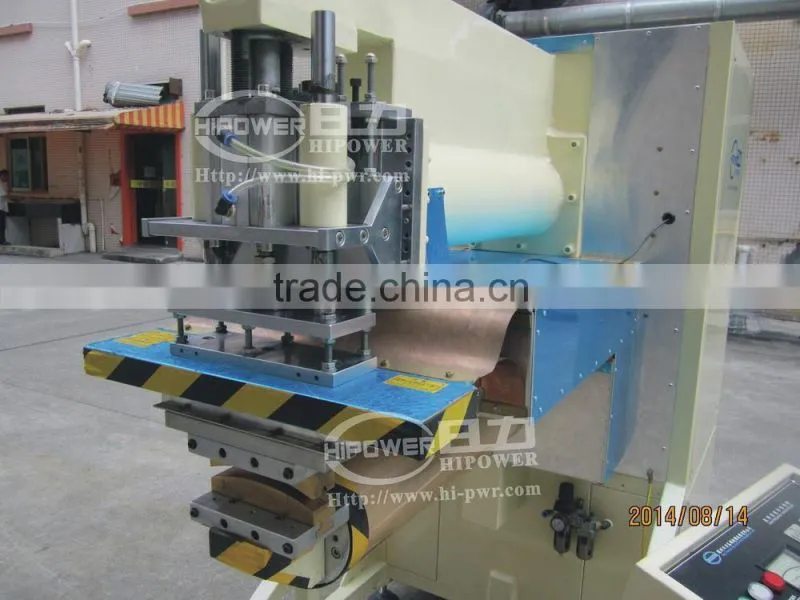

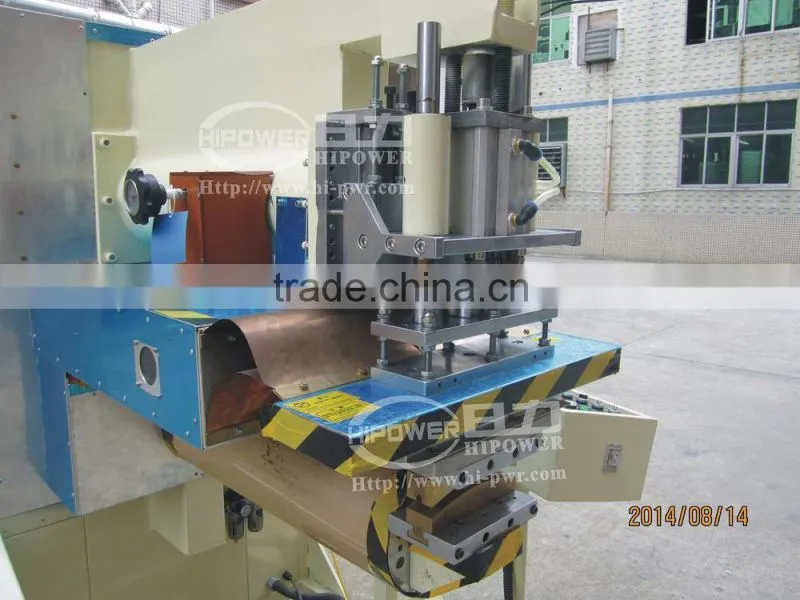

Unique High Frequency Welder for Air Ducts, Flow Channels and Tubing
Main application:
1,Air ducts, Flow channels and tubing
2,Ventilation tubes
3,Round shaped soft PVC channels
4,Safety equipment
5,Zips welding

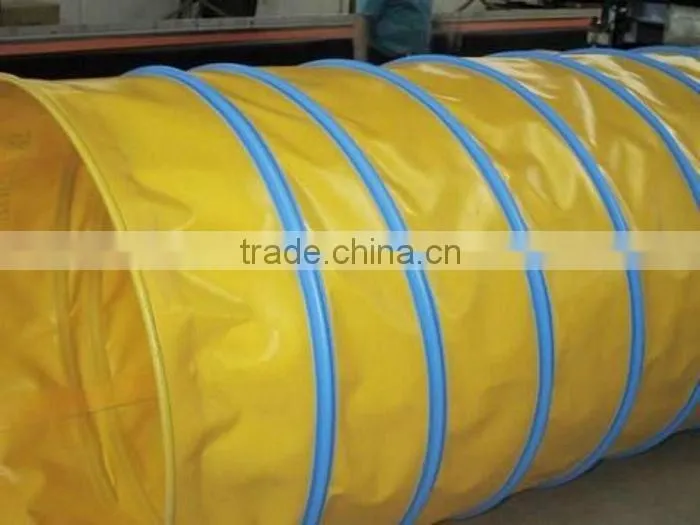

Finished samples by high frequency air ducts welding machines :
FEATURES:
- Universal usage for PVC, PU, PET welding
- Designed especially for ventilation tubes and air ducts production
- Possibility to weld zips and stop curtains
- Easy conversion to straight lines welding
- Space behind the electrode for material placing up to 1200 mm
-
Top and bottom electrodes for high precision of welding
Ergonomic design
Machine's advantage:

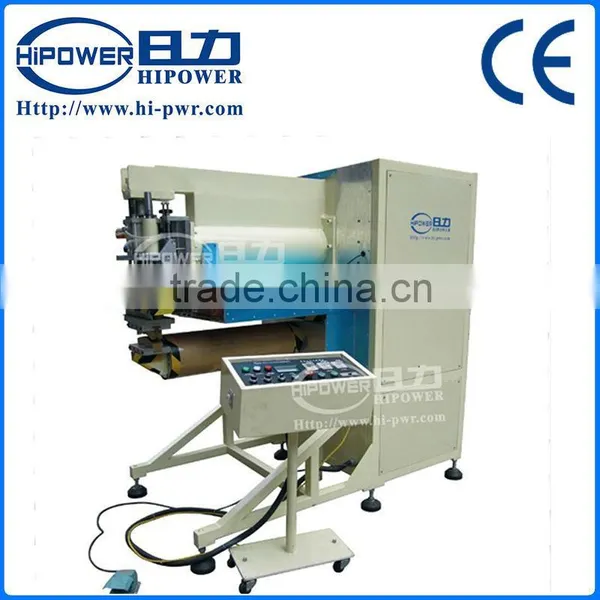

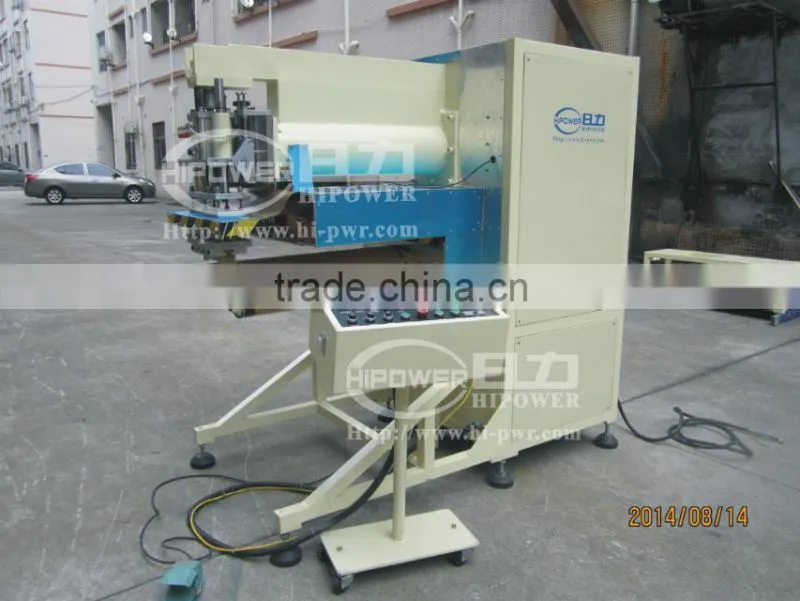

HR-10KW-DWM HF welding machine is a unique solution for the production of different size of ventilation tubes, ducting and other forced air feeding solutions. Due to especially designed two part electrodes we are able to weld various radiuses of round shaped products
The machine can be easily converted to zips and straight lines welding. Large material volumes can be laid out behind the electrode to fulfill high requirements of production
Advantages of our High frequency air ducts welding machine
1. Length, width and radian of welding area can be adjusted by change welding die.
2. European-model square high frequency vibration box, more reliable and stable in output
4. CE rated machine; factory verified by SGS and BV;
5. Customer's site installation, training & maintenance available
6. Double Operator Control Press Pedals – on both sides of machine for ease of access and material positioning during welding of complex shapes of fabric
7. Online service by Email, Fax, Video Online- allowing remote live video servicing of basic setup and repairs through the use of face-to-face online video.
8. Customized work table dimensions, electrode holder dimensions, tooling.
9. Laser Guide Projectors – projecting laser lines
10. High frequency welding press pneumatically operated.

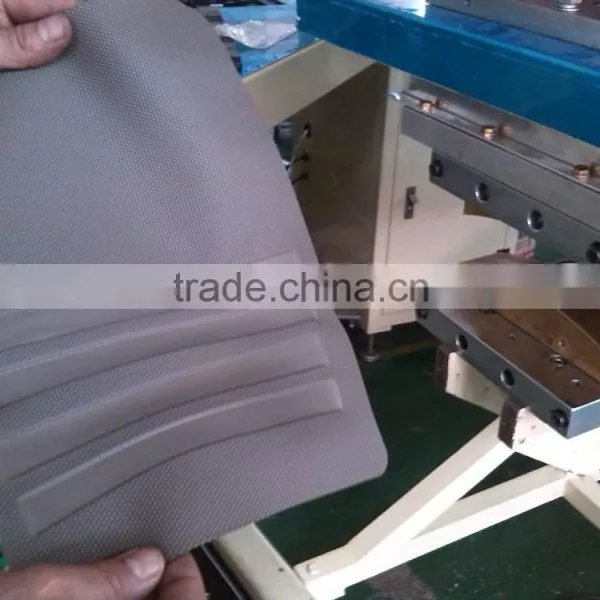

Welding (high frequency air ducts welding machines):
high frequency tarpaulin welding machine
Technical Parameters for High frequency air ducts welding machine
| MODEL: | HR-10KW-DWM | MAXPRESSURE: | 500KG | ||||||||
| POWER: | 10KW | MAX GAP OF ELECTRODES: | 200MM | ||||||||
| POWER SUPPLY: | 220/380V*3P 50/60HZ | SIZE OF ACTIVE HORN: | 160MM | ||||||||
| FREQUENCY: | 27.12MHz | SIZE OF UP ELECTRODE: | 100*200MM | ||||||||
| ELETRONIC POWER: | 18KVA | SIZE OF WORKING PLATE: | 100*200MM | ||||||||
| RECTIFIER: | SILICON DIODE | SCALE OF TEMPERATURE: | 30-200C Adjustable | ||||||||
| VIBRATIONAL TUBE: | E3069 | WELD TIME: | 0-10s Adjustable | ||||||||
| DRIVEN MODE: | PNEUMATIC | WELDING SURFACE: | 100CM2 | ||||||||
The parameters just for your reference, can be made as your requests.

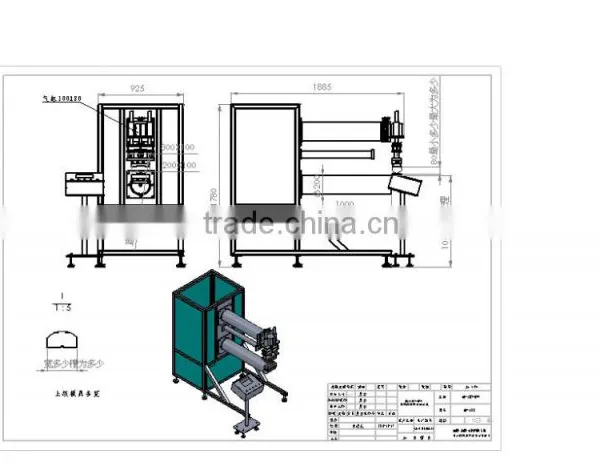

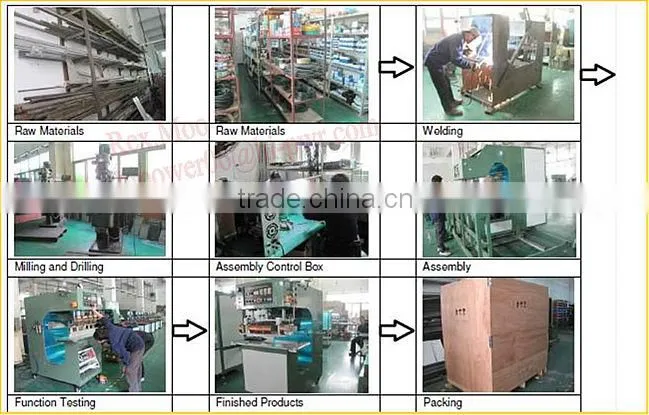

Manufacturing process review:
high frequency tarpaulin welding machine
Standard Accessories:
We use Ply-wood case for packing machines, it will meet export standard like safty, protection requirment and
durable performance in long time shipping by sea or by air.
We can provide non-solid wood packing decleartion, our packing no need fumigation.
1. Customer's site installation, training & maintenance available
2. 12-24 hours Online service by Email, Fax, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Recommend equipment of top choice based on your requirements for product;
5. Examining mold drawings on your behalf to confirm optimum structure size meeting high frequency process;
6. Providing assistance in manufacturing and modifying tools;
7. Our engineering instruction will guarantee your productive manufacturing of top-quality products.
Who We Are:
Since 2000, Shenzhen Hipower Ltd, concentrates on highest quality, on-time delivery, professional technology
support, customer-oriented service and competitive price.
Where Are our Customers:
Our products are mainly exported to Asia, North America, South America, Europe and Africa, and etc....
What we do and Why Us:
Hipower is at the forefront of newest technical developments in the field of high frequency and ultrasonic
welding technology,automation of production processes and other innovative industrial solutions.

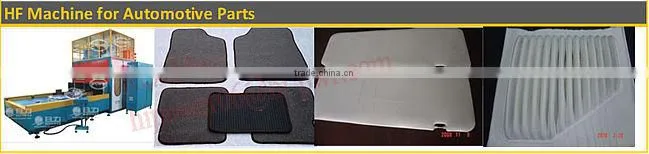

Our equipments are widely used in industrial application like: Automotive Parts, Stationery, conveyor belts

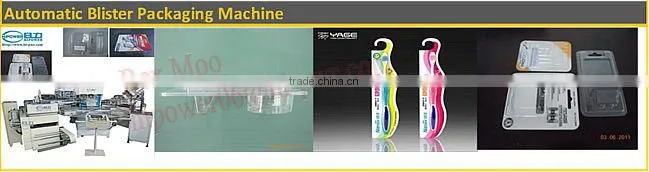

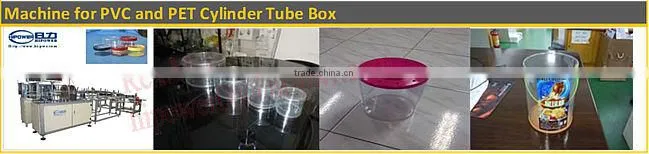

Tarpaulin, Big Covers,Tents products, Tensile structure, Medical Bags, Blister Packaging, Cylindrical Box,
and other plastic welding industries.
All machines are completely safe for the operator and fully comply with CE regulations.
Questions 01. How Do You Pack the machines?
RE: Our machines will be packed into wood case, (we will process the wood case and make sure it is exporting
standard, and no need addtional fumugation)
Questions 02. Is it difficult to install the machine ?
RE: For standard small machines, the machines will be packed with no take apart, it comes to you to be a
complete machine;
you just need to connect power and compressed air to machine, then begin to operate the machine.
For large size machines, we will take the machine apart, on condition that we do our best to keep the machine
easy to assembly.
You will get install videos, and install instructions from us.
It will be an ABC thing to install machines at your side.
Questions 03. How Does Customer Use the machines?
RE: We will provide you operation manual and diagram of machine in English.
For automatic machine and custom machine, we will provide operation videos to you.
Questions 04. Does the machine need compressed air ?
RE: Generally speaking, if your factory with compressed air source, then connect to machine.
If not, please buy a 2Psi -5 Psi air compressor.
If customer request to use Hydraulic pressure, please inform us when put an order.
Questions 05. Does the machine power voltage meet buyers' factory power source?
RE: We can make machine with voltage like:
frequency: 50 - 60HZ Phases: single phase / 3 phases
Voltage: 110V / 220V / 380V/ 415V/ 440V / On request
Please kindly inform us what frequency/phases/voltage you want, when you put order to us.
Questions 06. Could you make die / mould for me, if I buy machine from you?
RE: We design and make moulds up to product sample or drawings, we charge the mould price at facory cost price.
Questions 07. Can I visit you factory to check machines on-site ?
RE: We are manufacturer, and we welcome customers to visit our factory.
We located in Shenzhen, China; you may come to us by following:
a) Via. Hongkong to Shenzhen :
please reach check points between Hongkong and Shenzhen, we will arrange to pick you up from Check-point
like Shekou, Lohu
b) Via. Guangzhou to Shezhen;
you may come by train to Shenzhen Luohu Station / Shenzhen North Railway Station.
we will arrange to pick you up from station.
c) Via. Shenzhen Airport :
Please inform us your flight number and contact information before you come, we will meet you at airport.
Questions 08. What Should I bring when I visit your factory?
RE: For special product design and develop, we request you bring a piece of testing material, you can test
on our machines on-site.
For common product, it is enough to show us product pictures or drawings.
CE certificates,other certificates can be made case by case:
high frequency tarpaulin welding machine

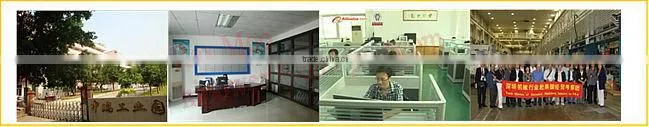

Factory review
high frequency tarpaulin welding machines
Welcome to contact us for further information about our high frequency (RF) tarpaulin welding machines,
working videos can be provided for your reference!
