Specifications
PVC duct welding machineOEM/ODM
Power:10KW ; Frequency :27.12KHz
High Frequency Welder for Air Ducts
Application of this machine :
It is especially designed for HF welding of Air ducts, Flow channels and tubing,
Ventilation tubes,Round shaped soft PVC channels,Safety equipment,Zips welding etc.
Applied of Range:

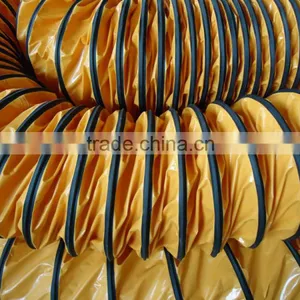

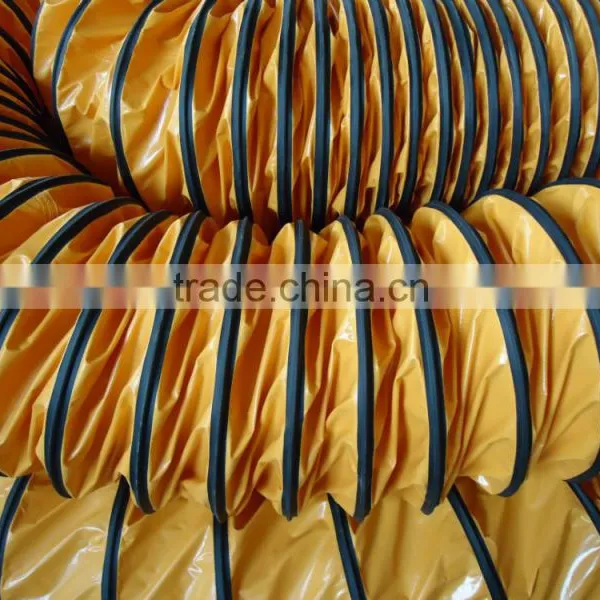

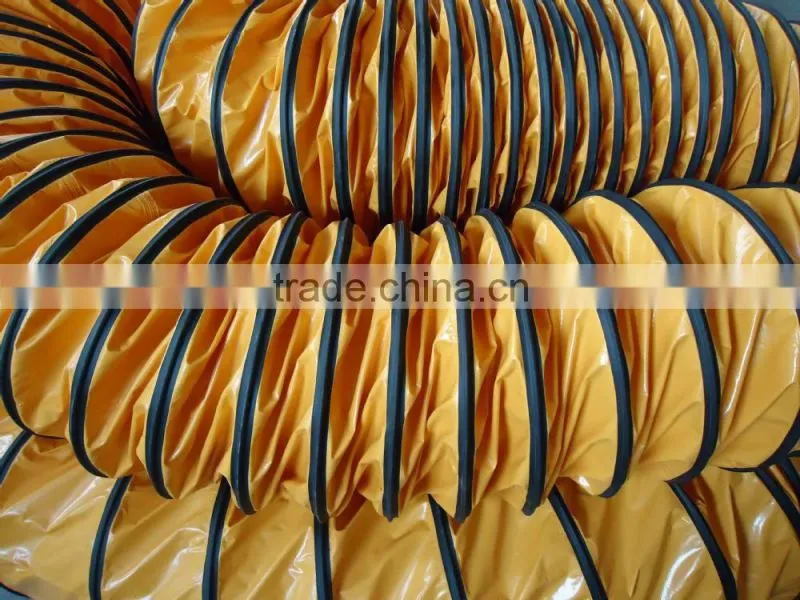

1>.air duct s
2>. flow channels and tubing

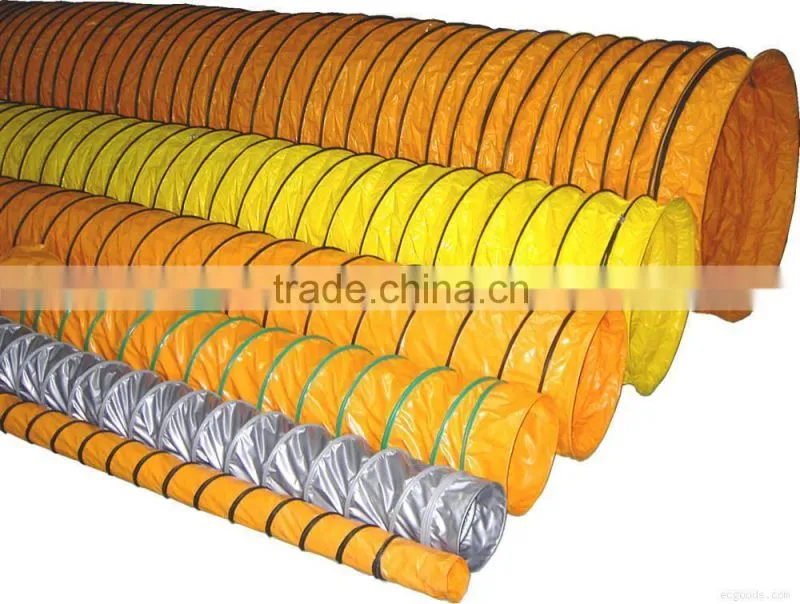

3>. ventilation tubes,
4>. round shaped soft pvc channels
5>. safety equipment

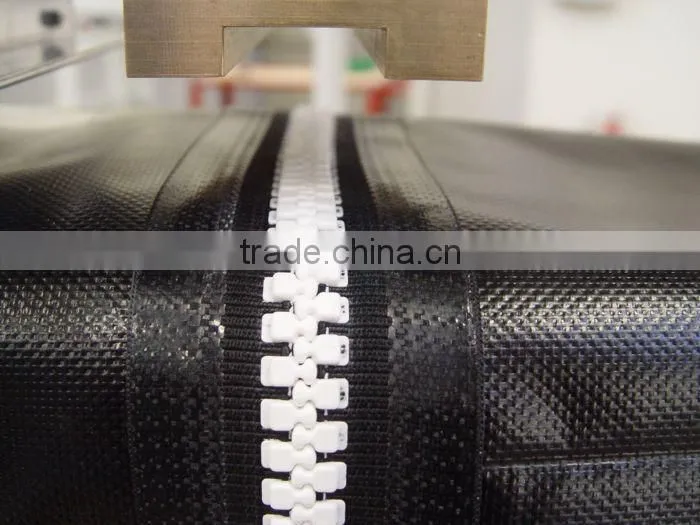

6>.zip welding
High Frequency Welder for Air Ducts
Machine General Features:
Universal usage for PVC, PU, PET welding
Designed especially for ventilation tubes and air ducts production
Possibility to weld zips and stop curtains
Easy conversion to straight lines welding
Space behind the electrode for material placing up to 1200 mm
Top and bottom electrodes for high precision of welding
Ergonomic design
High Frequency Welder for Air Ducts

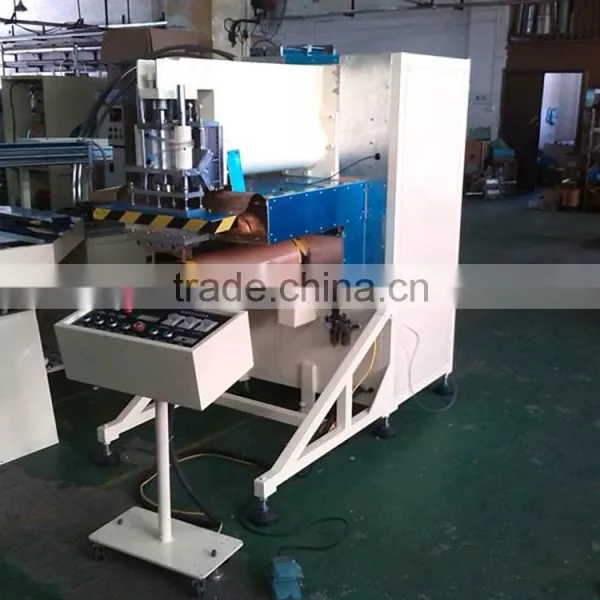

Machine introduction:

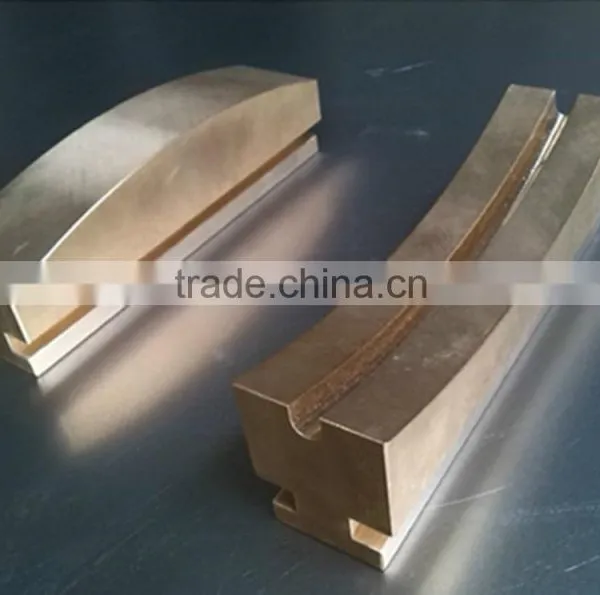

HR-10KW-DWM HF welding machine is a unique solution for the production of different size of ventilation tubes, ducting and other forced air feeding solutions. Due to especially designed two part electrodes we are able to weld various radiuses of round shaped products .
The machine can be easily converted to zips and straight lines welding. Large material volumes can be laid out behind the electrode to fulfill high requirements of production.
Technical Specification:
MODEL |
HR-10KW-DWM |
SIZE OF ACTIVE HORN |
100MM |
POWER |
10KW |
SIZE OF UP ELECTRODE |
300*400MM |
POWER SUPPLY |
220V/380V 50/60HZ |
SIZE OF DOWN ELECTRODE |
300*400MM |
FREQUENCY |
27.12MHZ |
RANGE OF TEMPERATURE |
30-200C Adjustable |
INPUT POWER |
18KVA |
WELDING TIME |
0-10S Adjustable |
RECTIFIER |
SILICON DIODE |
PRODUCTIVITY |
8TIMES / min |
OSCILLATION TUBE |
E3069 |
NET WEIGHT |
1200KG |
MAX PRESSURE |
500KGS |
WELDING SURFACE EACH WORK CYCL MAX |
280CM² |
MAZ GAP OF ELECTRODES |
200MM |
THE DISTANCE OF THE ARM |
800MM |

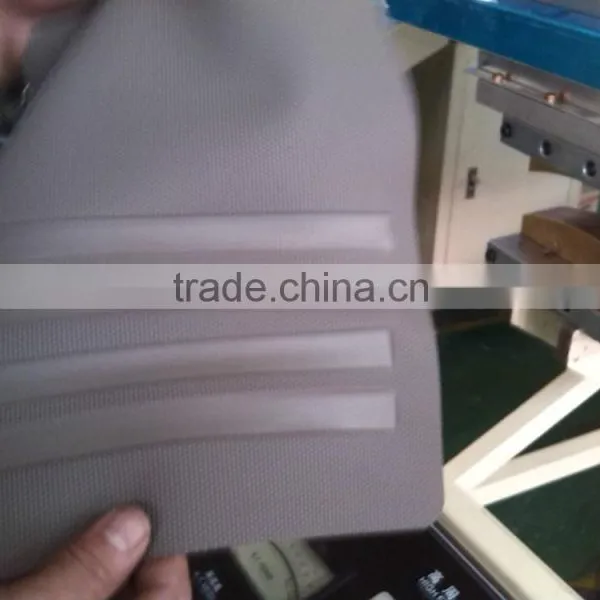

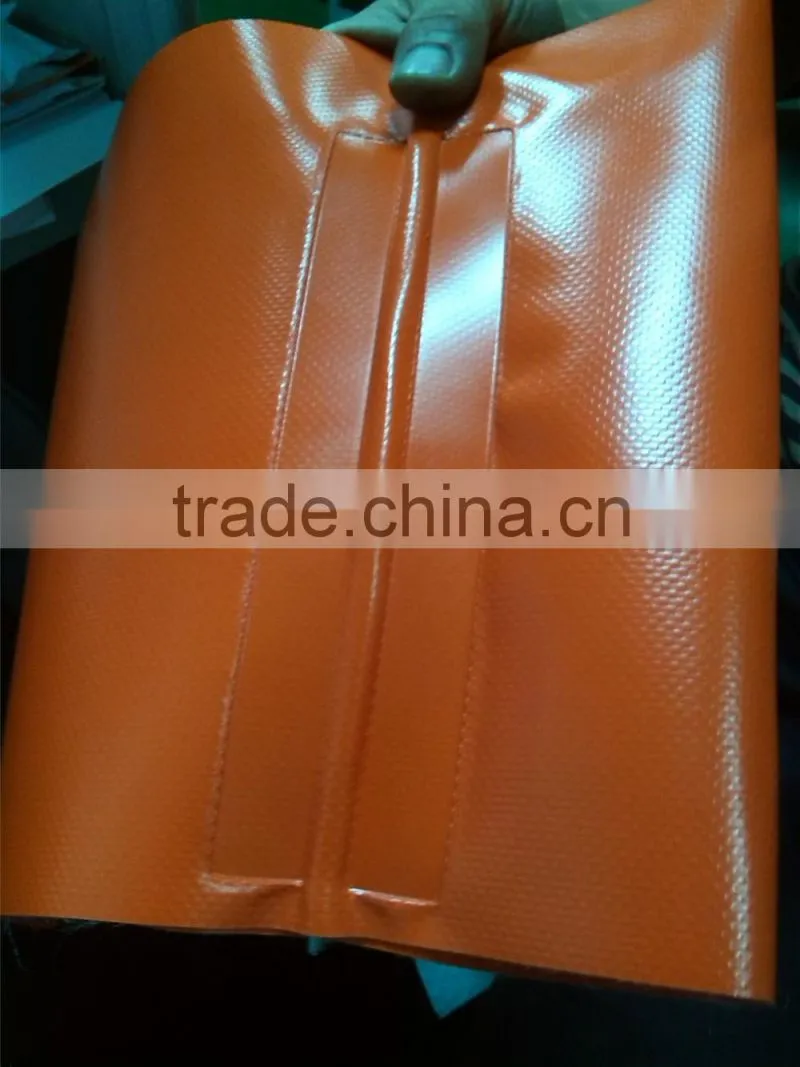

Welded sample view
2. 12-24 hours Online service by Email, Fax, Video Online for basic setup and repairs
3. 12 months warranty for machine, life-long tech. support
4. Recommend equipment of top choice based on your requirements for product;
5. Examining mold drawings on your behalf to confirm optimum structure size meeting high frequency process;
6. Providing assistance in manufacturing and modifying tools;
7. Our engineering instruction will guarantee your productive manufacturing of top-quality products.
Hipower offers a total solution for our customers’ production. This means that our relationship with our customers does not end when the machine is delivered! We are there for you throughout the entire service life of the machine. It is our goal for the machine you invested in to live up to your expectations in the best possible way.
high frequency welding machine for welding PVC duct

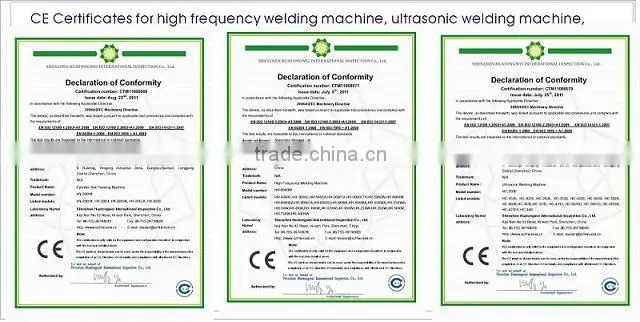

CE Certificated:
1>the product with one year warranty,during the warranty period,any problem comes of the machine itself, Hipower will replace the spare parts free, buyer can also deliver the machine to Hipower to repair, all the freights be in buyer's side.
2) Is custom machine available or not?
Yes, first we will design the machine according to the customer's requirements.after checking Hipower will set to make the machine.
customer also can provide design and drawing of the machine, Hipower will make the machine according to the design provided.
